Cavo di rete LANBERG LCF5-11CC-0305-S Cat5e F/UTP, 24 AWG CCA, 305 m, grigio

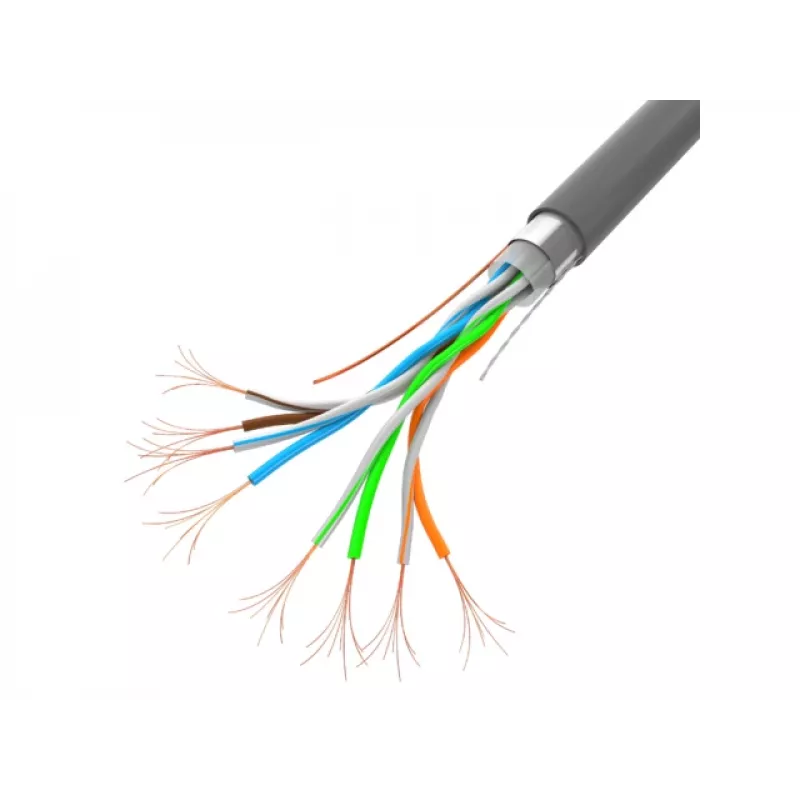

The Lanberg LCF5-11CC-0305-S is a Cat5e F/UTP LAN cable supplied on a 305 m cardboard reel. It uses copper-clad aluminium (CCA) stranded conductors in 4 pairs (AWG 24) with printed meter markings, grey RAL7035 outer jacket and PVC outer diameter of 5.6 mm. The cable is designed for short-distance network installations and supports frequencies up to 100 MHz.

Advantages

The cable combines Cat5e performance with F/UTP shielding to reduce external interference. Stranded AWG24 conductors and meter markings on the sheath simplify handling and installation. A compact cardboard reel and standard grey colour allow neat routing and visible length measurement during deployment.

Suitable for

• Short-distance Ethernet wiring in offices and homes
• Patch panels and horizontal cabling within floors
• Local area network segments where flexible cable is required

Key specifications

• Standard: Cat5e, F/UTP (shielded pairs)
• Length: 305 m
• Conductor: CCA (copper-clad aluminium), stranded, AWG 24 (4×2×0.2 mm)
• Conductor insulation (HDPE): 0.93 mm
• Outer insulation (PVC): Ø 5.6 mm
• Colour: Grey (RAL7035)
• Printed length counter: every 1 m
• Frequency: up to 100 MHz
• Conductor resistance (max, 305 m): 30–45 Ω
• Insulation resistance (min): 5000 MΩ·km
• Pair-to-ground capacitance: < 330 pF/100 m
• Characteristic impedance: < 100 Ω (±15)
• Working distance: 80–120 m
• Operating temperature: -20 to 70 °C; transport/storage: 0 to 60 °C

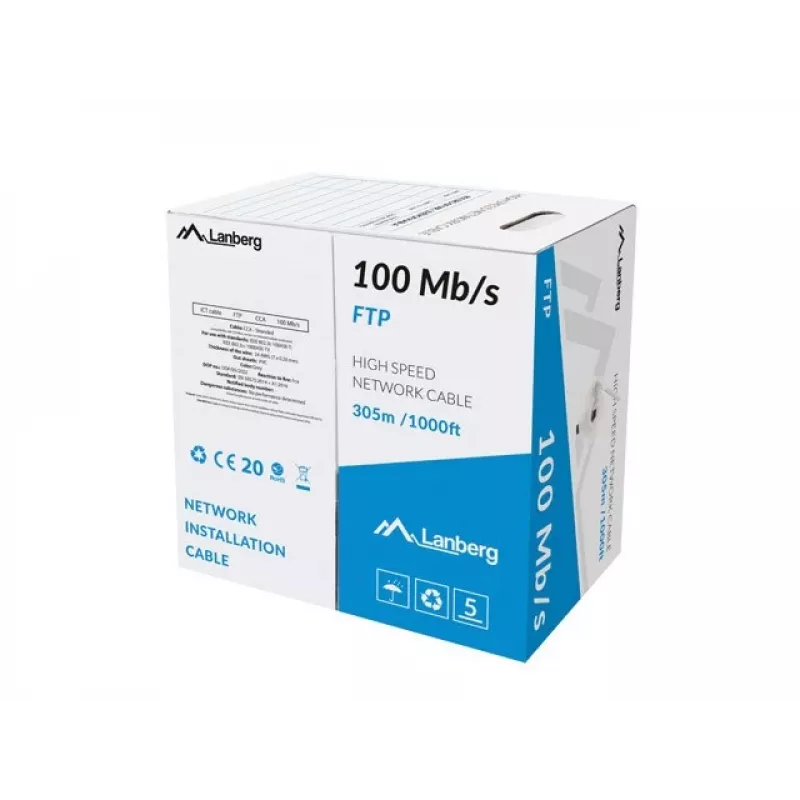

• Package: cardboard box (36×23×36 cm)

How to use

Measure and route the cable from the distribution point to the termination points, using the printed meter markings to control length. Terminate on appropriate RJ45 connectors or patch panels designed for Cat5e; follow the wiring scheme (T568A or T568B) and ensure the shield/grounding is installed where required for F/UTP. Avoid tight bends, excessive pulling force and prolonged exposure to temperatures outside the specified range.

Recommendations

Intended for short-distance LAN installations; Fluke certification is not confirmed, so verify channel performance with appropriate testing equipment if required for critical links.
