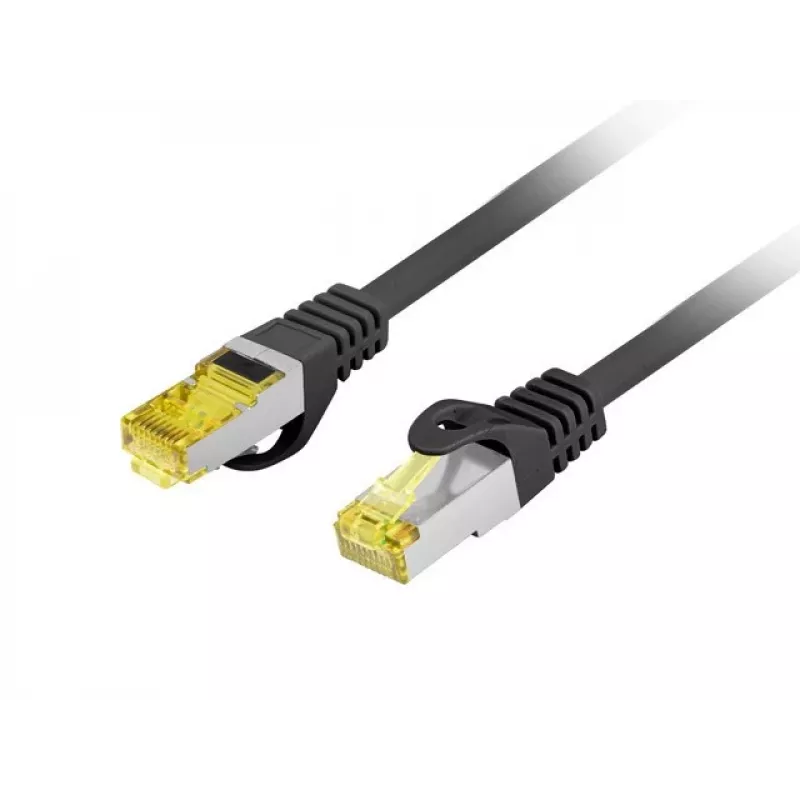

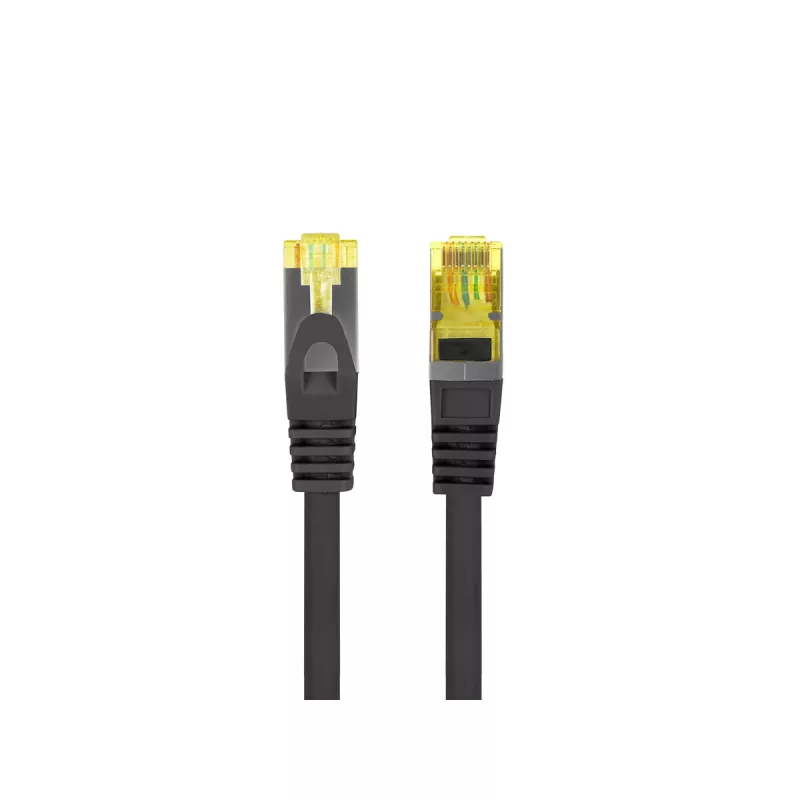

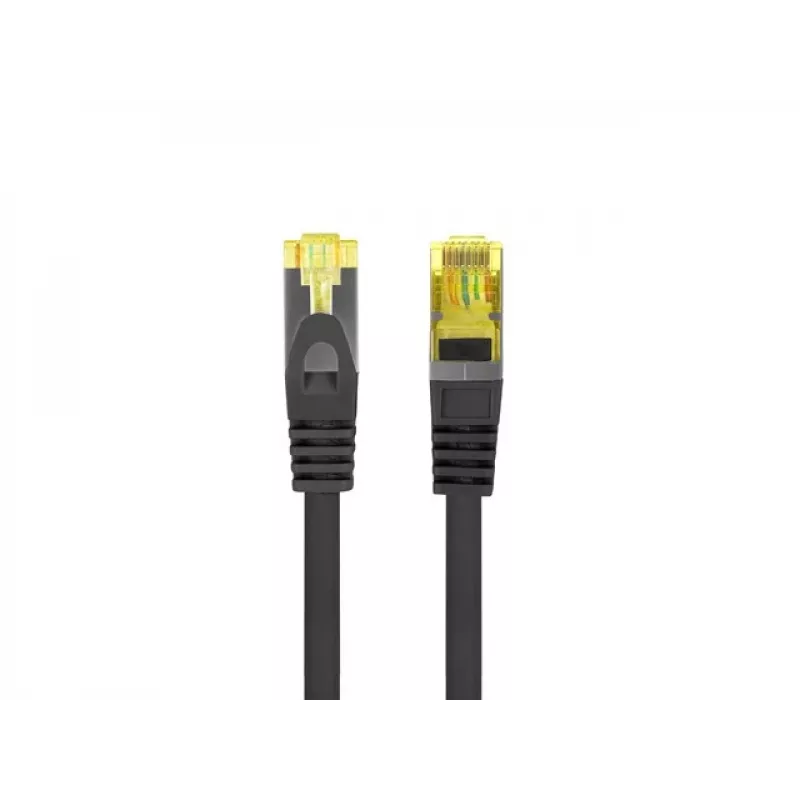

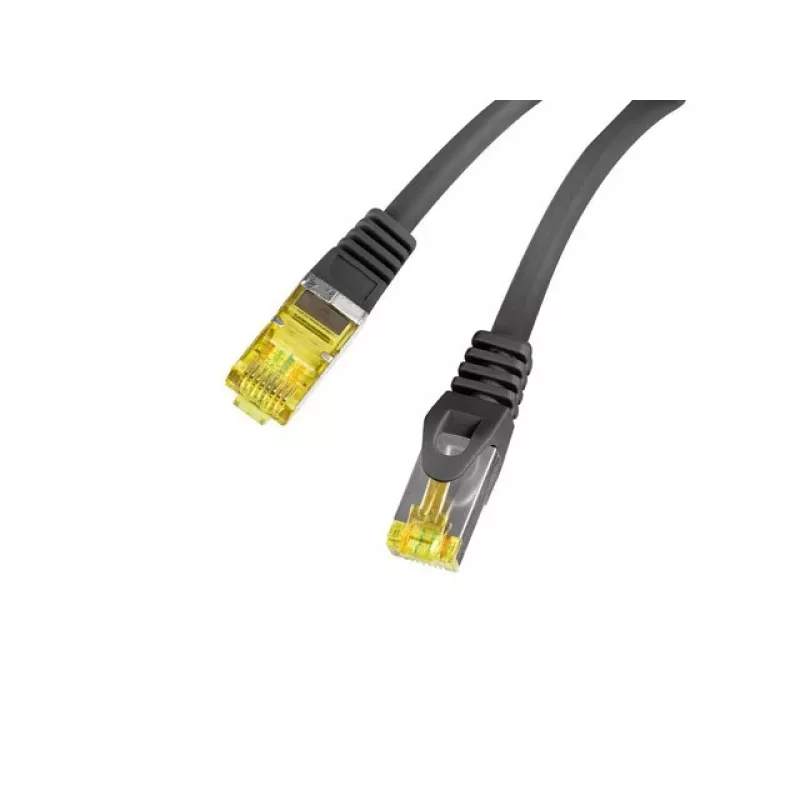

Cavo di rete Lanberg PCF6A-10CU-0025-BK RJ45 Cat6a 0,25m nero

Patch cable Category 6A, S/FTP shielding, 0.25 m length, designed for high-speed Ethernet up to 10 Gb/s and frequencies up to 500 MHz. The cable uses 27 AWG copper conductors (7 x 0.135 mm) with a 100% copper core and an LSZH outer jacket in black (RAL9004). Constructed to meet ISO/IEC 11801 Class Ea and compatible with ANSI/TIA/EIA-568-B standards.

Advantages

The S/FTP shielding (braid plus foil on each pair) provides improved protection against electromagnetic interference. LSZH jacket reduces smoke and halogen emissions in case of fire, increasing safety in confined or public spaces. Short 0.25 m length is suitable for tidy patching in server racks or between closely spaced devices. Supports bandwidth up to 500 MHz and data rates up to 10 Gb/s, meeting modern network requirements.

Key specifications

• Teleinformation category: 6A
• Shielding type: S/FTP (braid + each pair foiled)
• Length: 0.25 m
• Wire gauge: 27 AWG (7 x 0.135 mm)
• Outer diameter: 6.0 mm ±0.2 mm
• Conductor material: Copper, 100% CU
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Color: Black RAL9004
• Frequency range: up to 500 MHz
• Bandwidth: up to 10 Gb/s
• Standards: Compatible with ANSI/TIA/EIA-568-B
• Certification: Meets ISO/IEC 11801 Class Ea

How to use

Use this Cat6A S/FTP patch cable to connect network devices such as switches, patch panels, routers and servers within racks or at short distances between devices. Ensure connectors are properly terminated and routed to avoid excessive bending; observe the minimum bend radius recommended by the equipment manufacturer. Because of the short length, the cable is intended for patching in close-proximity setups rather than long runs.

Recommendations

For optimal performance, avoid sharp bends and electromagnetic sources when routing the cable. Verify compatibility of connectors and shielding with your equipment, and use in installations where LSZH properties are required for safety.
