Cavo di rete Lanview LVN122151 nero 305 m Cat6 U/UTP UTP 10000 Mbit/s

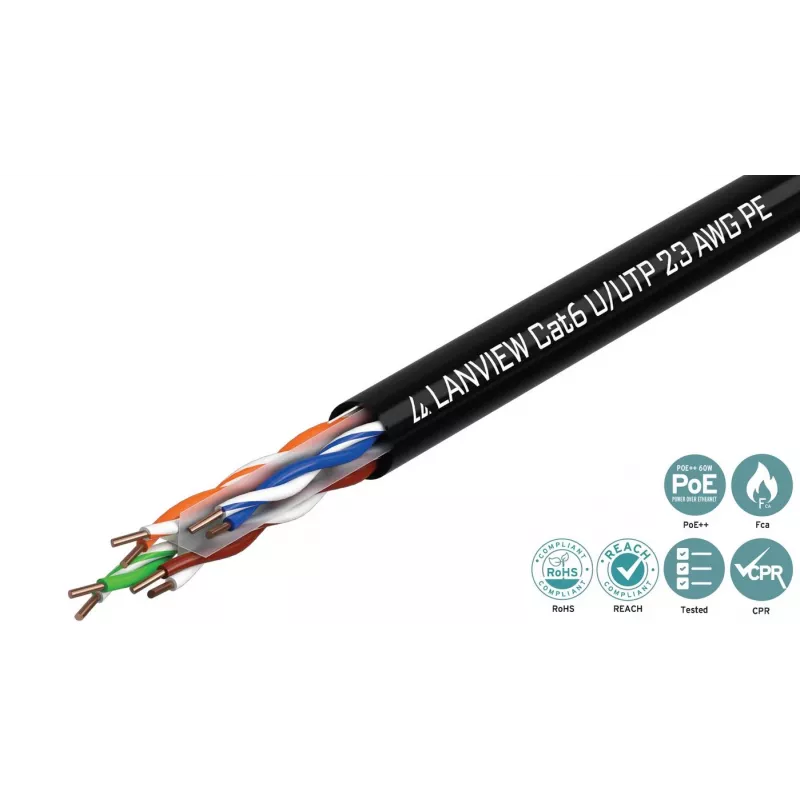

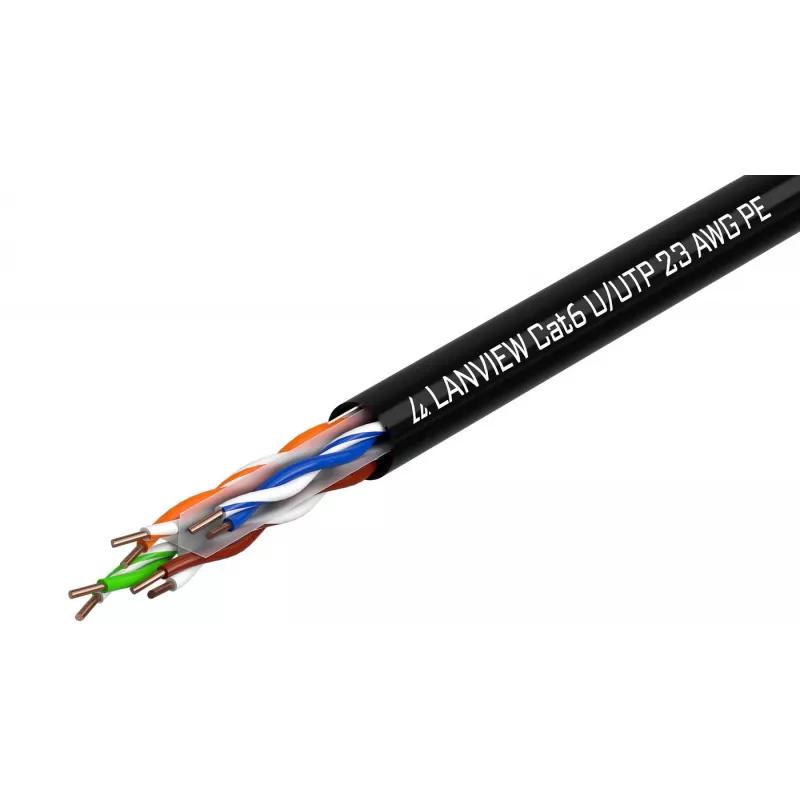

Lanview LVN122151 is a Cat6 U/UTP networking cable, 305 m long and designed for structured cabling systems to transmit telecommunications and high-speed data. The cable contains four pairs (4x2) of color-coded PE-insulated conductors and is suitable for installations that require compliance with international wiring standards.

Advantages

This Lanview Cat6 unshielded PE cable is manufactured and tested to ISO/IEC 11801, EIA/TIA 568B and EN50173-2 standards, providing consistent performance for Ethernet networks. The U/UTP construction minimizes external interference while maintaining flexibility for routing, and the 305 m reel length supports long runs without splicing.

Suitable for

• Structured cabling in offices and data centers
• Ethernet networks up to Cat6 performance
• High-speed data and telecommunications links
• Horizontal and backbone cabling runs

Key specifications

• Manufacturer: Lanview
• Model / MPN: LVN122151
• EAN: 5704174522508
• Type: Cat6 U/UTP (unshielded twisted pair)
• Length: 305 m
• Conductors: 4 x 2 color-coded PE insulated
• Standards: ISO/IEC 11801, EIA/TIA 568B, EN50173-2
• Maximum data rate: up to 10000 Mbit/s
• Colour: Black

How to use

Install the Lanview Cat6 cable following standard cabling practices: route the cable through appropriate conduits or trays, avoid sharp bends and sources of electromagnetic interference, and terminate on compatible RJ45 jacks or patch panels according to the EIA/TIA 568B pinout. Test each run with suitable certification or verification tools to ensure the channel meets required performance.

Recommendations

For best results, maintain proper separation from power lines, keep bend radius above the manufacturer’s recommendation, and use quality connectors and patch panels rated for Cat6. Use a cable tester or certifier after installation to verify throughput and compliance with standards.
