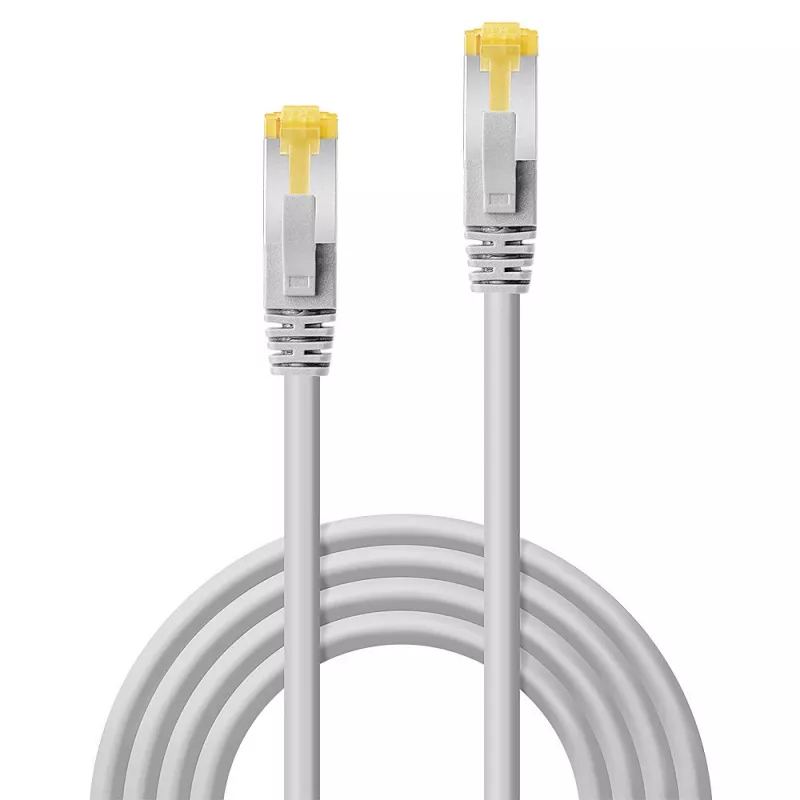

Cavo di rete Lindy 20 m RJ45 S/FTP LSZH Cat7 grigio

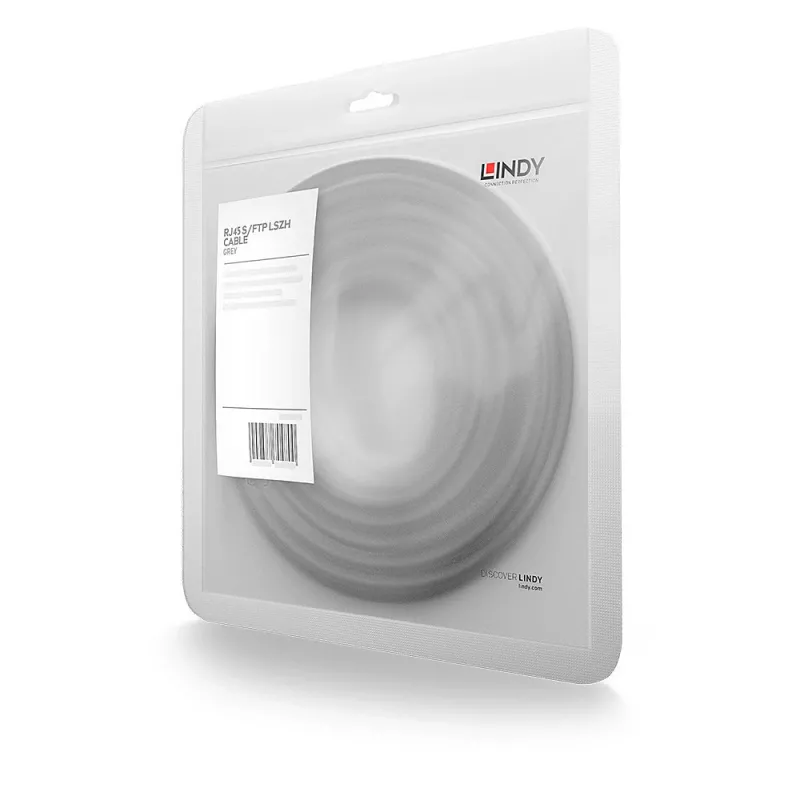

Cat.7 S/FTP LSZH network patch cable with RJ45 (Cat.6A) connectors, 20 m length, grey. The cable supports operating frequencies up to 600 MHz and is suited for high-speed Ethernet up to 10GBase-T. It features full braided shielding with individual foil shielding per pair (S/FTP), gold-plated contact pins and an integrated snagless strain relief to protect the connector latch. Manufactured and tested to ISO/IEC 11801 and supplied individually in a polybag.

Advantages

The cable construction (Cat.7 S/FTP) provides strong protection against electromagnetic interference and crosstalk while the gold-plated RJ45 contacts deliver reliable conductivity and resistance to corrosion. The integrated snagless design reduces the risk of damaging the connector latch during installation and removal. The LSZH sheath limits smoke and toxic gas emissions in case of fire.

Suitable for

• Data centres and server rooms
• Rack-mounted network and control cabinets
• High-speed Ethernet connections up to 10GBase-T
• Structured cabling installations requiring low-smoke zero-halogen sheaths

Key specifications

• Cable standard: Cat.7 S/FTP (braided shield + foil per pair)

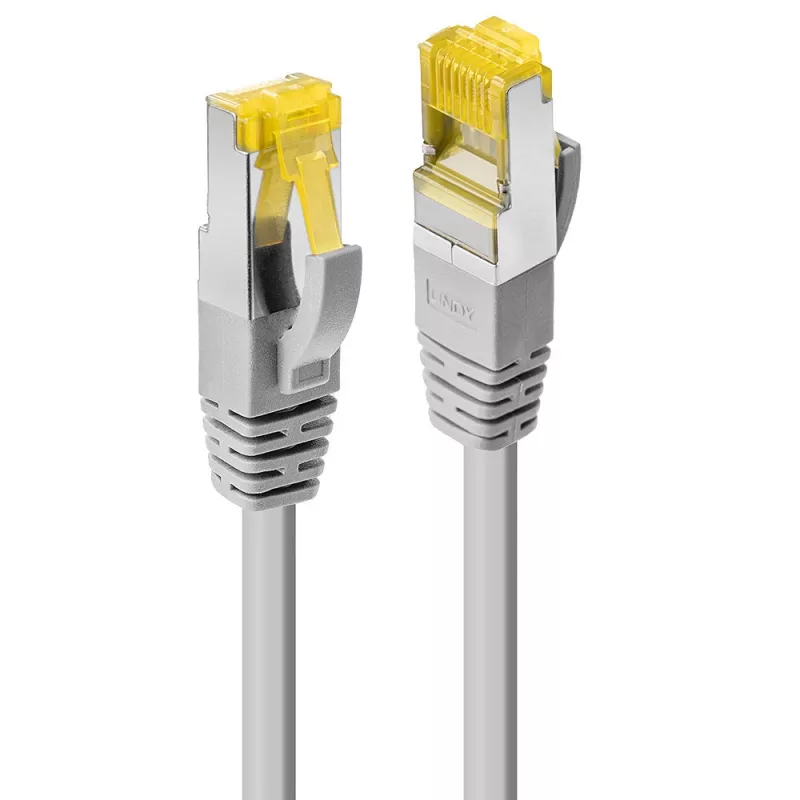

• Connector type: RJ45 (Cat.6A compatible)
• Bandwidth / frequency: up to 600 MHz
• Length: 20 m
• Sheath: LSZH (low smoke zero halogen)
• Contacts: gold-plated pins
• Standards: manufactured and tested to ISO/IEC 11801
• Colours available: Grey (this listing: grey)

How to use

Route the 20 m cable between network devices and insert the RJ45 connectors into the corresponding ports until the latch clicks into place. Ensure bends do not exceed the manufacturer’s recommended minimum bend radius and avoid tight twisting to preserve shielding performance. For rack installations, secure the cable with appropriate ties or cable management accessories to prevent strain on connectors.

Recommendations

Use this Cat.7 S/FTP LSZH cable where high immunity to interference and stable 10GBase-T links are required. For full performance, pair with compatible Cat.6A or better hardware and avoid running the cable in parallel with high-voltage power lines.
