Cavo di rete METZ CONNECT 142M1D90020 IPX7 2 m

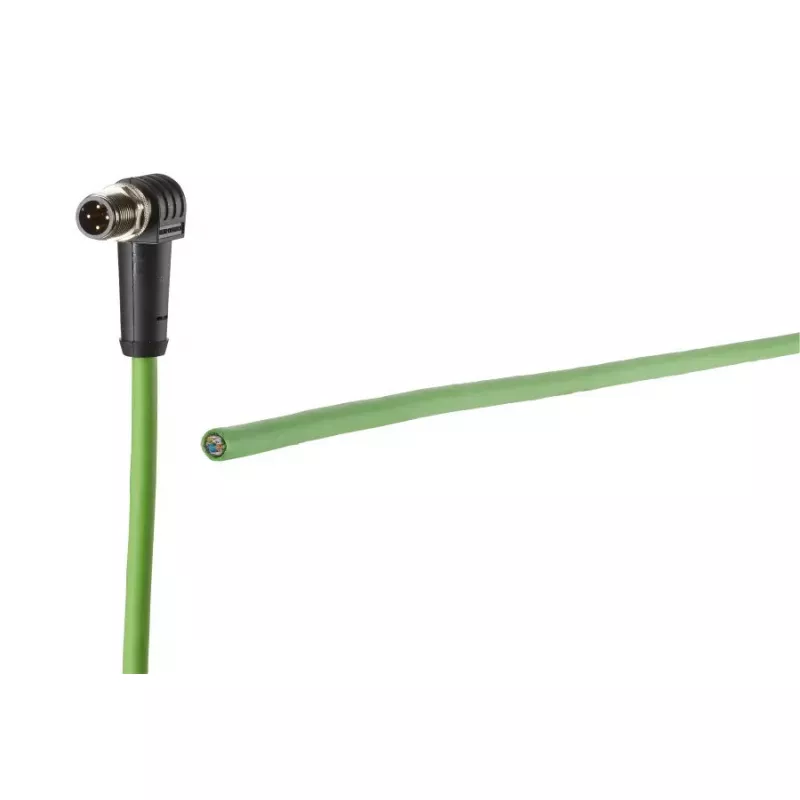

Network Cable METZ CONNECT 142M1D90020 IPX7 2m is a shielded M12 Ethernet connection cable designed for industrial data transmission. It is a Cat.5e, 4‑pole, D‑coded cable with an angled M12 plug on the free line end, featuring extrusion-coated cable sealing at the connector and a green PUR jacket. The cable has an overall tinned copper braid shielding and an inner FRNC sheath with aluminum-coated foil. Length: 2.0 m (other lengths available on request).

Advantages

The METZ CONNECT 142M1D90020 provides standardized Cat.5e performance with D‑coding for Ethernet and Profinet wiring. Its angled M12 plug and extrusion-coated connector area improve mechanical protection and sealing, while the tinned copper braid and foil shielding ensure reliable signal integrity in electrically noisy environments. The green PUR jacket increases resistance to abrasion, oils and mechanical stress. The IPX7 designation indicates suitability for applications with temporary water exposure when connected properly.

Suitable for

• Industrial Ethernet and Profinet connections
• Machine-to-machine networking in production environments
• Applications requiring a compact angled M12 connector
• Environments where chemical and abrasion resistance is needed

Key specifications

• Cable type: shielded M12 Ethernet, Cat.5e, 4‑pole, D‑coded (IEC 61076-2-101)
• Connector: M12 plug angled on free line end; extrusion-coated at connector
• Conductor: 4 x 1 x AWG22/7, tinned
• Inner sheath: FRNC with aluminum-coated plastic foil
• Overall shield: tinned copper braid, approx. 85% coverage
• Cable jacket: green PUR
• Wiring: Profinet (WS-GE-BL-OR)
• Length: 2.0 m (other lengths: 1.0 m, 5.0 m, 10.0 m available on request)
• Brand / MPN: MetzConnect 142M1D90020

How to use

Connect the angled M12 plug to the corresponding D‑coded M12 socket on your industrial device or switch, ensuring correct Profinet wiring orientation. Route the cable to avoid sharp edges and excessive bending; secure with appropriate clamps if needed. Verify connector sealing and torque according to device manufacturer specifications to maintain IPX7 protection. For extended installations, select the cable length that matches your layout or request a custom length.

Recommendations

Use this METZ CONNECT M12 Cat.5e cable in industrial automation and control systems where robust mechanical protection and electromagnetic shielding are required. Inspect connectors and seals periodically and replace the cable if the jacket or shielding is damaged.
