Cavo di rete METZ CONNECT E-DAT V6 15m Cat6 S/FTP giallo

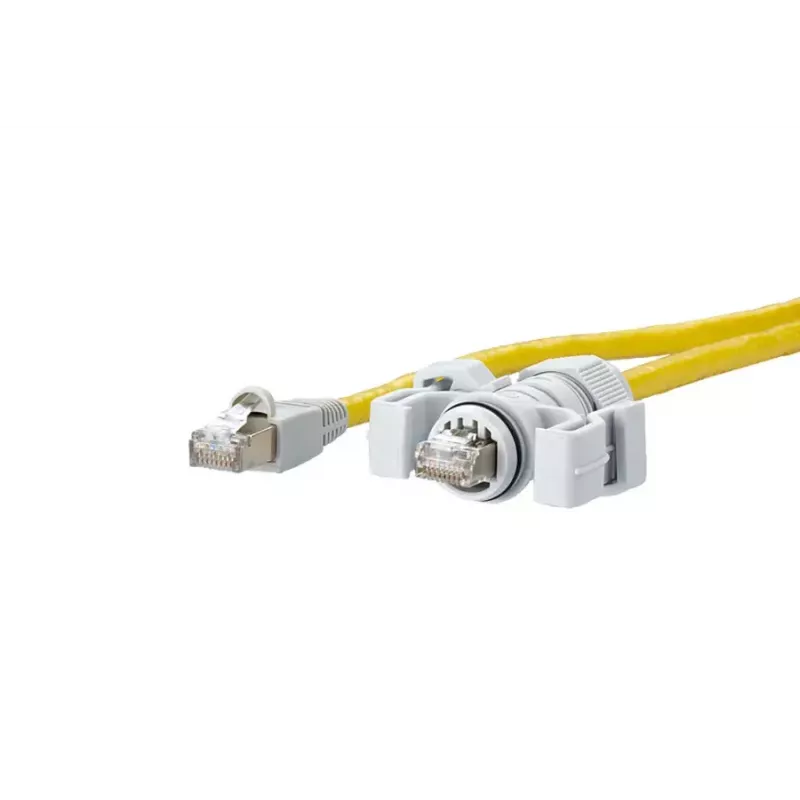

METZ CONNECT E-DAT V6 15m Cat6 S/FTP networking cable in yellow, equipped with one RJ45 and one RJ45‑IP67‑V6 shielded connector and a PUR outer sheath. The cable uses 26/7 AWG conductors with full shielding (S/FTP) and a 1:1 pin assignment. It is designed to meet Class E requirements according to ISO/IEC 11801 Ed.2.2:2011-06 and DIN EN 50173-1:2011-09 for Cat6 performance.

Advantages

The fully shielded S/FTP construction reduces electromagnetic interference for stable data transmission. A robust PUR cable sheath improves mechanical resistance and durability in industrial or demanding environments. The inclusion of a shielded RJ45 and an RJ45‑IP67‑V6 connector allows the cable to be used in standard and IP67‑rated applications where a sealed connection is required. The yellow cable color aids visual identification and cable management.

Suitable for (tasks / use cases)

• Ethernet network installations requiring Cat6 (Class E) performance
• Industrial and outdoor areas where a durable PUR sheath is needed
• Environments with potential electromagnetic interference requiring shielded cabling
• Setups needing an IP67-compatible connector for protected connections

Key specifications

• Length: 15 m
• Category: Cat6 (Class E)
• Conductor: AWG 26/7
• Shielding: S/FTP (overall braid + foil on pairs)
• Connector types: 1 x RJ45, 1 x RJ45‑IP67‑V6 (shielded)
• Pin assignment: 1:1
• Cable sheath: PUR
• Standards: ISO/IEC 11801 Ed.2.2:2011-06, DIN EN 50173-1:2011-09
• Color: yellow cable, grey connector
• Brand / MPN / EAN: MetzConnect / 141N113K100A5 / 4250184131359

How to use

Connect the RJ45 end to the network device and the RJ45‑IP67‑V6 end to the matching IP67 socket or panel connector. Ensure connectors are fully seated and, where applicable, tighten any coupling or sealing mechanism on the IP67 connector to maintain ingress protection. Route the cable avoiding sharp bends and areas of mechanical stress to preserve shielding and conductor integrity.

Recommendations

For reliable Cat6 performance, maintain bend radii according to manufacturer guidance and avoid running the cable in close parallel to high‑power electrical conductors. Inspect connectors for damage before installation and use in applications where the IP67 connector is mated with corresponding IP67 housings to ensure environmental protection.
