Cavo di rete Solarix SXKD-5E-UTP-PE UTP CAT5E 305m nero

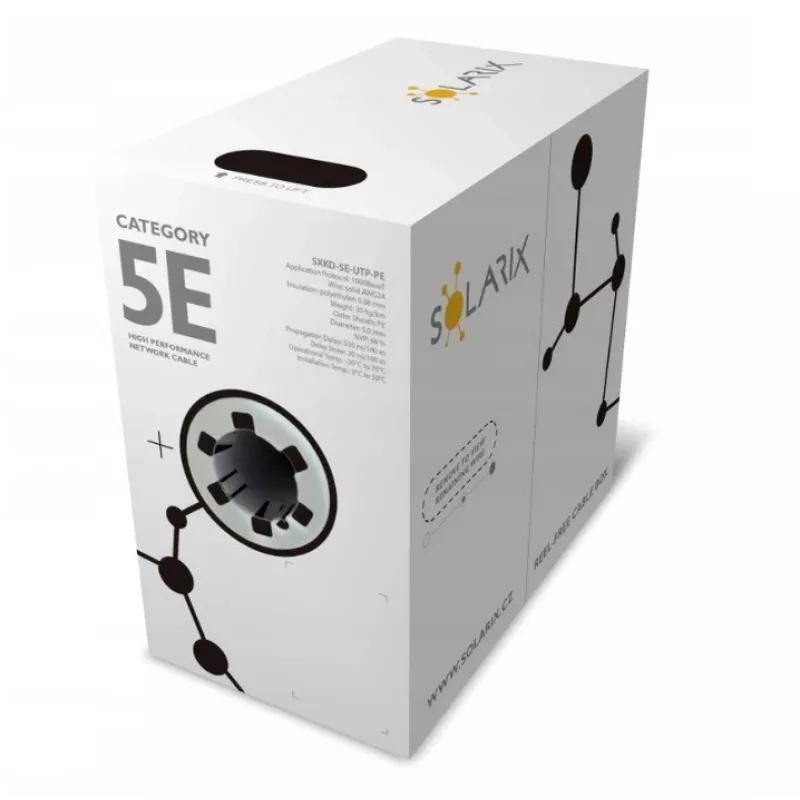

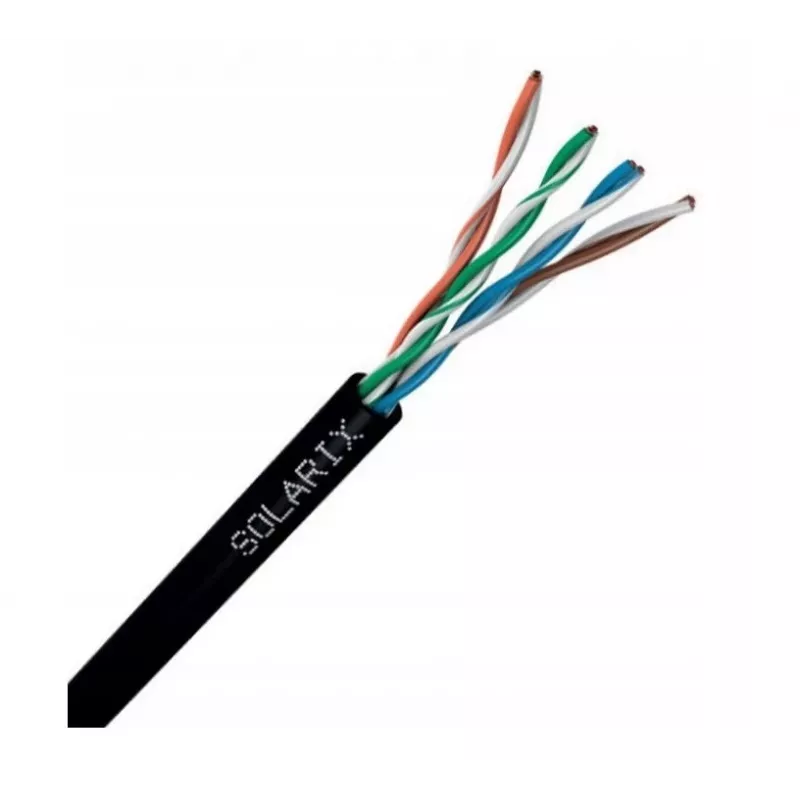

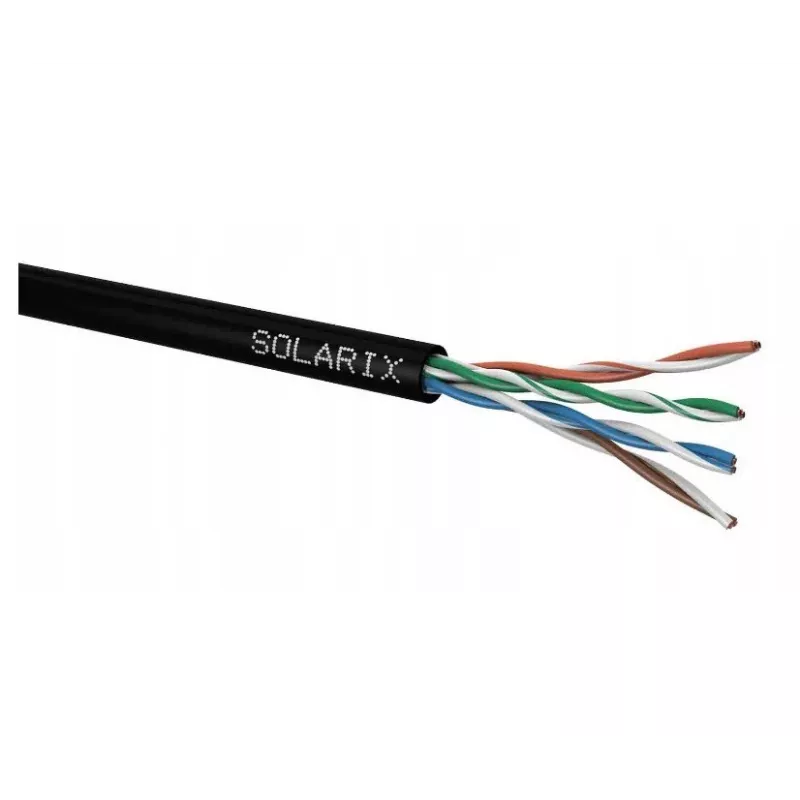

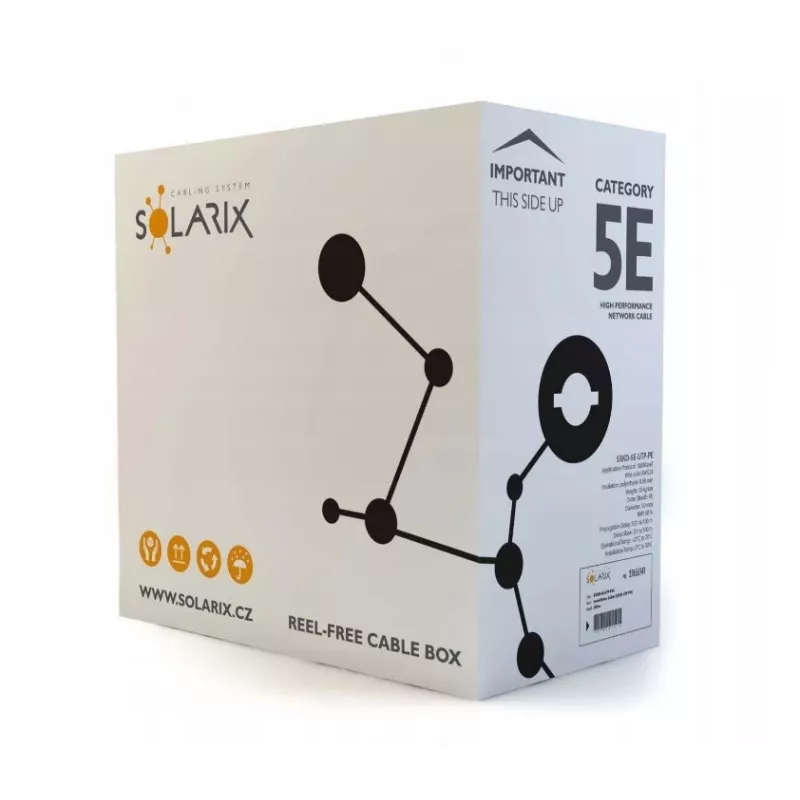

The Solarix SXKD-5E-UTP-PE is an outdoor installation network cable — an unshielded CAT5E UTP cable with a polyethylene (PE) jacket, supplied on a 305 m cardboard box. It is intended for installations where PVC or LSOH jackets do not provide sufficient protection against environmental exposure. The PE sheath increases resistance to weather and extends service life in demanding conditions. The cable meets and exceeds requirements of TIA/EIA 568, EN 50173 and ISO 11801 for CAT5E and supports protocols such as Gigabit Ethernet.

Advantages

The Solarix SXKD-5E-UTP-PE provides a weather-resistant PE outer jacket, consistent electrical performance for CAT5E applications, and a 305 m box format with meter markings for easier installation. It is designed for outdoor use with operating temperatures from -20°C to 70°C and meets international structured cabling standards.

Suitable for

• Outdoor network runs between buildings
• Structured cabling supporting Gigabit Ethernet (1000Base-T)
• Installations requiring a durable PE jacket resistant to weather
• Commercial and residential external data cabling

Key specifications

• Category: CAT5E
• Type: UTP (unshielded)
• Protocol support: 1000Base-T
• Bandwidth: 100 MHz
• Conductor: solid copper wire Ø 0.50 mm (AWG 24)
• Insulation: polyethylene Ø 0.88 mm
• Outer jacket: PE (black)
• Cable diameter: 5.0 mm
• Length: 305 m (cardboard box)
• Weight: 35 kg/km
• NVP: 68%
• Propagation delay: 535 ns/100 m
• Delay skew: 20 ns/100 m
• Storage temperature: -20°C to 70°C
• Operating temperature: -20°C to 70°C
• Installation temperature: 0°C to 50°C
• Brand / MPN: SOLARIX / SXKD-5E-UTP-PE
• EAN: 8595684701265

How to use

Run the cable along the planned outdoor route, securing it with suitable clamps or ties designed for PE-jacketed cables. Terminate the cable on standard RJ45 connectors or keystone jacks rated for solid AWG24 conductors following CAT5E wiring schemes (T568A or T568B). Observe the recommended installation temperature range (0°C to 50°C) and avoid sharp bends below the cable's minimum bend radius. Use proper weatherproof junctions and entry glands where the cable passes into buildings.

Recommendations

Install and terminate this SOLARIX outdoor CAT5E cable according to local codes and structured cabling best practices; use corrosion-resistant fixings and protect terminations from direct water ingress to maintain long-term performance.
