Cavo di rete Vivolink PROCAT40 giallo 40 m Cat6a F/FTP (FFTP)

Vivolink PROCAT40 RJ-45 Cat6a 40m is a pre-terminated networking cable designed for HDBaseT and high-speed Ethernet installations. The cable uses solid pure copper 23AWG conductors, F/FTP (individual foil + overall foil) shielding and a LSZH (low smoke, zero halogen) outer jacket, providing stable data and power transmission over long runs. Both ends are fitted with RJ45 connectors for immediate installation; the cable is tested to 550 MHz and comes in a visible yellow jacket for easy identification.

Advantages

This Cat6a cable combines solid 23AWG pure copper conductors and double aluminum foil shielding to reduce electromagnetic interference and maintain signal integrity. The pre-terminated RJ45 ends simplify installation and ensure consistent terminations. The LSZH outer jacket reduces smoke and toxic gas emission in case of fire, making the cable suitable for fixed building installations. The 40 m length and 10/100Base-T(X) compatibility suit both data and HDBaseT power delivery requirements.

Suitable for

• HDBaseT video and AV signal distribution
• Gigabit Ethernet and 10/100Base-T(X) networks
• Fixed in-wall or ceiling installations in commercial or residential buildings
• Runs requiring visible cable identification (yellow jacket)

Key specifications

• Length: 40 m
• Standard: Cat6a, tested to 550 MHz
• Conductor: Solid pure copper, 23 AWG (diameter ~0.573 mm)

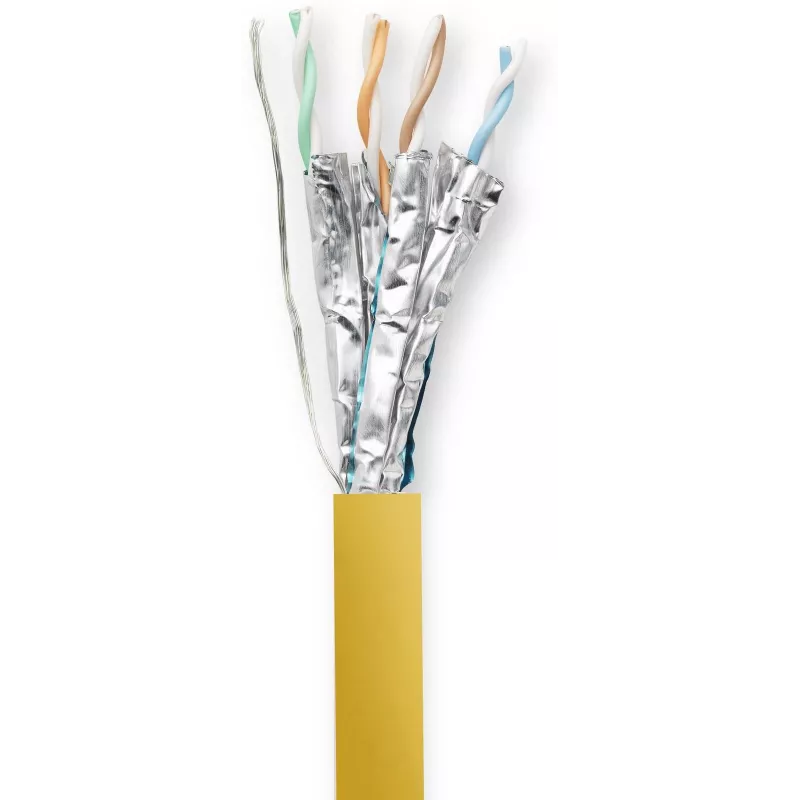

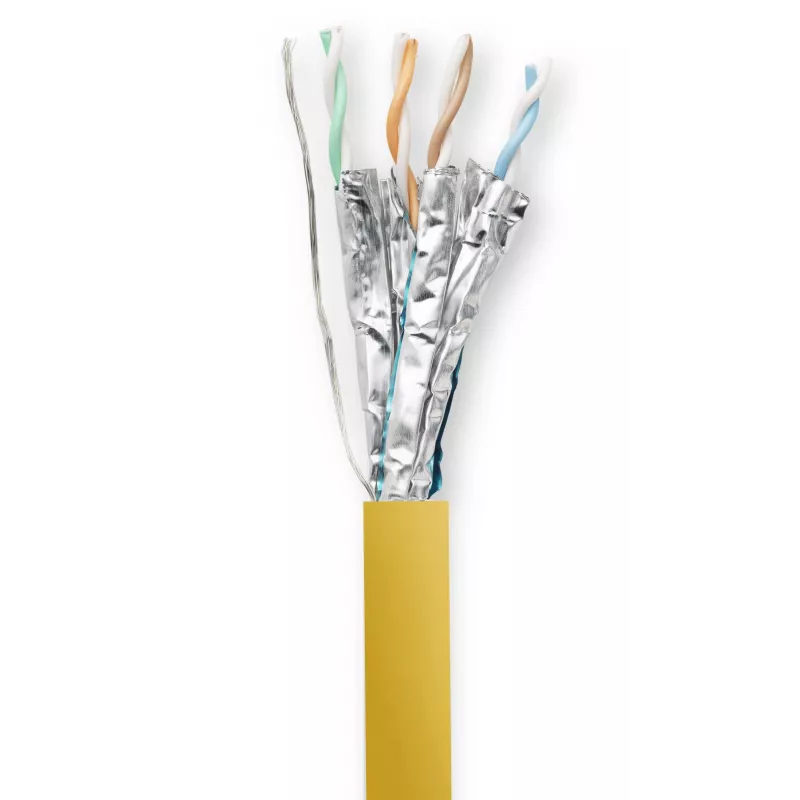

• Shielding: F/FTP — individual foil pairs plus overall foil (double shielding)
• Outer jacket: LSZH (low smoke, zero halogen), diameter ~8 mm ±0.2 mm
• Drain wire: Pure copper 0.16 mm

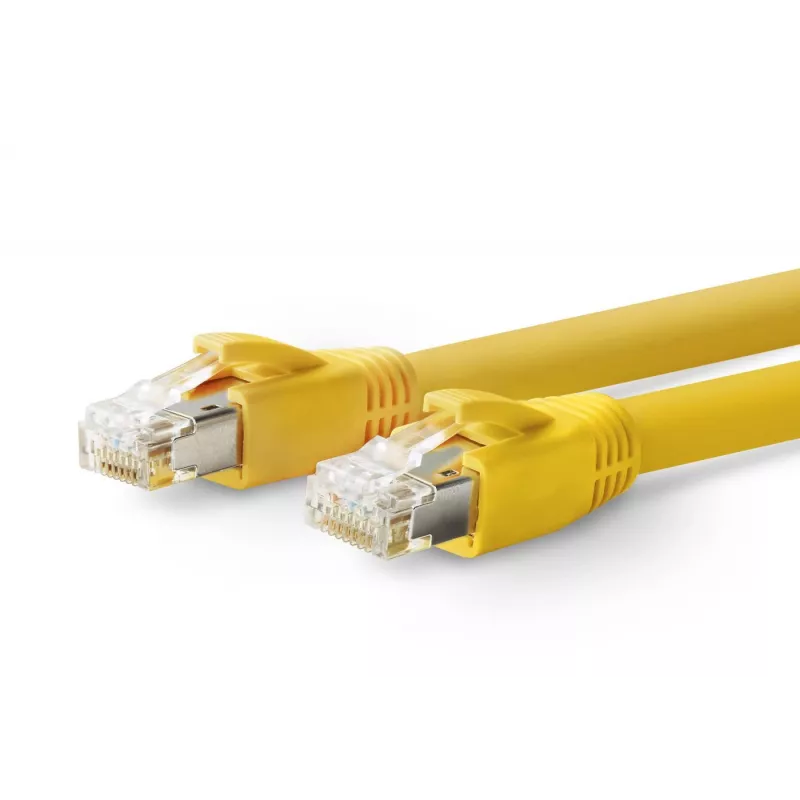

• Connectors: RJ45 — both ends
• Colour: Yellow
• Application: HDBaseT, Ethernet 10/100Base-T(X)

How to use

Route the pre-terminated Vivolink PROCAT40 cable along the planned path, avoiding sharp bends and sources of strong electromagnetic interference. Secure the cable at regular intervals using appropriate clips or cable ties suitable for LSZH jackets. Plug the RJ45 connectors into compatible RJ45 ports on network devices, AV extenders or patch panels. For in-wall or ceiling installations, follow local building and fire-safety codes when terminating or concealing the cable.

Recommendations

For best signal performance, maintain recommended bend radius (typically at least four times the cable diameter), avoid running parallel to power cables, and verify connections with a network tester after installation. Use the yellow colour to mark and document cable runs in installations.
