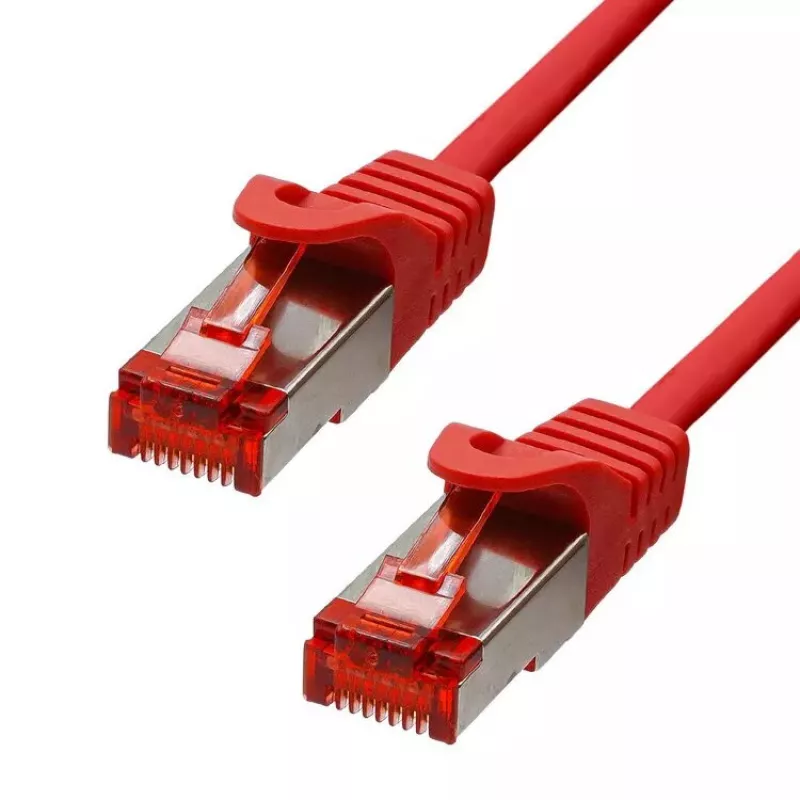

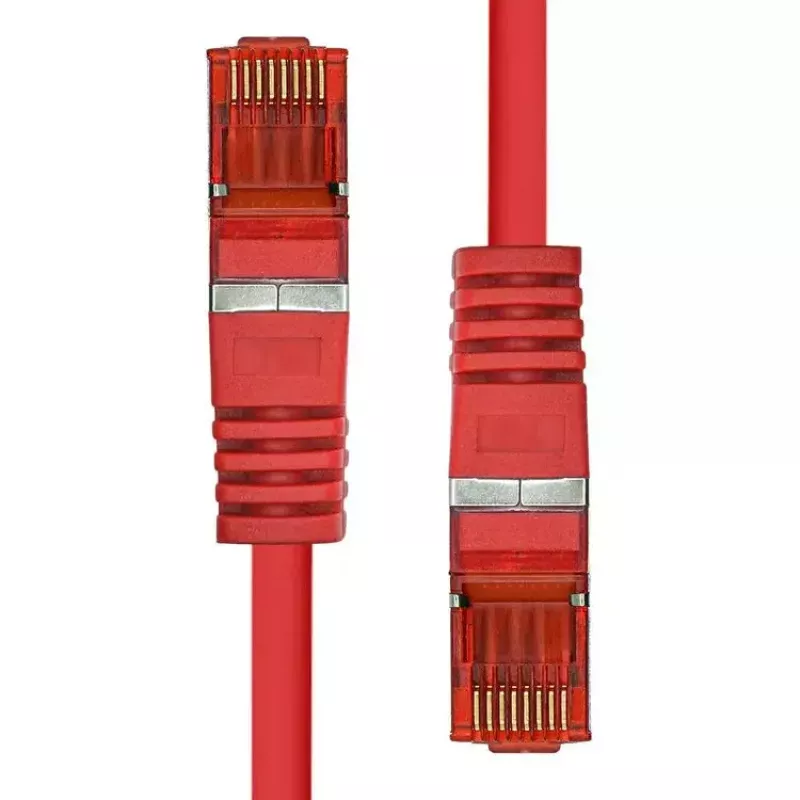

Cavo Ethernet ProXtend CAT6 RJ-45 10 m rosso

The ProXtend CAT6 F/UTP CU LSZH Ethernet Cable 10 m in red is a shielded network cable designed for Gigabit Ethernet. Constructed from 99.9% pure copper strands with 26 AWG, the cable provides stable data transmission up to 1000 Mbit/s. Its LSZH outer jacket reduces smoke and toxic gases in case of fire, while the foil screening (F/UTP) protects against electromagnetic interference. The cable uses RJ-45 connectors with 50µ"U gold plating for improved contact durability and transmission quality and supports PoE+ for powered devices.

Advantages

The cable combines 26 AWG pure copper conductors and foil shielding to maintain signal integrity and reduce crosstalk and EMI. The LSZH jacket enhances safety in confined spaces by limiting smoke and halogen emissions. Strain relief and a snagless latch protector increase connector durability and ease of installation. The 50µ"U gold-plated RJ-45 connectors offer higher wear resistance and can deliver increased throughput compared with standard metal-plated connectors.

Suitable for

• Gigabit Ethernet (10/100/1000Base-T) networks
• PoE/PoE+ powered devices such as IP phones, access points, and cameras
• Wired connections in offices, data cabinets, and home networks
• Environments requiring low-smoke, zero-halogen cabling

Key specifications

• Length: 10 m
• Cable type: CAT6 F/UTP CU (foil screened, unshielded drain)
• Conductor: 99.9% pure copper, 26 AWG
• Outer jacket: LSZH (Low Smoke Zero Halogen)
• Connector: RJ-45 to RJ-45, 50µ"U gold plating
• Data rate: up to 1000 Mbit/s (Gigabit Ethernet)
• Supports: PoE+
• Colour: Red

How to use

Connect one RJ-45 connector to your network device (switch, router or PoE injector) and the other to the target device (PC, IP camera, access point). Ensure connectors are fully inserted until the latch clicks. Route the cable avoiding sharp bends and sources of strong electromagnetic interference; secure with cable ties or management clips where needed. For installations in enclosed spaces, use the LSZH cable as specified by local safety codes.

Recommendations

For best performance, keep cable runs within standard CAT6 length limits (up to 100 m for horizontal links) and avoid running the cable parallel to high-voltage power lines. Use the cable for Gigabit networks and PoE+ devices; inspect connectors for damage before installation and replace if plating is worn.
