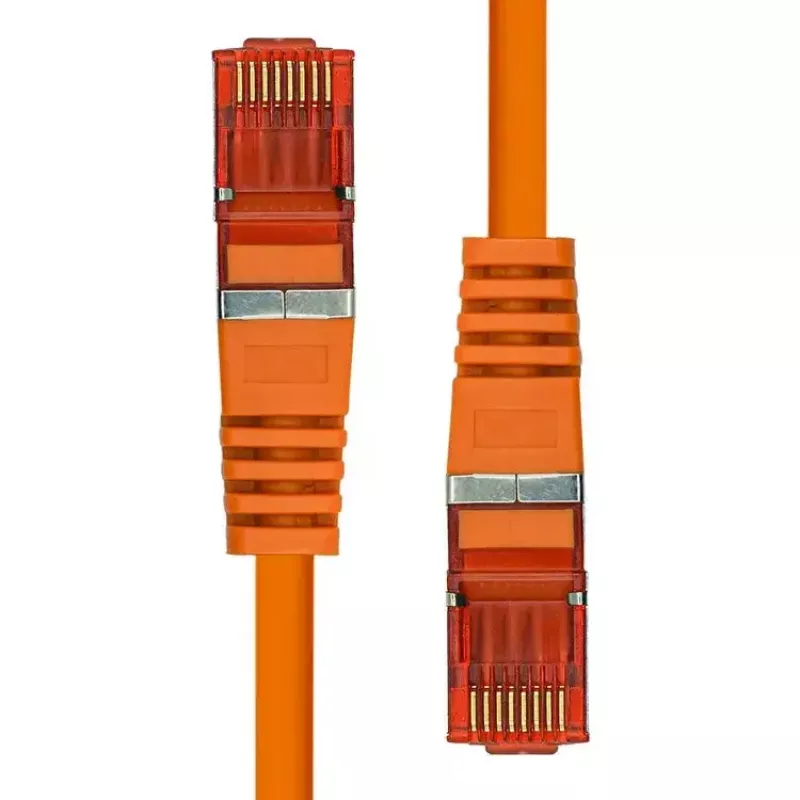

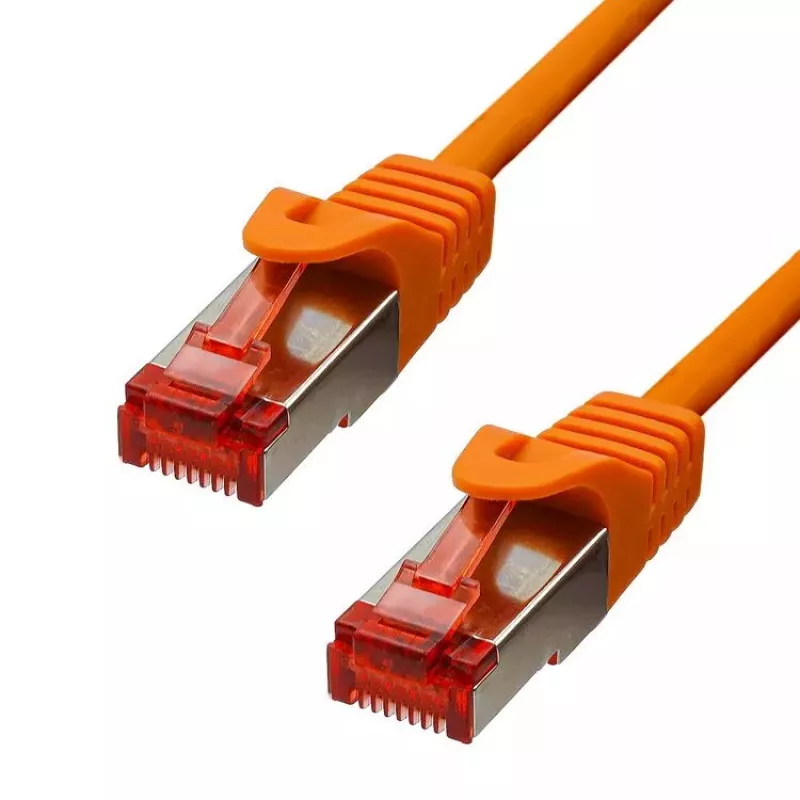

Cavo Ethernet ProXtend CAT6 RJ-45 7 m arancione

The ProXtend CAT6 F/UTP CU LSZH Ethernet Cable (7 m) provides a shielded FTP copper connection for reliable gigabit networking. Constructed from 99.9% pure copper strands with 26 AWG, this orange cable uses a foil screen to reduce electromagnetic interference and an LSZH outer jacket to limit smoke and toxic gases in case of fire. RJ-45 connectors are plated with 50µ"U" gold for improved contact durability and transmission quality, and the cable supports PoE+ and 10/100/1000Base-T(X) networks.

Advantages

The cable's 26 AWG, pure copper conductors and F/UTP foil shielding ensure stable signal transmission and reduced crosstalk. The LSZH jacket provides enhanced safety in enclosed or public spaces by producing low smoke and no halogen acid gases under combustion. Reinforced strain relief and a snagless latch design protect the connector during installation, while the 50µ"U" gold-plated RJ-45 plugs increase contact longevity and maintain high data throughput up to 1000 Mbit/s.

Suitable for

• Wired gigabit networks (10/100/1000Base-T)
• Power over Ethernet plus (PoE+) powered devices such as IP cameras and access points
• Office and home network installations where reduced interference and safety are required
• Structured cabling runs and patch panels

Key specifications

• Length: 7 m
• Conductor: 99.9% pure copper, 26 AWG
• Shielding: F/UTP (foil screen)
• Outer jacket: LSZH (Low Smoke Zero Halogen)
• Connectors: RJ-45 to RJ-45, 50µ"U" gold plating
• Supported speeds: up to 1000 Mbit/s (Gigabit Ethernet)
• Cabling technology: 10/100/1000Base-T(X)
• PoE support: PoE+
• Color: Orange
• Weight: 0.254 kg

How to use

Connect one RJ-45 plug to your network device (switch, router, patch panel) and the other plug to the target device (PC, NAS, access point or IP camera). Ensure connectors click into place with the snagless latch to secure the connection. For optimal performance, avoid sharp bends, heavy compression, or routing near strong electromagnetic sources; maintain recommended bend radius and separation from power cables during installation.

Recommendations

Use this ProXtend CAT6 F/UTP CU LSZH cable for indoor structured cabling and PoE+ deployments. Install in compliance with local fire safety codes and keep cable runs within the recommended length for gigabit performance.
