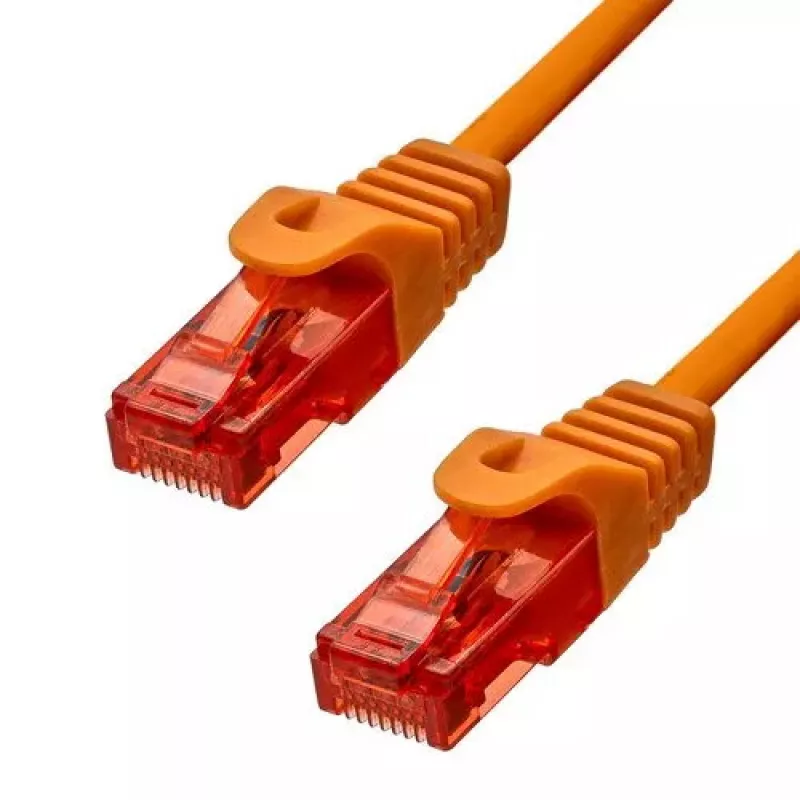

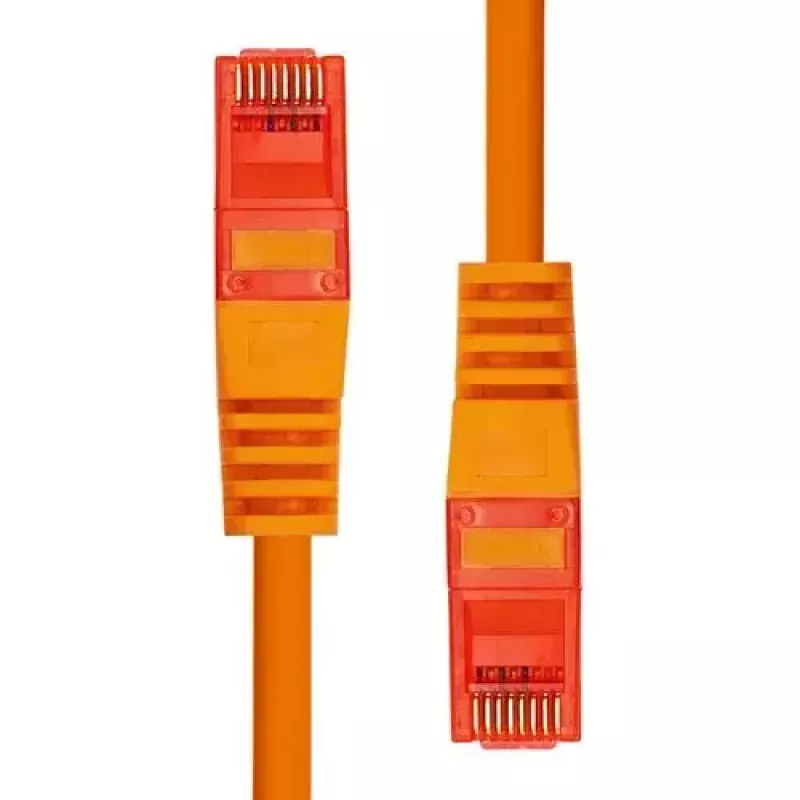

Cavo Ethernet ProXtend CAT6 RJ-45 U/UTP 15M arancione

The ProXtend CAT6 U/UTP CU Ethernet Cable in orange is a 15 m network cable designed for 10/100/1000Base-T(X) applications. Constructed with 99.9% pure copper strands (AWG 24) and an LSZH outer jacket, it supports data transfer rates up to 1000 Mbit/s and is compatible with PoE+ power delivery. RJ-45 connectors are plated with 50µ"U" gold to improve durability and signal transmission.

Advantages

This Ethernet cable uses 99.9% pure copper conductors (AWG 24) for reliable signal quality and reduced attenuation. The LSZH (Low Smoke Zero Halogen) outer jacket minimises smoke and toxic emissions in case of fire. Strain relief and a snagless latch protector increase mechanical durability and simplify installation. 50µ"U" gold-plated RJ-45 connectors provide improved contact reliability and higher effective throughput compared to standard metal-plated plugs. The cable supports PoE+ and common gigabit Ethernet standards.

Suitable for

• Gigabit Ethernet connections (10/100/1000Base-T)
• PoE+ devices such as IP cameras and access points
• Office and home network installations requiring a 15 m cable
• Environments where low-smoke, zero-halogen jacket material is preferred

Key specifications

• Cable length: 15 m
• Cabling technology: 10/100/1000Base-T(X)
• Conductors: 99.9% pure copper, AWG 24
• Shielding: U/UTP (unshielded twisted pair with overall unshielded)
• Connectors: RJ-45 to RJ-45, 50µ"U" gold plating
• Outer jacket: LSZH (Low Smoke Zero Halogen)
• Supports: PoE+
• Colour: Orange
• Weight: 0.59 kg

How to use

Route the cable between network devices and insert RJ-45 plugs into the corresponding Ethernet ports until the latch clicks. Use the cable for switches, routers, computers, IP cameras or access points supporting gigabit Ethernet and PoE+ as required. Avoid sharp bends and excessive tension; use the built-in strain relief and latch protector to prevent connector damage during installation.

Recommendations

For optimal performance, maintain bend radii greater than the cable diameter, avoid running the cable parallel to high-power electrical lines, and verify connections with network testing tools after installation. The LSZH jacket makes this cable suitable for indoor installations where low smoke emission is important.
