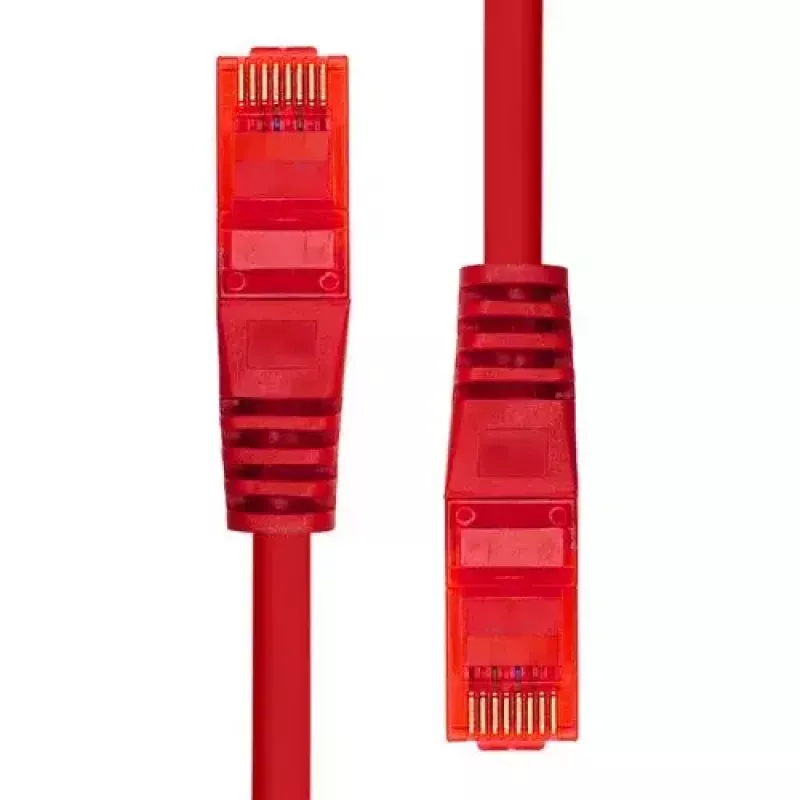

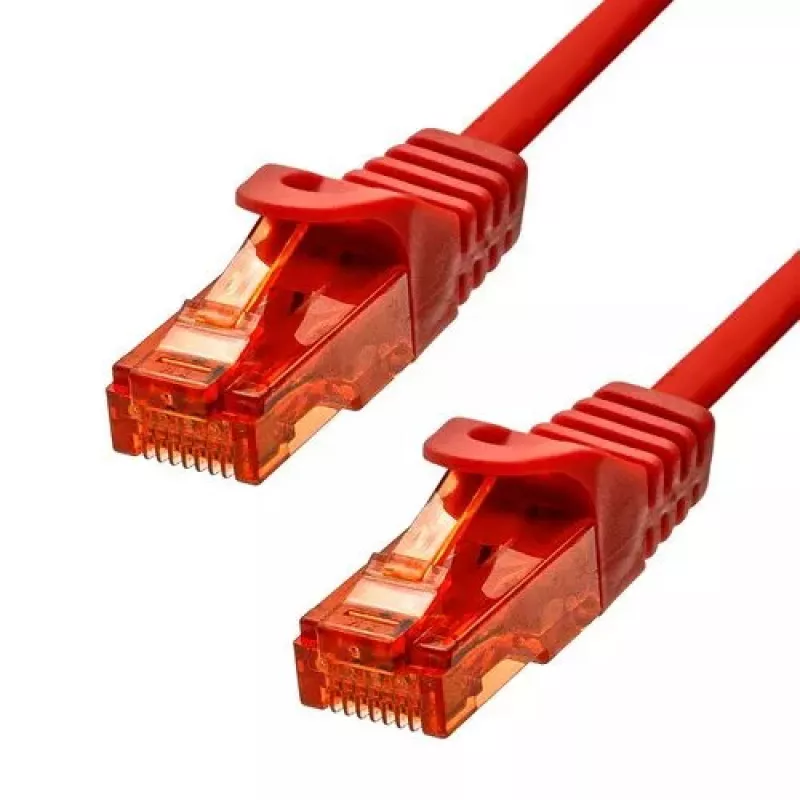

Cavo Ethernet ProXtend CAT6 RJ-45 U/UTP 50 cm rosso

The ProXtend CAT6 U/UTP CU LSZH ethernet cable is built with 99.9% pure copper conductors and 24 AWG to provide stable high-speed data transfer up to 1000 Mbit/s. This 50 cm red cable features RJ-45 connectors with 50µ"U gold plating for improved contact durability and transmission quality, a low-smoke zero-halogen (LSZH) outer jacket for reduced smoke and toxic fumes in case of fire, and a snagless latch with strain relief for easier installation and increased longevity. The cable supports PoE+ and is suitable for standard 10/100/1000Base-T(X) network applications.

Advantages

The cable combines high-purity copper conductors and 24 AWG sizing to ensure low signal loss and reliable throughput. The LSZH jacket reduces smoke and hazardous emissions in enclosed spaces. Gold-plated RJ-45 connectors enhance connector durability and provide better signal contact; 50µ"U plating offers thicker coverage for improved performance compared with standard metal connectors. Strain relief and a snagless design protect the connector and cable during installation and routine use.

Suitable for

• Wired Ethernet connections for desktops and laptops
• Network switches, routers and patch panels
• PoE+ powered devices such as access points and IP cameras
• Short-run connections within rack cabinets or office desks (50 cm length)

Key specifications

• Standard: 10/100/1000Base-T(X)
• Length: 50 cm
• Conductor: 99.9% pure copper, 24 AWG
• Shielding: U/UTP (unshielded twisted pair)
• Connector: RJ-45 to RJ-45, 50µ"U gold plated
• Jacket: LSZH (Low Smoke Zero Halogen)
• Colour: Red
• Supports: PoE+
• Weight: 0.035 kg

How to use

Connect one RJ-45 end to your network device (switch, router or PC) and the other end to the corresponding port. Ensure connectors are fully inserted until the latch clicks. Route the cable to avoid sharp bends and excessive tension; use the integrated strain relief and latch protection to minimize stress at the connector. For rack or patch panel installations, keep cable length and bend radius within recommended limits for Cat6 performance.

Recommendations

For optimal performance, avoid running the cable parallel to high-voltage power lines and maintain appropriate separation from sources of electromagnetic interference. Use the 50 cm length for short connections within racks or between adjacent devices; select longer lengths from the ProXtend range for greater distance requirements.
