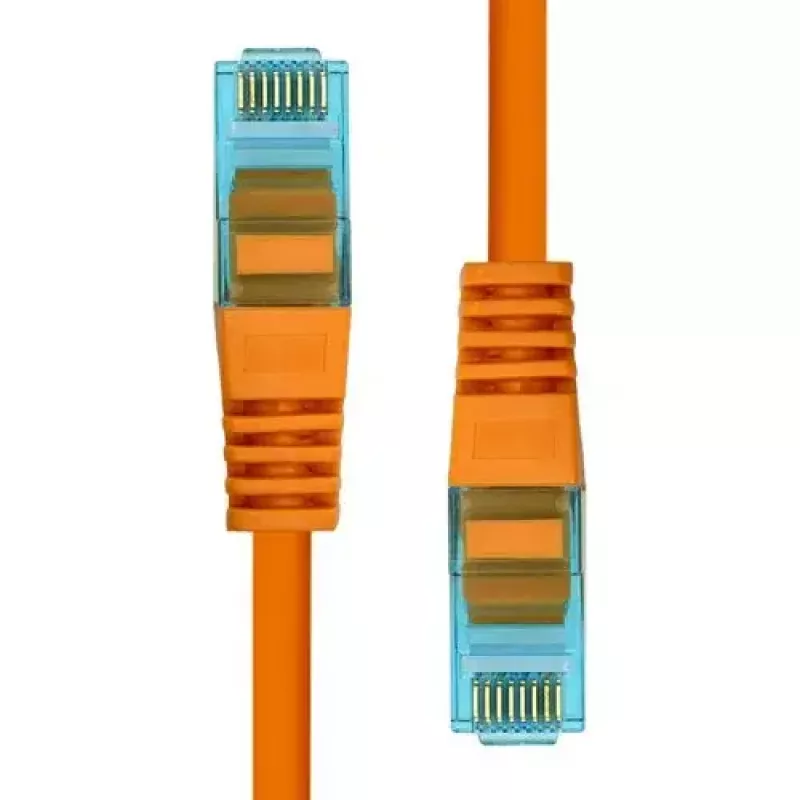

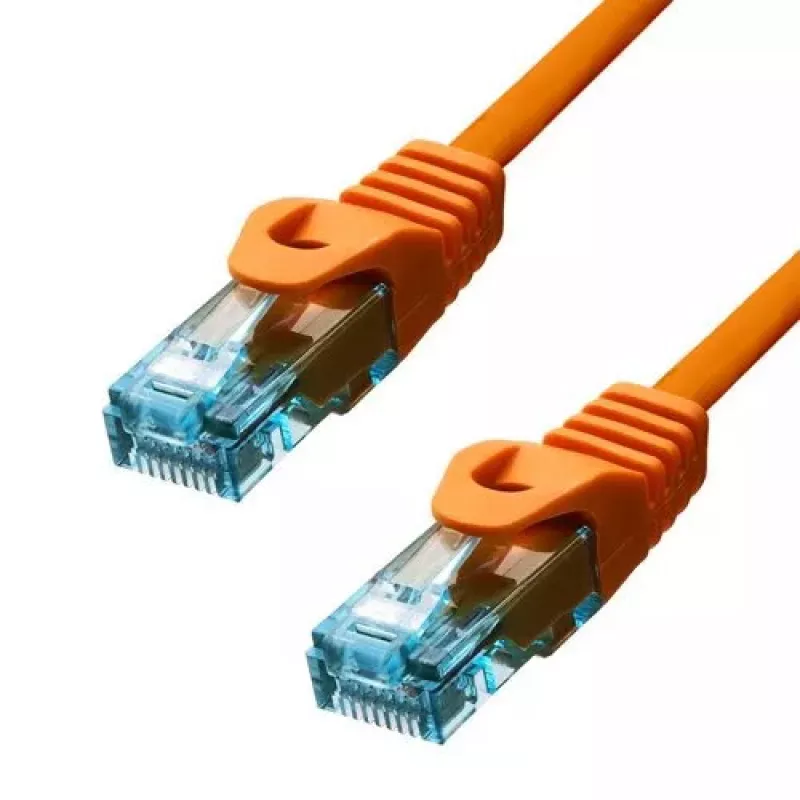

Cavo Ethernet ProXtend CAT6A RJ-45 10M arancione

The ProXtend CAT6A U/UTP CU LSZH Ethernet Cable in orange is a 10 m network cable designed for high-speed data transmission up to 10 000 Mbit/s. It uses 99.9% pure copper conductors with an AWG of 24, an LSZH outer jacket to reduce smoke and toxic gases in case of fire, and RJ-45 connectors plated with 50µ"U gold for improved conductivity and durability. The cable supports PoE+ and is built with strain relief and a snagless latch for reliable installation and longer service life.

Advantages

The cable offers enhanced signal quality through pure copper 24 AWG conductors and 50µ"U gold-plated RJ-45 connectors that increase transmission stability and connector longevity. The LSZH jacket minimizes smoke and hazardous gases in emergencies. Reinforced strain relief and snagless latch protection simplify handling and reduce the risk of connector damage during installation. The cable is compatible with PoE+ devices and the 10GBase-T standard for high-bandwidth applications.

Suitable for

• High-speed LAN connections and 10GBase-T networks
• Connections requiring PoE+ (Power over Ethernet Plus)
• Office and data centre cabling where low-smoke, zero-halogen materials are required
• Home networking and multimedia streaming with minimal interference

Key specifications

• Brand: ProXtend
• Model/MPN: 6AUTP-10O
• Length: 10 m
• Conductor: 99.9% pure copper, 24 AWG
• Standard: 10GBase-T (Cat6A)
• Connectors: RJ-45 — 50µ"U gold plating
• Jacket: LSZH (Low Smoke Zero Halogen)
• Colour: Orange
• Supports: PoE+
• EAN: 5714590020526
• Weight: 0.396 kg

How to use

Uncoil the cable and route it through the required path while avoiding sharp bends and sources of strong electromagnetic interference. Insert the RJ-45 plugs firmly into the network ports until the latch clicks. Use the strain relief to reduce stress on the connector during movement or when secured. For permanent installations, secure the cable along trays or conduits while maintaining the minimum bend radius recommended for Cat6A cabling.

Recommendations

The cable is intended for indoor use in structured cabling systems; avoid outdoor exposure or direct burial unless additional protective conduits are used. For optimal performance, pair with compatible Cat6A network equipment and avoid running parallel to high-voltage power lines.
