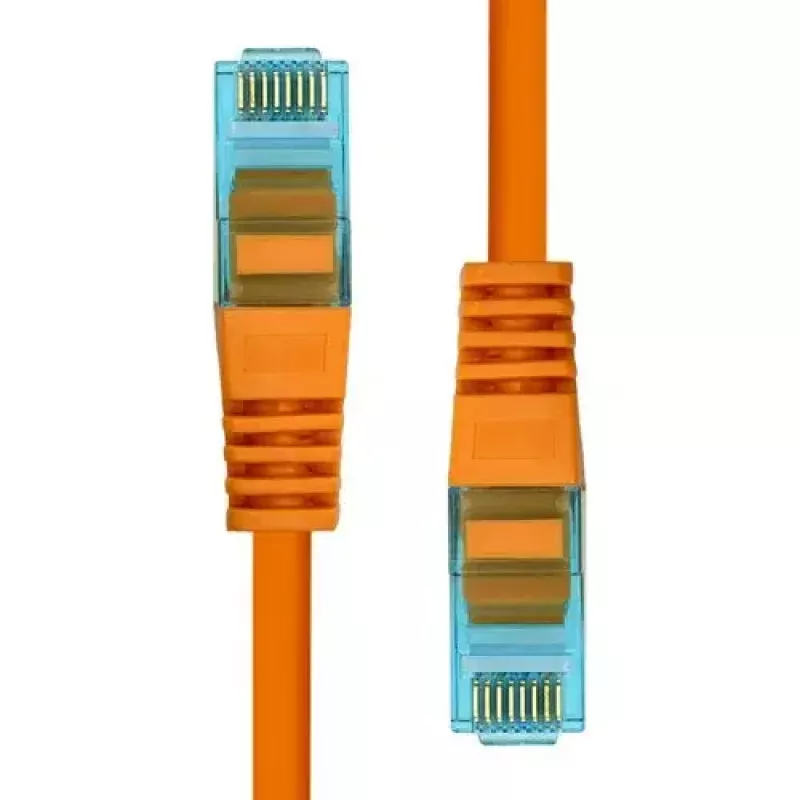

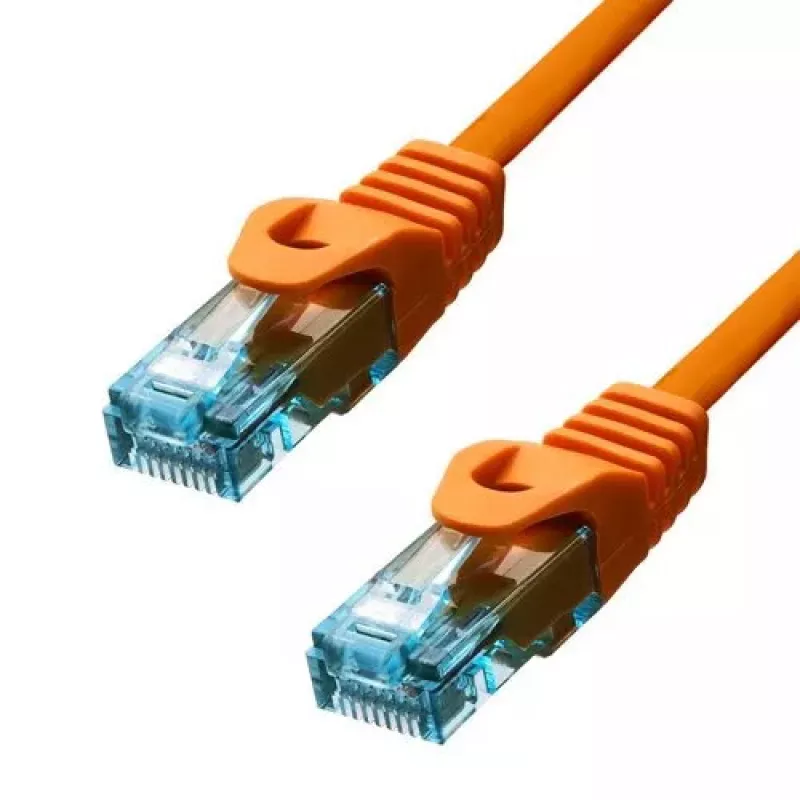

Cavo Ethernet ProXtend CAT6A RJ-45 U/UTP 3 m arancione

The ProXtend CAT6A U/UTP CU LSZH Ethernet Cable (3 m) is a high-performance network cable designed for 10GBase-T networks and data transfer rates up to 10000 Mbit/s. Constructed with 99.9% pure copper conductors (AWG 24) and a U/UTP (unshielded twisted pair) topology, the cable provides reliable signal transmission. The outer jacket is LSZH (Low Smoke Zero Halogen) and the cable supports PoE+; both ends are terminated with RJ-45 connectors plated with 50µ" gold for improved contact quality and durability.

Advantages

The cable’s 99.9% pure copper strands and AWG 24 construction ensure low resistance and consistent performance for high-speed connections. LSZH outer jacket reduces smoke and toxic emissions in case of fire. Strain relief and a snagless latch protection increase connector longevity and simplify installation. 50µ" gold-plated RJ-45 connectors improve contact reliability and can deliver higher throughput compared with standard connectors. The product is available in a vivid orange color and in multiple lengths and shieldings to match different network setups.

Suitable for

• 10GBase-T network connections
• High-speed data transfer up to 10000 Mbit/s
• PoE+ powered devices (IP cameras, access points, VoIP phones)
• Structured cabling in offices, data centers, and server rooms

Key specifications

• Length: 3 m
• Category: CAT6A
• Topology: U/UTP (unshielded twisted pair)
• Conductor: 99.9% pure copper, AWG 24
• Connector: RJ-45 — 50µ" gold plated
• Jacket: LSZH (Low Smoke Zero Halogen)
• Data rate: up to 10000 Mbit/s (10G)
• PoE support: PoE+
• Color: Orange

How to use

Connect one RJ-45 end to your network switch, router or patch panel and the other end to the target device (computer, access point, IP camera, or VoIP phone). Ensure connectors are fully inserted until the latch clicks and avoid sharp bends or prolonged tension on the cable to maintain performance. For rack or wall installations, route the cable through appropriate cable management to prevent kinks and interference.

Recommendations

For best performance, use this CAT6A cable for short- to medium-length 10GBase-T links and maintain proper bend radius and strain relief. When installing in confined or public spaces, leverage the LSZH jacket to reduce hazardous emissions in case of fire.
