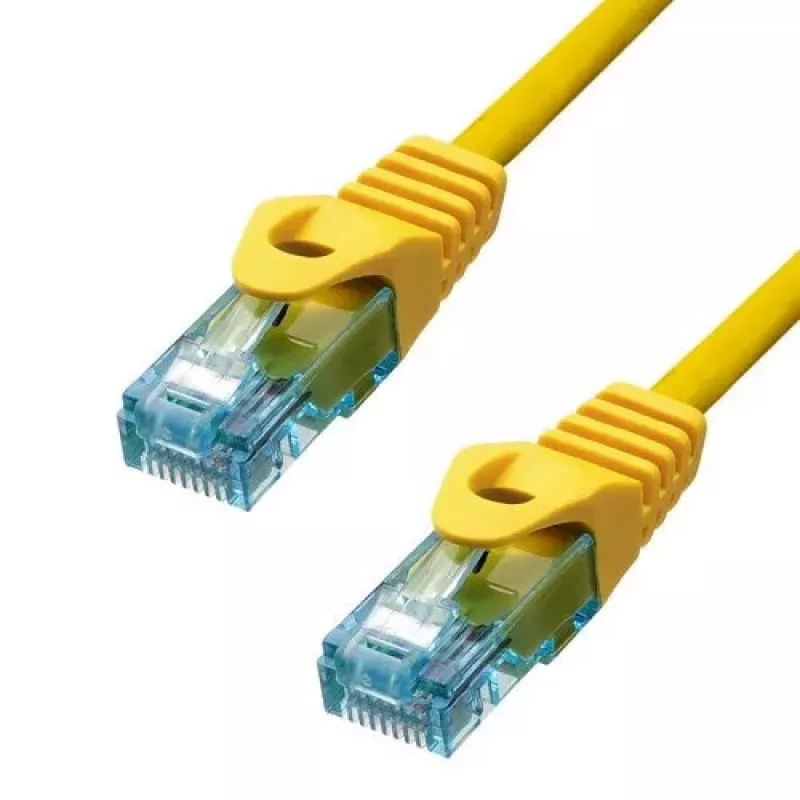

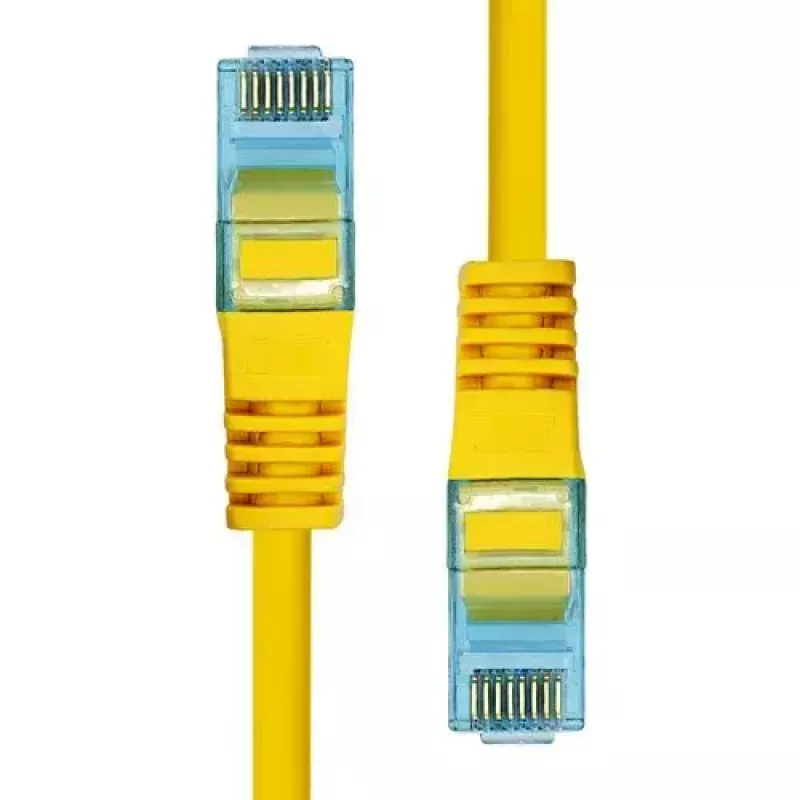

Cavo Ethernet ProXtend CAT6A RJ-45 U/UTP 3 m giallo

The ProXtend CAT6A U/UTP CU LSZH Ethernet Cable (3 m) is designed for high-performance wired networks, supporting data transfer rates up to 10000 Mbit/s and 10GBase-T applications. Constructed with 99.9% pure copper strands (24 AWG) and U/UTP topology, the cable minimises interference while the LSZH outer jacket reduces smoke and toxic gases in case of fire. The cable features RJ-45 connectors with 50µ" gold plating for improved contact durability and transmission quality, and is compatible with Power over Ethernet (PoE+).

Advantages

The cable’s 24 AWG pure copper conductors provide low attenuation and consistent signal performance for demanding network applications. LSZH jacket material lowers smoke and halogen emissions for safer use in confined spaces. Strain relief and a snagless latch protector increase durability during installation and handling. 50µ" gold-plated RJ-45 connectors offer improved corrosion resistance and higher throughput compared with standard metal connectors.

Suitable for

• 10GBase-T network connections in offices and data centers
• High-speed LAN links for servers, switches and workstations
• PoE+ powered devices such as IP cameras and access points
• Installations in corridors, risers and other indoor environments requiring LSZH cabling

Key specifications

• Cable type: CAT6A U/UTP CU
• Length: 3 m
• Conductor: 99.9% copper, 24 AWG
• Maximum data rate: up to 10000 Mbit/s (10GBase-T)
• Connector: RJ-45 – 50µ" gold-plated
• Jacket: LSZH (Low Smoke Zero Halogen)
• Colour: Yellow
• PoE support: PoE+

How to use

Connect one RJ-45 end to the network device (switch, router or network card) and the other end to the target device (PC, server, IP camera or access point). Ensure connectors are fully inserted until the latch clicks to secure the connection. Route the cable to avoid sharp bends and excessive tension; use the built-in strain relief and a snagless latch protector when pulling through conduit or cable trays.

Recommendations

For optimal performance, avoid kinking the cable and maintain a bend radius at least four times the cable diameter. Keep the cable away from large power sources and electromagnetic interference. Select the correct length to minimise excess cable and ensure proper airflow in rack installations.
