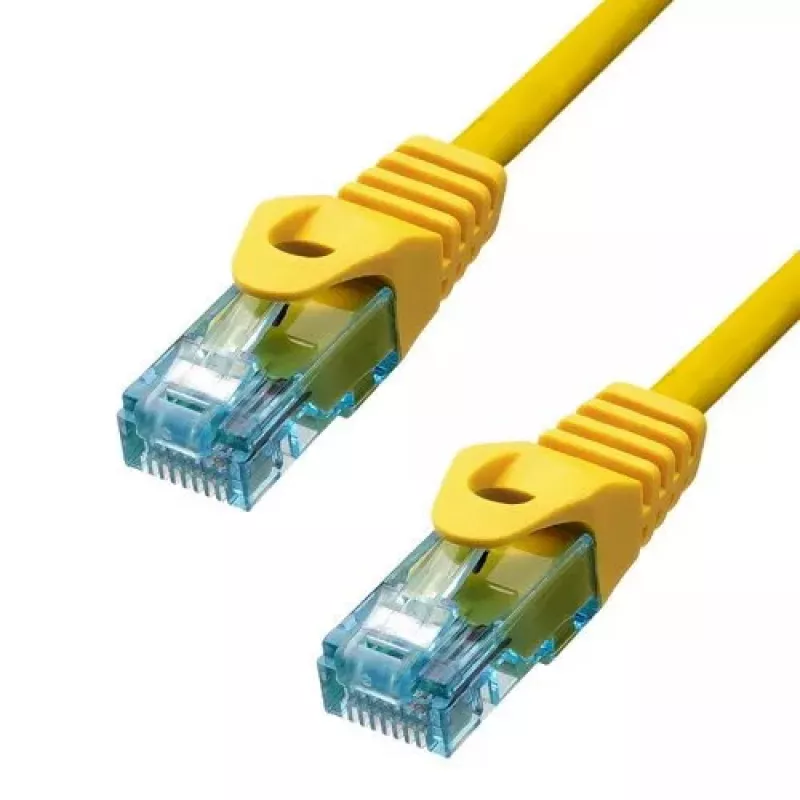

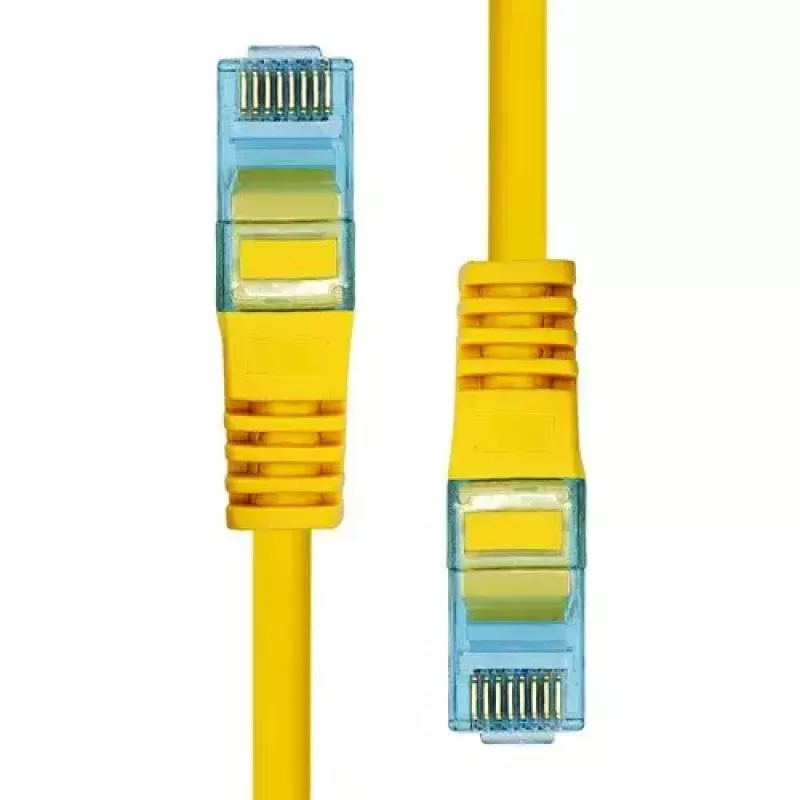

Cavo Ethernet ProXtend CAT6A RJ-45 U/UTP 5 m giallo

The ProXtend CAT6A U/UTP CU LSZH Ethernet Cable (5 m) with RJ-45 connectors is designed for high-speed wired networks. Constructed with 99.9% pure copper 24 AWG conductors and U/UTP topology, it supports 10GBase-T performance and data transfer rates up to 10000 Mbit/s. The LSZH outer jacket reduces smoke and toxic fumes in the event of fire, while the bright yellow jacket aids cable identification.

Advantages

The cable uses 24 AWG 99.9% pure copper strands to provide stable transmission and low signal loss. A LSZH jacket minimizes smoke and halogen emissions for safer installations. Connectors feature 50µ" gold plating for improved contact durability and higher transmission quality compared with standard metal plating. The cable includes strain relief and a snagless latch protector to reduce connector damage during installation. All ProXtend CAT6A U/UTP CU cables support PoE+ for powered devices.

Suitable for

• 10GBase-T wired network connections in offices and data rooms
• Connecting PoE+ devices such as IP phones, access points, and cameras
• Structured cabling runs where LSZH safety requirements apply
• Patch panels, switches and RJ-45 ports requiring reliable 5 m patch cords

Key specifications

• Brand: ProXtend
• Model / MPN: 6AUTP-05Y
• Length: 5 m
• Conductor: 24 AWG, 99.9% pure copper (CU)
• Topology / Shielding: U/UTP (unshielded pair, overall unshielded)
• Connector type: RJ-45 to RJ-45
• Gold plating: 50µ" (50 micro-inch) gold-plated contacts
• Data rate: up to 10000 Mbit/s (10GBase-T)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Color: Yellow
• Supports: PoE+

How to use

Plug each RJ-45 connector into the appropriate network ports on your devices, such as switches, patch panels or network interfaces. Ensure connectors click into place with the latch protector engaged and avoid sharp bends or excessive pulling; use the integrated strain relief to protect the connector end. For structured cabling, route the cable along cable management paths and maintain separation from high-voltage power lines to reduce interference.

Recommendations

For best performance, keep runs within recommended distances for 10GBase-T links and avoid kinking the cable. When installing in environments with fire-safety requirements, use the LSZH jacketed cable to reduce smoke and toxic emissions. Verify PoE+ device power requirements and switch capabilities before deployment.
