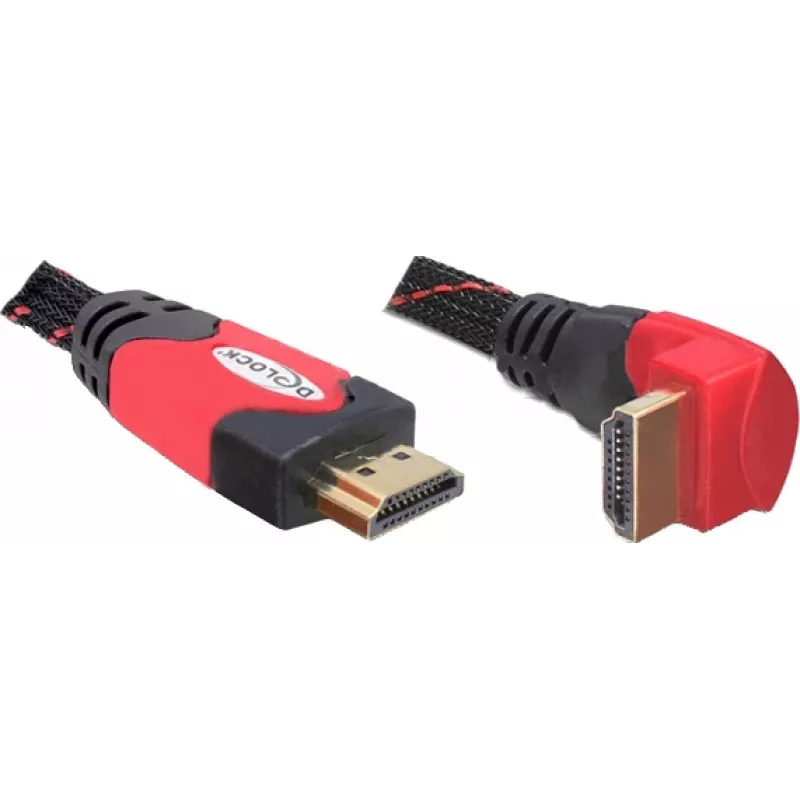

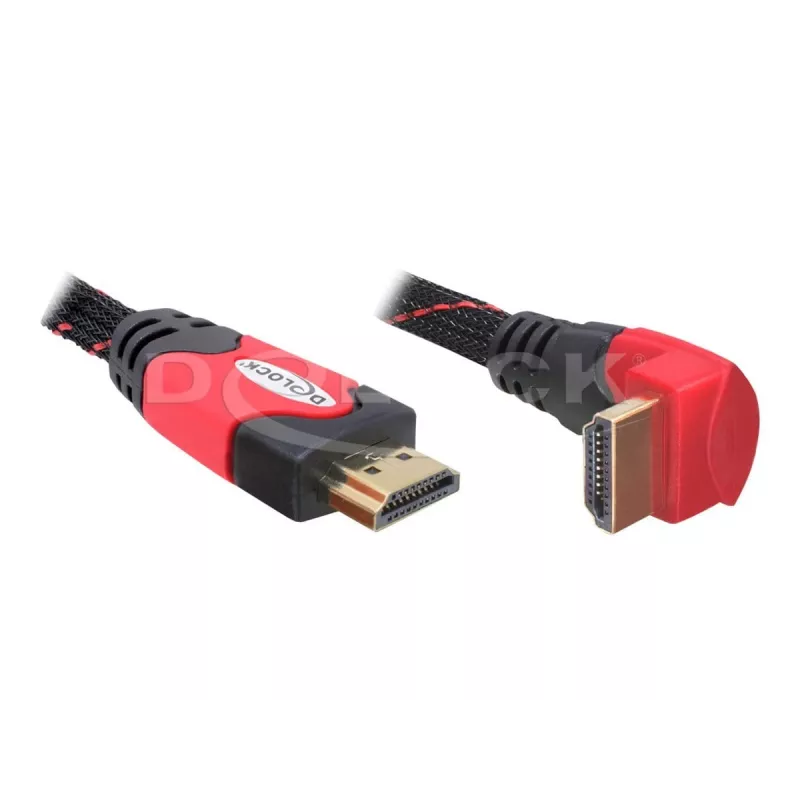

Cavo HDMI DeLOCK 3 m HDMI Type-A standard nero rosso

The DeLOCK 3m HDMI cable with Ethernet is a High Speed HDMI (HEC) cable designed for reliable transmission of audio, video and network data. It features HDMI Type A connectors on both ends, one straight and one angled, with gold-plated contacts and AWG 28 conductors. The cable supports up to 10.2 Gbit/s data rate and resolutions up to 4096 x 2160 (4K), and is backwards compatible with earlier HDMI versions.

Advantages

The angled HDMI connector allows connection in tight or hard-to-reach ports while the straight connector fits standard sockets. Gold-plated contacts improve signal contact and resistance to corrosion. Support for HDMI with Ethernet and Audio Return Channel (ARC) enables audio and network functionality over a single cable. The cable supports 3D formats, Dolby TrueHD and DTS-HD Master Audio and delivers up to 120 Hz refresh rates for compatible displays.

Suitable for

• Connecting PCs, DVD/Blu-ray players or gaming consoles to TVs and monitors
• Home theatre setups requiring ARC or high-definition multichannel audio
• Installations with limited port clearance where an angled connector is useful
• Displays and devices supporting up to 4K (4096 x 2160) resolution

Key specifications

• Standard: High Speed HDMI with Ethernet (HEC)
• Connectors: 19-pin HDMI Type A male (straight) – 19-pin HDMI Type A male (angled)
• Cable length: 3 m
• Cable AWG: 28
• Data transfer rate: up to 10.2 Gbit/s
• Maximum resolution: 4096 x 2160 (4K x 2K)
• 3D support: up to 1080p in two video streams at 60 fps each
• Refresh rate: up to 120 Hz (device dependent)
• Audio: supports Dolby TrueHD and DTS-HD Master Audio
• Product colours: Black, Red

How to use

Plug the straight HDMI Type A connector into the source device (for example a PC, Blu-ray player or game console) and insert the angled HDMI Type A connector into the display device (TV or monitor). Ensure both connectors are fully inserted into the HDMI ports. If using ARC or Ethernet features, enable the corresponding settings in the connected devices' menus. Route the 3 m cable to avoid sharp bends or kinks to preserve signal integrity.

Recommendations

For best performance, use the cable with devices that support the specified resolutions and audio formats; avoid running the cable parallel to high-power electrical wiring to reduce potential interference.
