Cavo HDMI MicroConnect HDM19195V1.4FC 5 m

Cavo HDMI MicroConnect HDM19195V1.4FC 5 m
60 mesi
Cavo HDMI MicroConnect HDM19195V1.4FC 5 m
15,41 €
PDF
PDF
Stock EsauritoNon disponibile Codice 1181303 Modello HDM19195V1.4FC Garanzia 5 anni

Spedizioni e resi

Fai una domanda – l'assistente AI risponde subito.

Descrizione

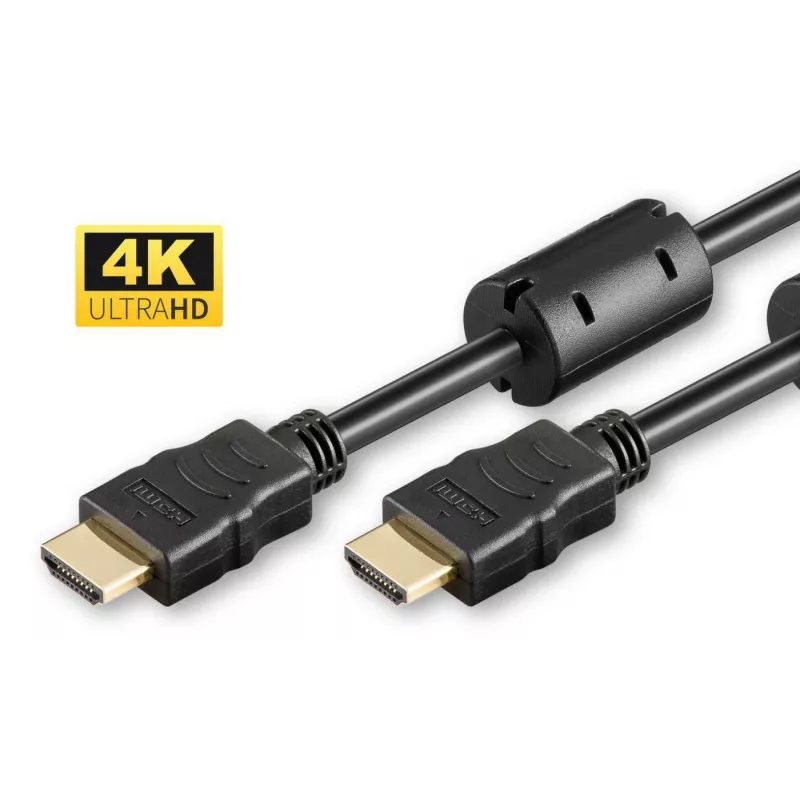

MicroConnect HDM19195V1.4FC is a 5 m HDMI High Speed cable with HDMI Type A connectors on both ends. It complies with HDMI 1.4 and supports data transfer rates up to 10.2 Gbit/s, enabling resolutions up to 3840 x 2160 (4K) at 30 Hz. The cable includes gold-plated contacts, Audio Return Channel (ARC) support, HDCP 2.2 compatibility, CEC and 3D support. Ferrite cores are fitted to reduce electromagnetic interference. The cable is finished in black and is intended for connecting source devices to displays and other HDMI-compatible equipment.

Advantages

The HDMI 1.4 specification and 10.2 Gbit/s bandwidth allow reliable transmission of high-definition video and multichannel audio. Gold-plated contacts improve contact stability and reduce corrosion. Built-in ferrite cores help attenuate high- and low-frequency interference for cleaner signals. ARC support simplifies audio routing between TV and audio systems.

Suitable for

  • Connecting Blu-ray players, set-top boxes or media players to TVs or monitors
  • Home entertainment setups requiring 4K@30 Hz video and multichannel audio
  • Use with AV receivers, soundbars and displays that support HDMI 1.4 features

Key specifications

  • Model: MicroConnect HDM19195V1.4FC
  • Length: 5 m
  • Connectors: HDMI Type A — both ends
  • HDMI version: 1.4
  • Maximum resolution: 3840 x 2160 @ 30 Hz
  • Maximum data rate: 10.2 Gbit/s
  • Features: ARC, CEC, 3D, HDCP 2.2
  • Contacts: Gold-plated
  • Colour: Black

How to use

Connect one HDMI Type A connector to the HDMI output of your source device (for example a Blu-ray player, game console or set-top box) and the other end to the HDMI input of your TV, monitor or AV receiver. Select the corresponding HDMI input on the display. If using ARC, enable the ARC setting on both TV and audio device according to their manuals. Ensure connectors are fully inserted and avoid sharp bends near the cable ends.

Recommendations

For best performance, keep cable runs away from strong electromagnetic sources and avoid excessive twisting or kinking. Use this cable for applications up to 4K@30 Hz; for higher frame rates or HDR features, consider a cable that supports newer HDMI versions.

Punti salienti
  • 4K@30Hz (3840*2160p), including 3D video
  • Gold-Plated Connectors
  • Transfer rate : 10.2 Gbit/s
  • HDCP 2.2
  • Support ARC (Audio Return Channel)
  • Support HDR (High Dynamic Range)
  • Support CEC (Consumer Electronics Control)
  • Integrated Ethernet channel which saves additional network or audio cables
  • With ferrite cores
  • 5 m
  • HDMI Type A (Standard) Straight Male
  • HDMI Type A (Standard) Straight Male
  • HDMI version: 1.4
  • 10.2 Gbit/s
  • 3D Audio Return Channel (ARC) HDMI Ethernet channel
  • Black

Specifiche

Specifiche
3D
Sì
Altezza confezione
79 mm
Canale di ritorno audio (ARC)
Sì
Canale Ethernet HDMI
Sì
Certificati di conformità
RoHS
Codice Sistema Armonizzato (HS)
84733080
Colore del prodotto
Nero
Connettore 1
HDMI tipo A (standard)
Connettore 1 maschio/femmina
Maschio
Connettore 2
HDMI tipo A (standard)
Connettore 2 maschio/femmina
Maschio
Connettore maschio/femmina
Maschio/Maschio
Diametro del cavo
6 mm
Formato connettore 1
Dritto
Formato connettore 2
Dritto
HDCP
Sì
High Dynamic Range (HDR) supportato
Sì
Larghezza confezione
266 mm
Lunghezza del cavo
5 m
Materiale del cavo
Rame
Peso
240 g
Peso confezione
244 g
Placcatura dei contatti del connettore
Oro
Profondità confezione
198 mm
Quantità
1
Quantità per confezione
1 pc(s)
Risoluzione massima
3840 x 2160 pixel
Sezione del conduttore (AWG)
30
Velocità di trasferimento dati
10,2 Gbit/s
Versione HDCP
1.4/2.2
Versione HDMI
1.4
