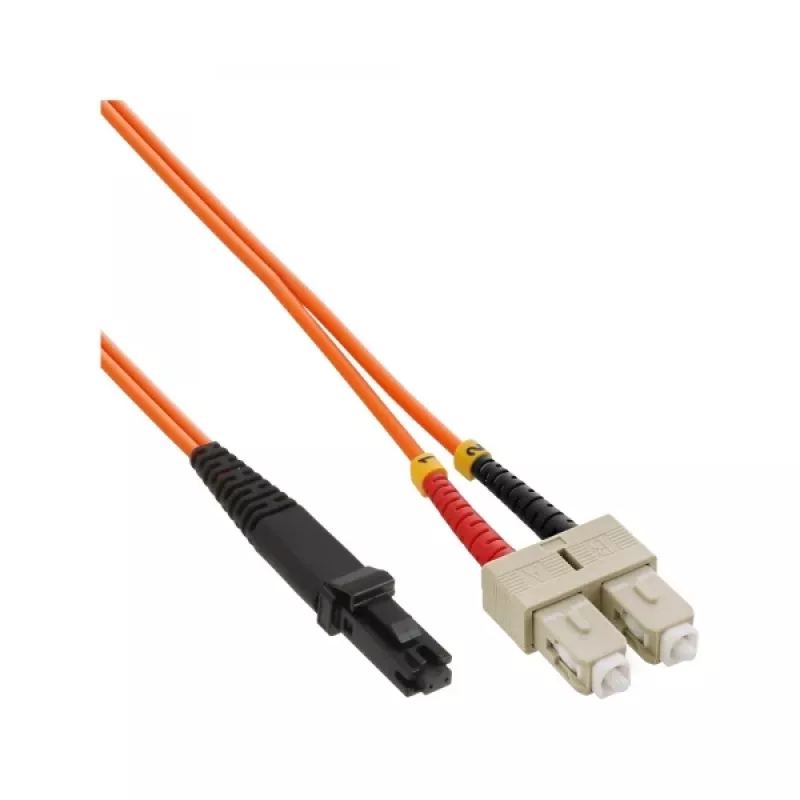

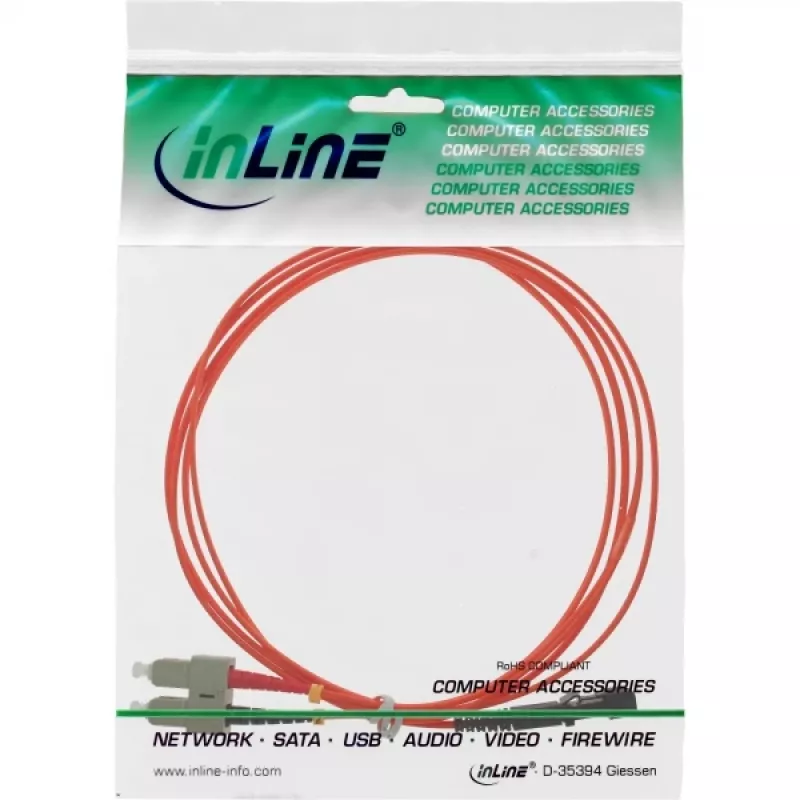

Cavo in fibra ottica duplex InLine MTRJ/SC 50/125µm OM2 5 m

The InLine Fiber Optical Duplex Cable MTRJ/SC 50/125µm OM2 5m is a duplex multimode fiber patch cable designed for reliable, high-speed data transmission in networking environments. With a 50 µm core and OM2 classification, the cable supports full-duplex connections between devices over a 5 meter length while minimising signal loss.

Advantages

This InLine duplex cable provides stable optical performance with standard 50/125 µm multimode fiber and OM2 grading, features MTRJ and SC connectors for compatibility with a range of networking equipment, and a 5 m length suitable for short rack-to-rack or device-to-device links. The product is intended to offer low insertion loss and straightforward connectivity without additional adapters when matching connector types are used.

Suitable for

• Short-distance multimode connections in data centres and server rooms
• Patch panel to switch or transceiver links
• Interconnecting networking equipment with MTRJ or SC ports
• Laboratory setups and test environments requiring duplex fiber cabling

Key specifications

• Type: Duplex multimode fiber patch cable
• Connectors: MTRJ to SC
• Core/cladding: 50/125 µm
• OM rating: OM2
• Length: 5 m
• Brand: InLine
• Manufacturer part number (MPN): 87255
• EAN: 4043718016525

How to use

Identify the MTRJ and SC ports on the devices to be connected, ensure both ends are clean and free from dust, then insert the MTRJ connector into the corresponding MTRJ port and the SC connector into the SC port until they click or seat securely. Observe correct orientation for the duplex pair to maintain transmit/receive alignment. For optimal performance, avoid tight bends and protect the cable from sharp edges.

Recommendations

Use appropriate fiber cleaning tools before connection, keep bend radius within manufacturer limits, and store the cable in a dust-free environment when not in use. Match connector types and OM2 fiber when connecting to existing infrastructure to minimise loss.
