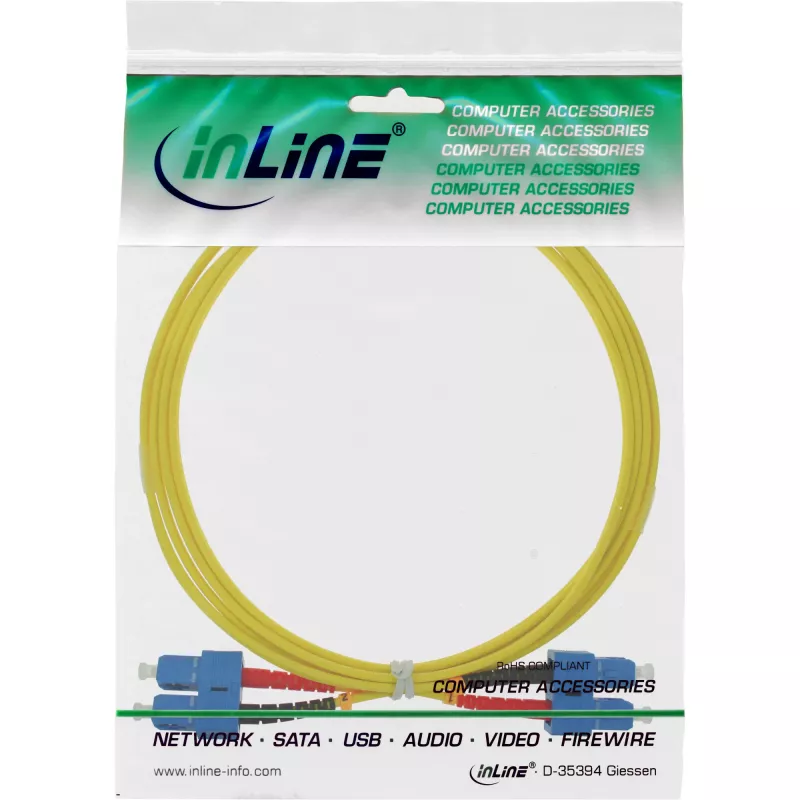

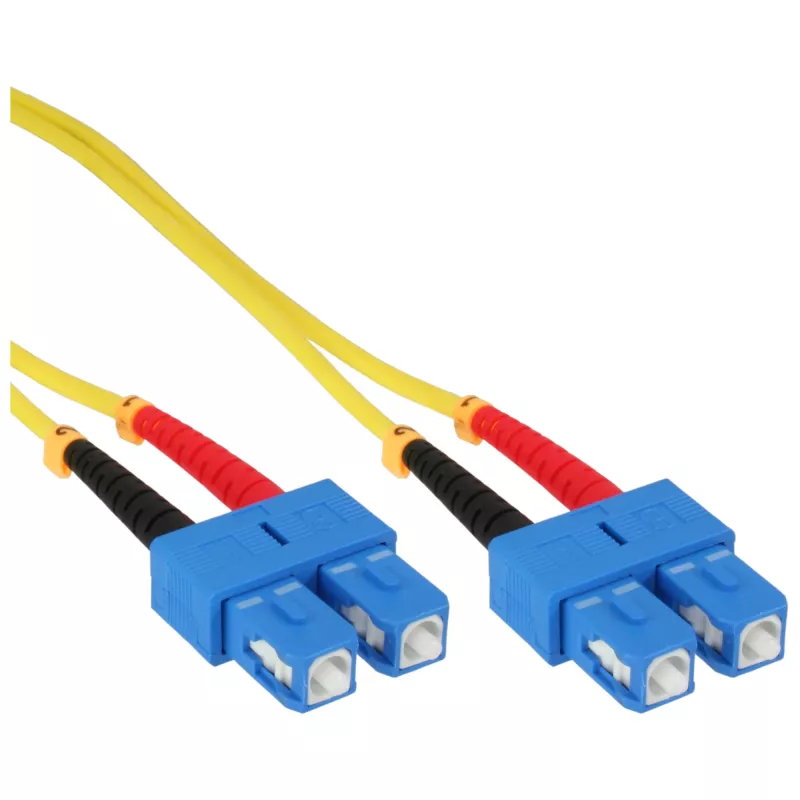

Cavo in fibra ottica duplex InLine SC/SC 9/125µm OS2 3m

The InLine fiber optical duplex cable SC/SC 9/125µm OS2 3m is a duplex multimode cable with SC connectors on both ends and a 9 µm core diameter. Designed for full-duplex communication, it supports high-speed data transmission over long distances and is suited for network backbones and links where low attenuation and stable optical performance are required.

Advantages

This OS2-rated cable provides low signal loss and consistent performance for long-distance links. The SC/SC connector pair offers reliable mechanical connection and easy installation. The 3 m length balances flexibility and reach for patching and equipment interconnects, while the 9/125µm single-mode core ensures compatibility with standard single-mode network equipment.

Suitable for

• Data center patching and rack-to-rack connections
• Telecommunications and backbone network links
• Enterprise LAN fiber runs and equipment interconnects

Key specifications

• Connector type: SC to SC duplex
• Core/cladding: 9/125 µm
• Fiber type: OS2 (single-mode)
• Length: 3 m
• Brand: InLine
• MPN: 82925B
• EAN: 4043718156399

How to use

Route the cable between devices so the SC connectors align with the corresponding SC ports. Insert each SC connector until it clicks into place, ensuring dust caps are removed and connector endfaces are clean prior to connection. For duplex operation, observe correct transmit/receive orientation when connecting equipment. Avoid tight bends and secure the cable to prevent strain near the connector ends.

Recommendations

Use appropriate fiber cleaning tools before installation, maintain bend radii above the manufacturer’s minimum, and store unused cables with protective caps to preserve connector endface quality.
