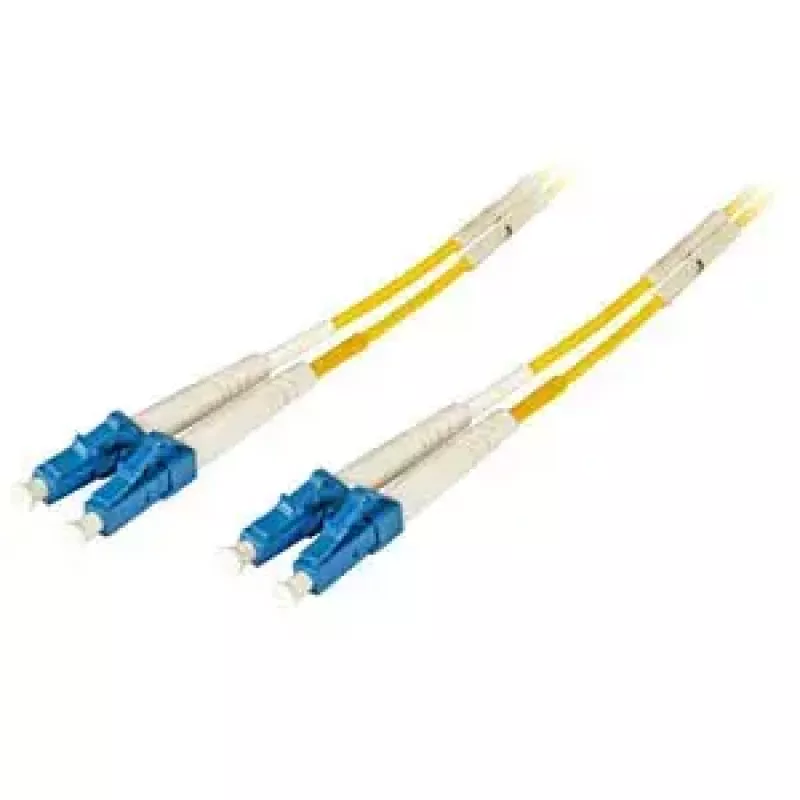

Cavo in fibra ottica EFB Elektronik LC-LC 9/125 25 m

The EFB Elektronik LC-LC 9/125 25m fibre optic cable is a duplex jumper designed for high-speed singlemode data transmission. With a 9 µm core and OS2 compliance, the 25 m yellow LSZH cable provides reliable full-duplex connections using LC connectors and is suitable for networking and telecommunications environments including InfiniBand applications.

Advantages

This LC-LC 9/125 25m cable offers full-duplex transmission and standardized OS2 singlemode performance. The LC connectors ensure secure mating and low insertion loss, while the LSZH jacket reduces smoke and toxic emissions in case of fire. The 25 m length and yellow color make it easy to route and identify within structured cabling installations.

Suitable for

• High-speed singlemode links
• InfiniBand and other data center interconnects
• Telecommunications racks and patch panels
• Longer patch runs within buildings where LSZH is required

Key specifications

• Connector type: LC - LC duplex
• Core/cladding: 9/125 µm (singlemode)
• Standard: OS2
• Length: 25 m
• Jacket: LSZH
• Color: Yellow
• Brand: EFB Elektronik
• MPN: O0350.25
• EAN: 4049759117993

How to use

Connect each LC connector to the corresponding LC port on networking equipment or patch panels, ensuring correct polarity for duplex operation. Route the cable avoiding tight bends and mechanical stress; maintain the minimum bend radius specified by the manufacturer. Verify signal integrity after installation using appropriate optical test equipment.

Recommendations

For optimal performance, keep connectors clean and protected with dust caps when not in use, follow LSZH installation guidelines in confined spaces, and test links after installation to confirm attenuation and continuity meet system requirements.
