Cavo in fibra ottica EFB Elektronik O0323.3-1.2 3 m 2x SC 2x LC

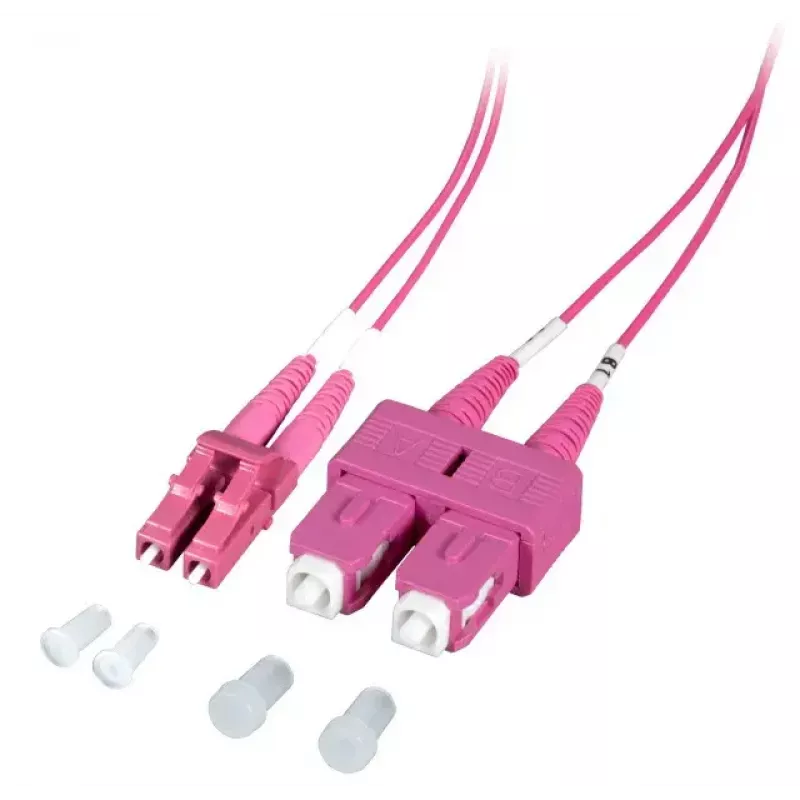

The EFB Elektronik O0323.3-1.2 is a 3 m OM4 fibre optic cable configured with two SC and two LC connectors to support full duplex data transmission. Designed for high-speed networking environments, the cable uses a 50 µm core diameter multimode fibre that provides low attenuation and stable signal integrity across short- to medium-range links. The compact jacket and standardized connector types make it compatible with equipment in data centers, server rooms, and structured cabling installations.

Advantages

This OM4 fibre cable delivers improved bandwidth and reduced modal dispersion compared with earlier multimode grades, enabling higher data rates over the specified distance. The presence of both SC and LC connectors offers flexible connectivity to a variety of network devices and patch panels without adaptors. The 3 m length balances reach and cable management needs while the duplex configuration ensures simultaneous transmit and receive channels for bi-directional networking.

Suitable for

• Data center interconnects between switches, routers and patch panels
• Server-to-switch connections in enterprise racks
• High-speed LAN backbones and aggregation links
• Fiber patching in telecom and network rooms

Key specifications

• Fibre type: Multimode OM4
• Core diameter: 50 µm
• Length: 3 m
• Connector configuration: 2x SC to 2x LC, duplex
• Transmission mode: Full duplex
• Typical usage distance: Short to medium range links

How to use

Inspect connectors and ports for dust or damage before installation. Align SC and LC connectors with the corresponding ports and insert until they click or seat firmly, taking care not to force connections. Route the 3 m cable to avoid tight bends and excessive strain; maintain the manufacturer's minimum bend radius for multimode fibre to preserve optical performance. For disconnection, depress the connector latch and withdraw straight out to avoid stressing the fibre.

Recommendations

Use dust caps when the cable is not connected and perform regular visual inspection of connector endfaces with appropriate inspection tools. For critical links, test insertion loss and return loss after installation and document cable paths for maintenance. Select OM4 multimode for applications requiring higher modal bandwidth at the specified link distances.
