Cavo in fibra ottica InfiniBand DeLOCK 3 m LC LC/APC giallo 9 µm

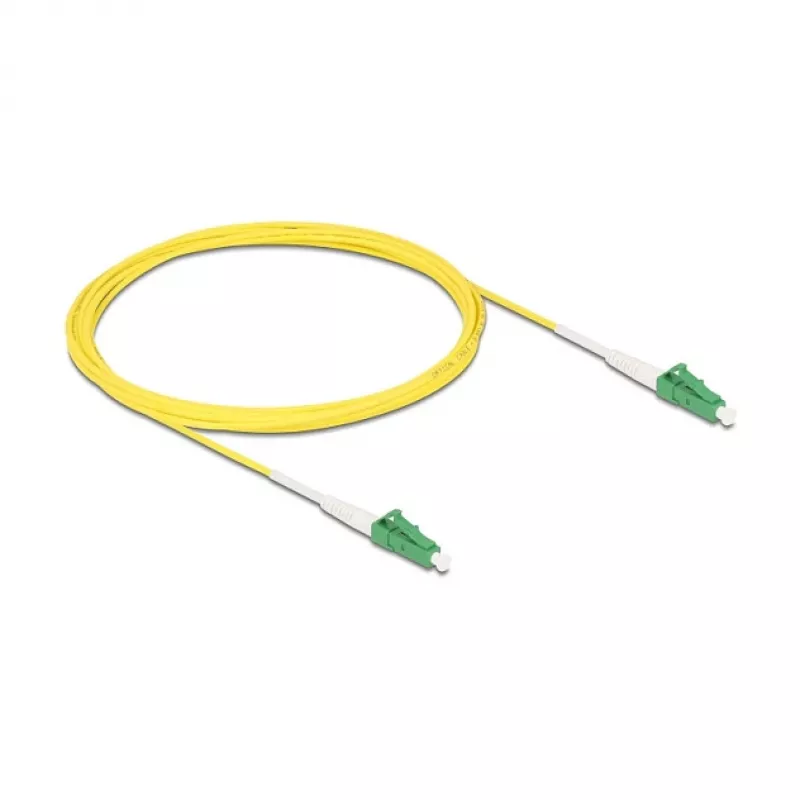

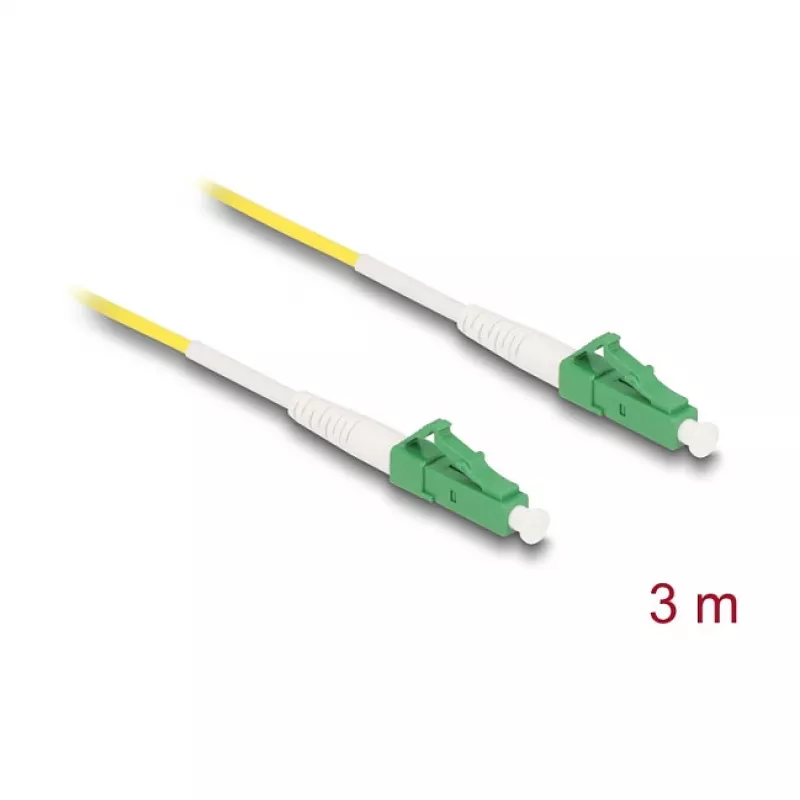

The DeLOCK 83229 is a 3 m fibre optic cable with LC/APC connectors, designed for InfiniBand and other high-speed fibre connections. It uses OS2 single-mode fibre with a 9 µm core diameter and comes in yellow jacketing. The cable is suitable for linking network equipment such as FTTH house interconnection points to fibre optic modems. The package includes the optical fiber cable packed in a zip poly bag.

Advantages

The cable supports single-mode OS2 fiber for long-distance, low-loss transmission and features LC/APC connectors for improved return loss. Its 3 m length provides a balance between reach and manageability, and the yellow jacket makes it easy to identify within cabling runs.

Suitable for

• Connecting FTTH interconnection points to fibre optic modems
• InfiniBand links and high-speed data connections
• Data centre patching and telecommunications installations

Key specifications

• Brand: DELOCK
• MPN: 83229
• EAN: 4043619832293
• Connector type: LC — LC (APC)
• Length: 3 m
• Fibre type: OS2 (single-mode)
• Core diameter: 9 µm
• Colour: Yellow

How to use

Ensure both devices are powered off or follow hot-plug procedures recommended by the equipment manufacturer. Remove protective caps from the LC/APC connectors and align the connectors with the device ports, then push until they click into place. Avoid bending the cable beyond its minimum bend radius and keep the connectors clean to maintain signal quality. When disconnecting, pull on the connector body rather than the cable jacket.

Recommendations

Store and handle the cable in a clean environment, protect connector endfaces with dust caps when not in use, and avoid tight bends to ensure optimal fibre performance and longevity.
