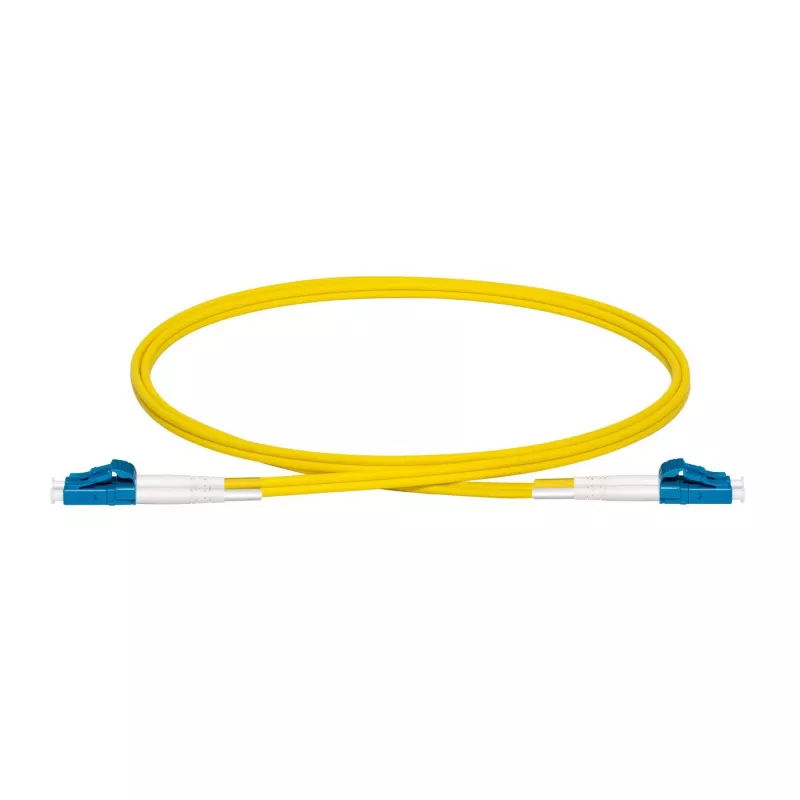

Cavo in fibra ottica InfiniBand Lanview LVO231406 1 m 2x LC giallo

The Lanview LVO231406 is a 1 m single mode fibre optic cable with 2x LC connectors and OS2 fibre type. It supports full duplex communication and is intended for enterprise networks, telecom rooms, server farms, cloud storage networks and other installations requiring fibre jumper cables. The cable is optimized for 1G/10G/40G/100G Ethernet links and is suitable for long-distance transmission: up to 10 km at 1310 nm and up to 40 km at 1550 nm. The jacket is made from LSZH material and the product meets common industry standards.

Advantages

This single mode patch cord provides stable high-speed data transmission for multiple Ethernet standards, compact LC connectors for high-density applications, and a yellow LSZH jacket for easy identification and improved fire safety. The OS2 fibre core (9 µm) ensures low attenuation for extended reach, while the 1 m length offers a tidy connection between nearby devices.

Suitable for

• Enterprise network links and data centres
• Telecom rooms and rack-to-rack connections
• Server farms and cloud storage infrastructure
• 1G/10G/40G/100G Ethernet connections

Key specifications

• Product name: Lanview LVO231406
• Fibre type: OS2 (single mode), core diameter 9 µm

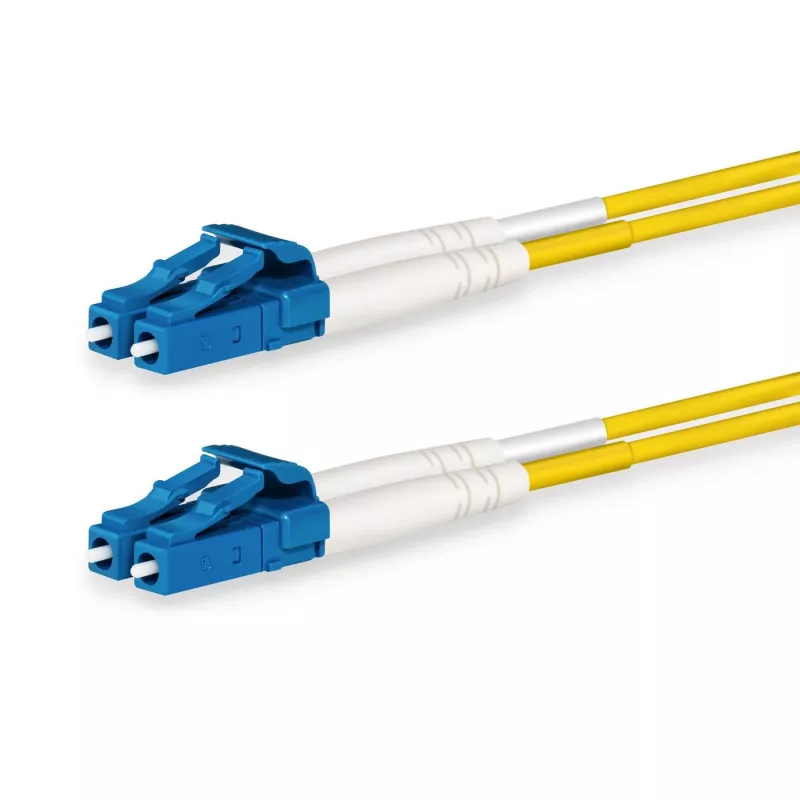

• Connectors: 2x LC to 2x LC (full duplex)
• Cable length: 1 m
• Colour: Yellow
• Jacket: LSZH
• Transmission range: up to 10 km at 1310 nm; up to 40 km at 1550 nm
• Weight: 0.022 kg

How to use

Ensure both endpoints support LC connectors and single mode OS2 fibre. Route the 1 m patch cord between the corresponding LC ports on network equipment, keeping bends above the minimum bend radius for single mode fibre. Secure the cable to avoid strain on the connectors and verify link status on connected devices. For long-distance links, confirm transceiver compatibility with the specified wavelengths (1310 nm or 1550 nm).

Recommendations

Store and handle the fibre cord without sharp bends, avoid crushing the cable, and keep LC connector endfaces clean. Use in environments where LSZH jackets are required for reduced smoke and toxicity in case of fire. Match the cable to compatible single mode transceivers and Ethernet equipment for reliable operation.
