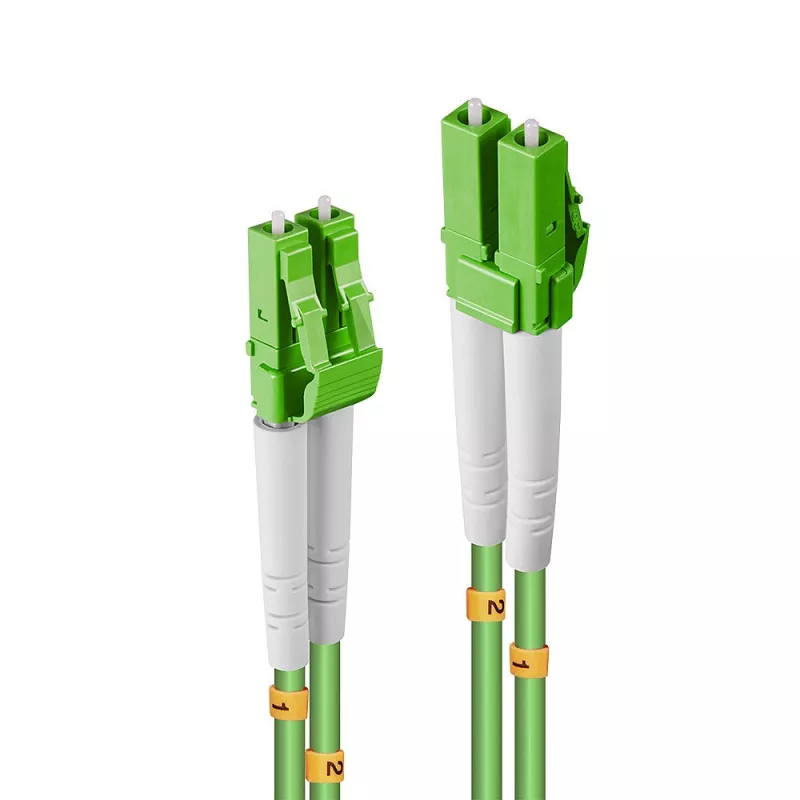

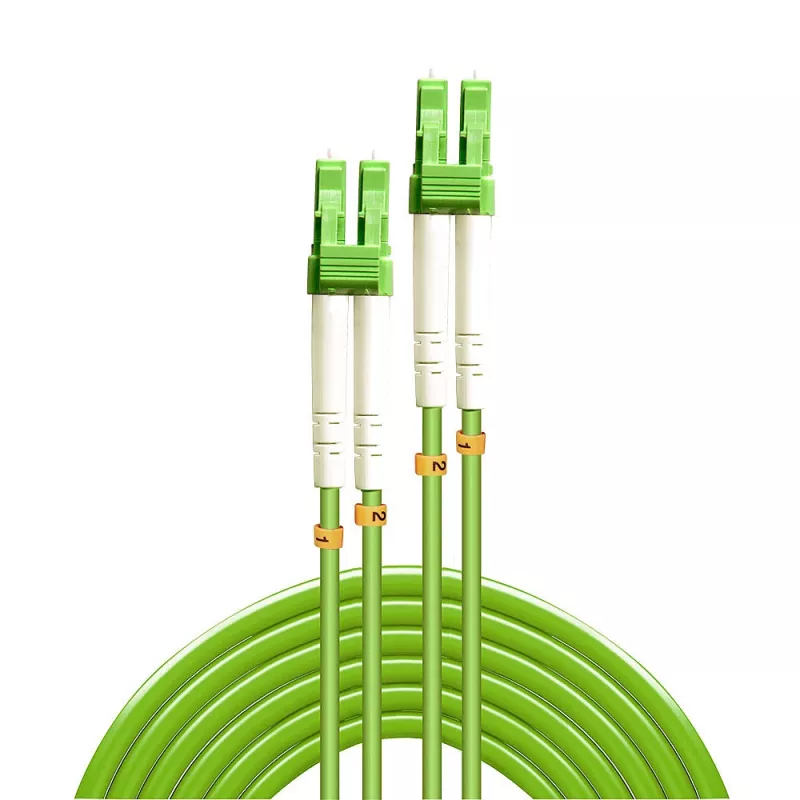

Cavo in fibra ottica Lindy 1m LC/LC, 50/125µm, OM5

The Lindy 1m Fibre Optic Cable LC/LC 50/125µm OM5 is a multimode patch cable designed for high-speed data transmission in telecom and network environments. With LC connectors on both ends and a 50µm core suitable for OM5 multimode applications, the cable supports modern bandwidth demands while minimising signal loss. Available in a 1 metre length, it offers a compact, flexible connection for short-run links between switches, servers and patch panels.

Advantages

The OM5 multimode fibre design provides low attenuation and consistent performance for high-bandwidth connections. LC connectors are compatible with standard fibre equipment and provide secure, compact mating. The 50/125µm core specification is appropriate for current multimode systems and supports reliable, low-loss links in data centre and telecom installations.

Suitable for

• Short-distance high-speed links in data centres
• Interconnects between switches, servers and patch panels
• Telecommunications and network backbone connections within buildings

Key specifications

• Connector type: LC to LC
• Core/cladding: 50/125 µm
• Fibre type: OM5 multimode
• Length: 1 m
• Brand: Lindy
• MPN: 46310
• EAN: 4002888463102

How to use

Ensure both equipment ports accept LC multimode connectors and are compatible with OM5 fibre. Remove protective caps from the connectors, align the LC connectors with the device ports and insert until they click. Route the cable to avoid sharp bends and mechanical stress; maintain the minimum bend radius recommended by the equipment or fibre manufacturer. Replace protective caps when disconnected to keep connector endfaces clean.

Recommendations

For best performance, handle connectors by the boot and avoid touching endfaces. Use appropriate fibre cleaning tools before insertion and keep cable bends gentle to prevent increased attenuation. Verify link performance with suitable testing equipment after installation.
