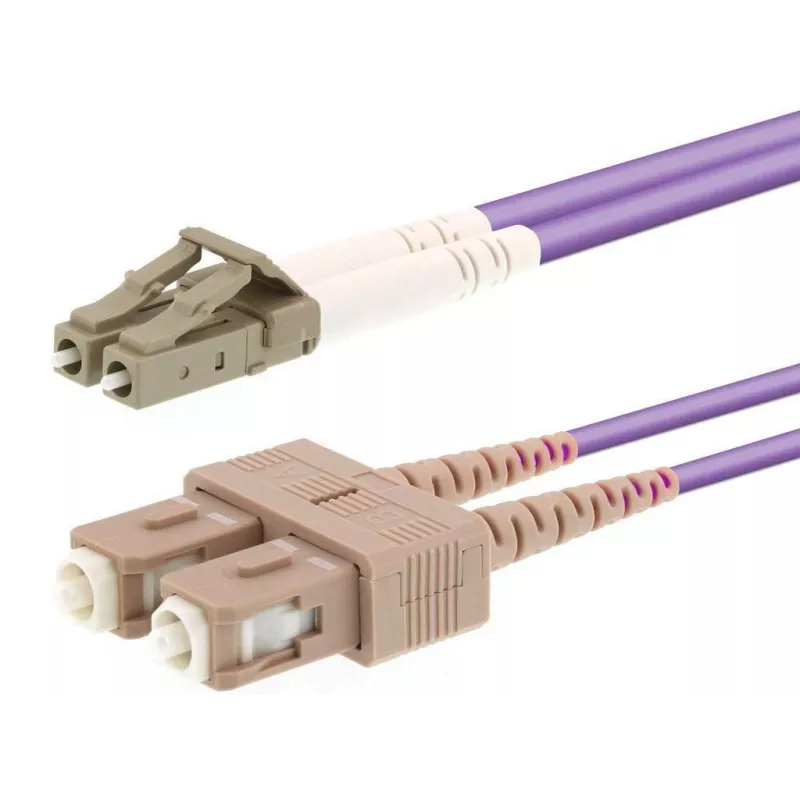

Cavo in fibra ottica LogiLink 0.5 m LC-SC

LogiLink 0.5m LC-SC fibre optic cable, duplex multimode with OM4 fibre (50/125 µm), designed for short-range high-speed data transmission. The cable has LSZH jacket in violet (3.0 mm Ø) and supports link distances up to 125 m at data rates up to 40 Gbit/s. It complies with DIN EN 50173-1 and IEC/ISO 11801 standards. Each cable is supplied with a measurement protocol documenting quality.

Advantages

The duplex jumper provides reliable multimode transmission with OM4 I-VH 2G 50/125 fibre for improved bandwidth and reduced modal dispersion. LSZH jacket minimizes smoke and toxic emissions in case of fire, while the compact 3.0 mm diameter and standardized LC and SC connector types ensure easy installation in patch panels and network equipment. Supplied measurement protocol allows verification of performance.

Suitable for

• Data centre patching and switch interconnects
• High-speed network links up to 40 Gbit/s
• Short-range backbone and horizontal cabling (up to 125 m)
• Telecommunication racks and fibre distribution panels

Key specifications

• Length: 0.5 m
• Fibre type: Multimode OM4 (50/125 µm)
• Connector: LC to SC (duplex)
• Jacket: LSZH, violet, Ø 3.0 mm
• Supported application: up to 40 Gbit/s / 125 m
• Standards: DIN EN 50173-1, IEC/ISO 11801
• Quality: Delivered with measurement protocol

How to use

Install the LogiLink LC–SC duplex fibre jumper by inserting the LC and SC connectors into the corresponding ports on your devices or patch panel. Ensure connectors and ports are clean before mating to avoid signal loss; use appropriate fibre cleaning tools. Route the cable without sharp bends and secure it to prevent strain on connectors. Verify the link performance using the supplied measurement protocol and, if needed, run optical tests with suitable test equipment.

Recommendations

For optimal performance, keep bend radius above the manufacturer’s minimum, avoid contaminating connector endfaces, and use the cable for short-range multimode links where OM4 bandwidth advantages are required. Retain the measurement protocol for installation records.
