Cavo in fibra ottica LogiLink 1 m LC - LC FP4LC01

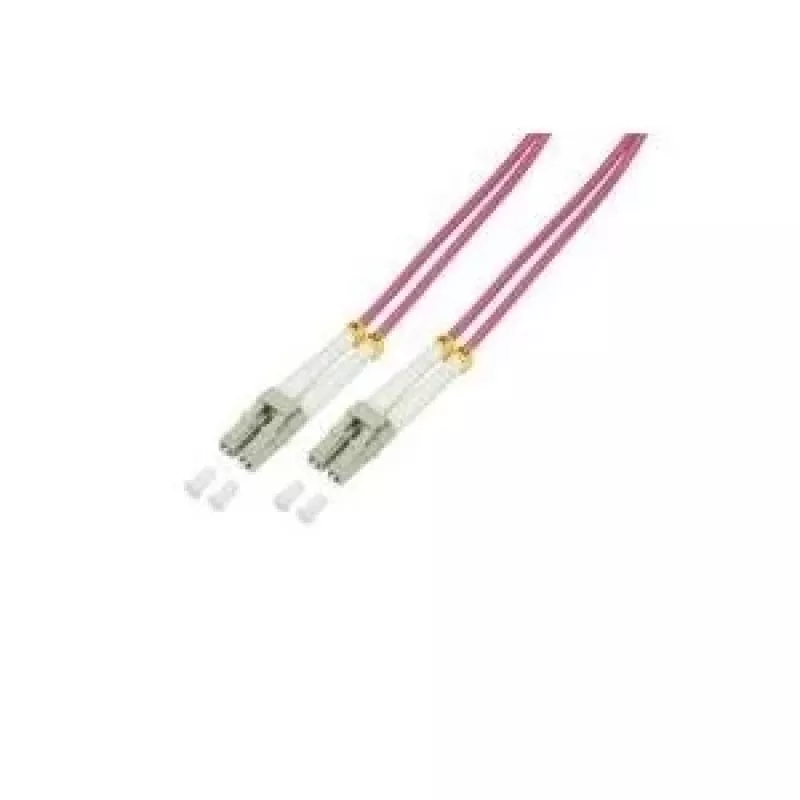

The LogiLink 1m LC - LC fibre optic cable FP4LC01 is a 1-metre duplex multimode jumper designed for high-speed data transmission. It uses OM4 I-VH 50/125 µm fibre with a violet LSZH jacket (3.0 mm Ø) and is intended for short-reach, high-bandwidth links such as data centre interconnects and network equipment connections.

Advantages

This LC–LC OM4 duplex cable supports up to 40 Gbit/s over distances up to 125 m, complies with DIN EN 50173-1 and IEC/ISO 11801 standards, and is delivered with an individual measurement protocol for quality verification. The LSZH jacket reduces smoke and toxic emissions in case of fire, while the 3.0 mm diameter provides a balance of flexibility and durability for routine installation and routing.

Suitable for

• Short-reach high-bandwidth links in data centres
• Connections between network switches, routers and transceivers
• Server-to-switch and patch-panel connections
• Multimode fibre installations requiring OM4 performance

Key specifications

• Product: LogiLink fibre optic cable LC–LC, model FP4LC01
• Length: 1 m
• Fibre type: Multimode I-VH 50/125 µm (OM4)
• Configuration: Duplex jumper (LC–LC)
• Jacket: LSZH, erika violet, Ø 3.0 mm
• Application: up to 40 Gbit/s / 125 m
• Standards: DIN EN 50173-1, IEC/ISO 11801
• Quality: Supplied with individual measurement protocol

How to use

Verify connector types (LC) on both devices before installation. Handle the fibre ends carefully to avoid contamination; remove dust caps only when connecting. Route the cable avoiding tight bends and mechanical stress; maintain bend radius recommended by the equipment manufacturer. Connect LC connectors into corresponding LC ports until they click to ensure proper seating. If required, check link performance using appropriate test equipment and the supplied measurement protocol.

Recommendations

For reliable performance, keep connectors clean and store unused ends with dust caps. Use within the specified 125 m range for 40 Gbit/s applications and choose OM4 multimode transceivers compatible with LC connectors.
