Cavo in fibra ottica Microconnect FIB224015 15 m SC giallo

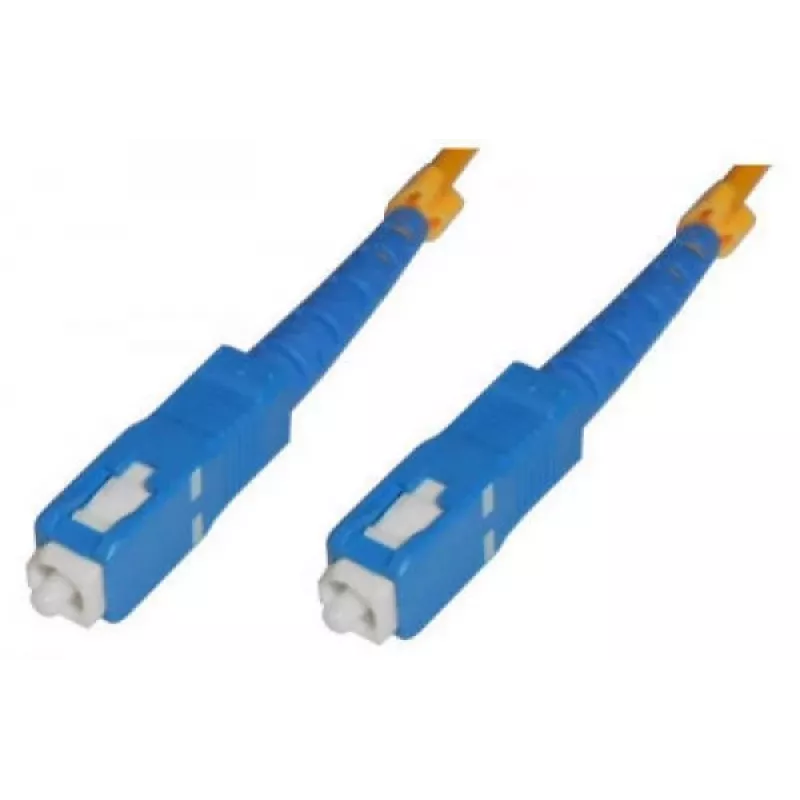

The Microconnect FIB224015 is a 15 m SC-to-SC single mode (OS2) fibre optic cable in yellow, designed for high-speed data transmission in enterprise and telecom environments. With a 9 µm core diameter, this cable supports 1G/10G/40G/100G Ethernet links and is suitable for connecting equipment in server rooms, cloud storage networks and other installations requiring reliable fibre jumper cables. The OS2 single mode construction allows data transport up to 10 km at 1310 nm and up to 40 km at 1550 nm. The cable uses LSZH jacket materials and conforms to IEC, EIA/TIA or Telcordia standards.

Advantages

Microconnect FIB224015 offers low attenuation and stable signal transmission thanks to its OS2 single mode fibre and 9 µm core. The SC–SC connectors provide a simple, push-pull connection compatible with common networking equipment. The 15 m length and yellow LSZH jacket make cable management easier and improve visibility in racks and cable runs. Compliance with industry standards ensures interoperability and predictable performance.

Suitable for

• Enterprise network backbone connections
• Telecom rooms and patch panels
• Server farms and data centre links
• Cloud storage and high-speed Ethernet links (1G–100G)
• Long-distance interconnects up to 10 km (1310 nm) or 40 km (1550 nm)

Key specifications

• Brand: MicroConnect
• Model / MPN: FIB224015
• Length: 15 m
• Connector 1: SC
• Connector 2: SC
• Fibre type: Single mode OS2
• Core diameter: 9 µm
• Colour: Yellow
• Weight: 0.058 kg
• Jacket: LSZH
• Standards: IEC, EIA/TIA or Telcordia compliant

How to use

Inspect both SC connectors and the cable jacket for visible damage before installation. Insert each SC connector into the appropriate SC adapter or port until it clicks to ensure a secure connection. Route the 15 m cable through cable management trays or ties to avoid sharp bends and excessive tension—maintain the manufacturer’s minimum bend radius. For long-distance links, verify optical budget and use compatible transceivers operating at 1310 nm or 1550 nm depending on required reach.

Recommendations

Store and handle the LSZH-jacketed fibre cable in a dry environment and avoid tight coils; clean connector end-faces with a suitable fibre-optic cleaning tool before mating to reduce insertion loss and prevent damage.
