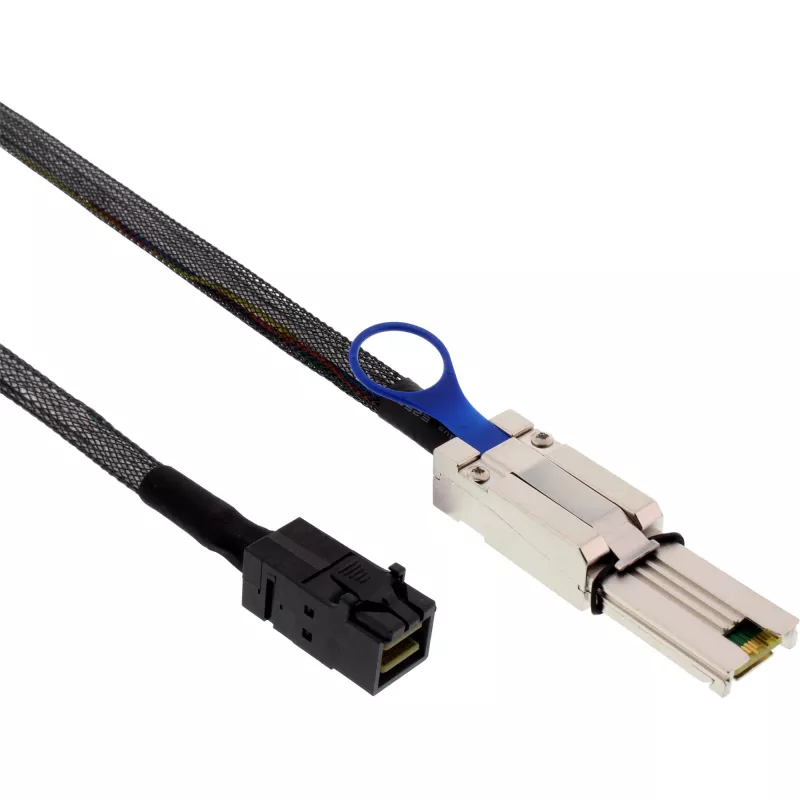

Cavo InLine Mini SAS HD SFF-8643 su SFF-8088 2 m

The InLine Mini SAS HD Cable SFF-8643 to SFF-8088 2m is a two-meter high-density SAS adapter cable designed to connect devices with a Mini SAS HD 4i (SFF-8643) interface to devices or controllers using an external SAS SFF-8088 connector. It is intended for high-speed, multi-channel SAS data transmission between host controllers, backplanes and storage enclosures.

Advantages

This Mini SAS HD adapter cable provides a standardized connection between internal Mini SAS HD ports and external SFF-8088 ports, supporting multiple data channels for efficient data throughput. Its 2 m length offers flexibility in rack and server layouts, and the InLine build ensures compatibility with common SAS controllers and backplanes used in storage systems.

Suitable for

• Connecting a Mini SAS HD (SFF-8643) host or controller to an external SAS device with SFF-8088
• Linking server backplanes to external RAID enclosures or JBOD arrays
• Data-centre and enterprise storage setups requiring SAS connectivity

Key specifications

• Connector A: Mini SAS HD 4i (SFF-8643)
• Connector B: SAS SFF-8088
• Length: 2 m
• Brand: InLine
• MPN: 27636C
• EAN: 4043718288090

How to use

Align the SFF-8643 plug with the Mini SAS HD 4i socket on the host or controller and insert firmly until it seats. Connect the SFF-8088 end to the external SAS port on the enclosure or cable assembly. Ensure both ends are fully inserted and secured where applicable. Power off equipment when making or changing SAS connections if recommended by the device manufacturer.

Recommendations

Use the cable in environments that match the device specifications and maintain appropriate cable bend radius. Avoid twisting or excessive pulling and keep connectors free from dust. For optimal performance, use with SAS-compatible controllers and firmware that support the required link speeds.
