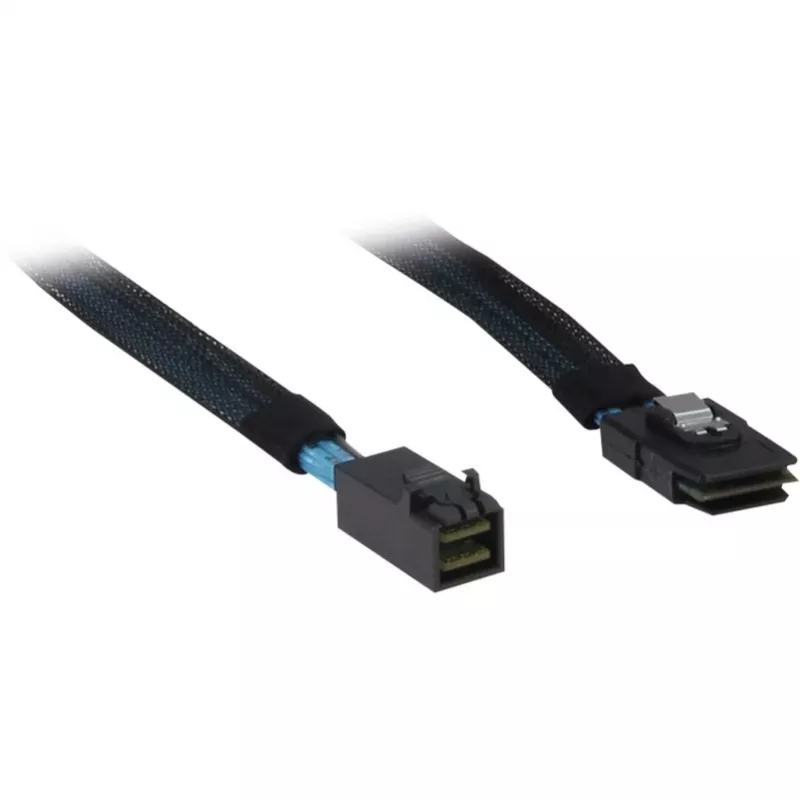

Cavo Inter-Tech 0,75 m SFF 8643/SFF 8087

Cable SFF 8643 to SFF 8087 is a data connection cable designed to link devices that use Mini-SAS HD (SFF-8643) to those with the older Mini-SAS (SFF-8087) connector. It provides a direct electrical pathway for SAS/SATA signals, allowing compatibility between equipment generations in storage systems and servers.

Advantages

The SFF 8643 to SFF 8087 cable enables interoperability between newer Mini-SAS HD ports and legacy Mini-SAS ports without requiring adapter cards. It preserves signal integrity for high-speed SAS connections and simplifies hardware upgrades by avoiding full system replacements. The cable is compact and suitable for short to medium internal connections in server enclosures.

Key specifications

• Connector A: SFF-8643 (Mini-SAS HD)
• Connector B: SFF-8087 (Mini-SAS)
• Function: SAS/SATA signal transmission between Mini-SAS HD and Mini-SAS ports
• Typical use: Internal server or storage enclosure connections

How to use

Power down the equipment before connecting. Insert the SFF-8643 end into the Mini-SAS HD port and the SFF-8087 end into the Mini-SAS port, ensuring correct orientation and a secure fit. Route the cable to avoid tight bends and interference with cooling airflow. After connections are made, power on the devices and verify link status within the host controller or RAID management utility.

Recommendations

Choose the appropriate cable length for internal routing to minimize excess slack; for critical installations, verify compatibility with your controller or backplane documentation and use cable lengths that meet the manufacturer's signal integrity guidelines.
