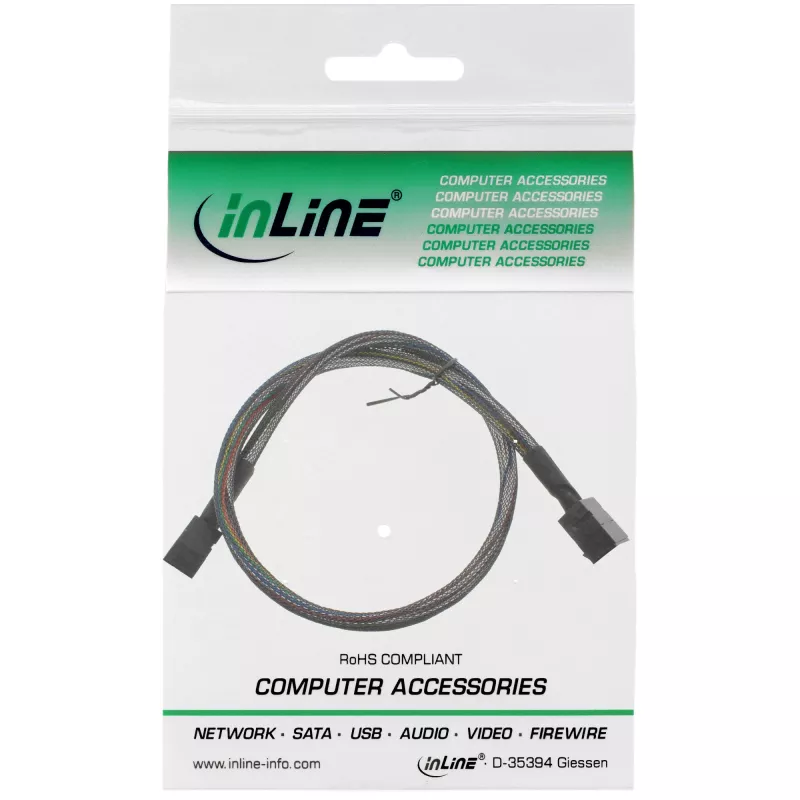

Cavo Mini SAS HD InLine SFF-8643 a SFF-8643 con Sideband 0,5 m

High data rate:Supports transfer speeds of up to 4x 12Gb/s for high-performance storage and server applications.
Professional connection technology:Mini-SAS HD (SFF-8643) connectors on both sides for internal use in server and workstation environments.
Reliable performance:Optimized for continuous use in data centers, NAS systems, and mission-critical IT solutions.
Easy integration:Ideal for system houses and administrators who need to connect SAS controllers to backplanes.

The InLine® Mini-SAS HD cable (SFF-8643 to SFF-8643) provides a reliable and powerful connection for professional server and storage environments. With support for up to 4x 12Gb/s, it is ideal for use in high-performance computers, data centers, and NAS systems where large amounts of data need to be transferred quickly and securely.
With Mini-SAS HD connectors (SFF-8643) on both ends, the cable is specially designed for internal use and enables direct connection of SAS controllers to backplanes. This ensures stable and low-loss signal transmission—a decisive advantage for administrators who depend on maximum operational reliability.
Whether for individual server configurations, the expansion of storage solutions, or the construction of complex data systems, this cable provides the flexibility and reliability required by modern IT infrastructures.
This makes the InLine® Mini-SAS HD cable the first choice for companies that value high-performance and future-proof connection technology.

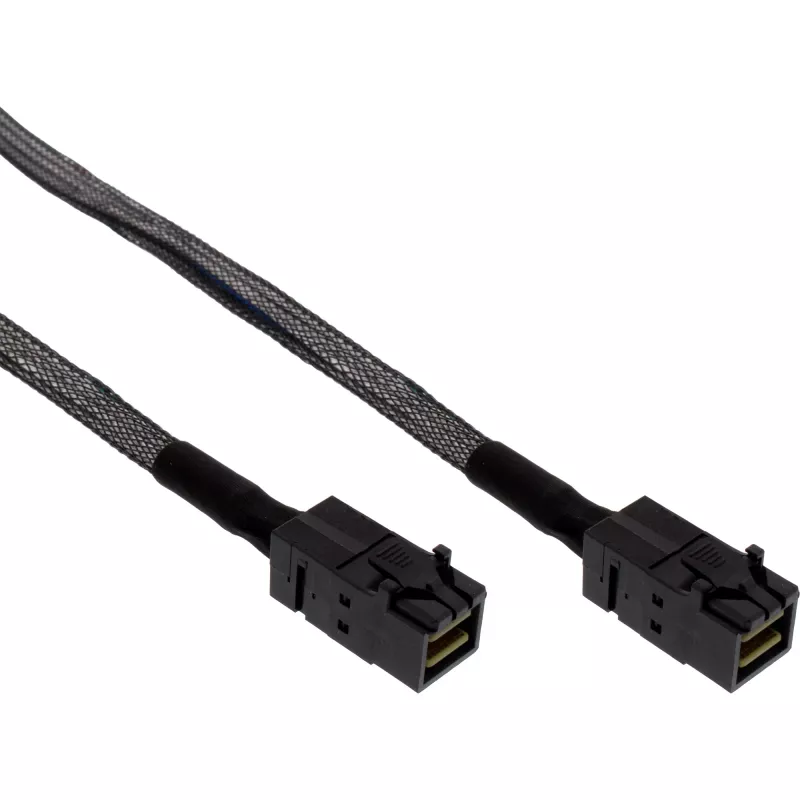

Connection: Mini-SAS HD plug (SFF-8643) to Mini-SAS HD plug (SFF-8643)
Type: internal cable
Data transfer: up to 4x 12Gb/s

InLine Mini SAS HD Cable SFF-8643 to SFF-8643 with Sideband 0.5m. Cable length: 0.5 m, Connector 1: SFF-8643, Connector 2: SFF-8643. Dimensions (WxDxH): 10 x 500 x 10 mm. Package width: 160 mm, Package depth: 185 mm, Package height: 18 mm. Package volume: 300 cm³

How to use

Power off the system before installing the cable. Align each SFF-8643 connector with the corresponding Mini SAS HD 4i port on the controller and the backplane or device, and insert until it seats securely. Route the cable inside the chassis to avoid sharp bends and to maintain airflow. Verify the system recognizes connected storage devices after powering on.

Recommendations

Use this 0.5 m Mini SAS HD cable for internal, short-distance connections inside servers or storage chassis. Avoid external or outdoor use and protect the connectors from dust and mechanical stress when handling.
