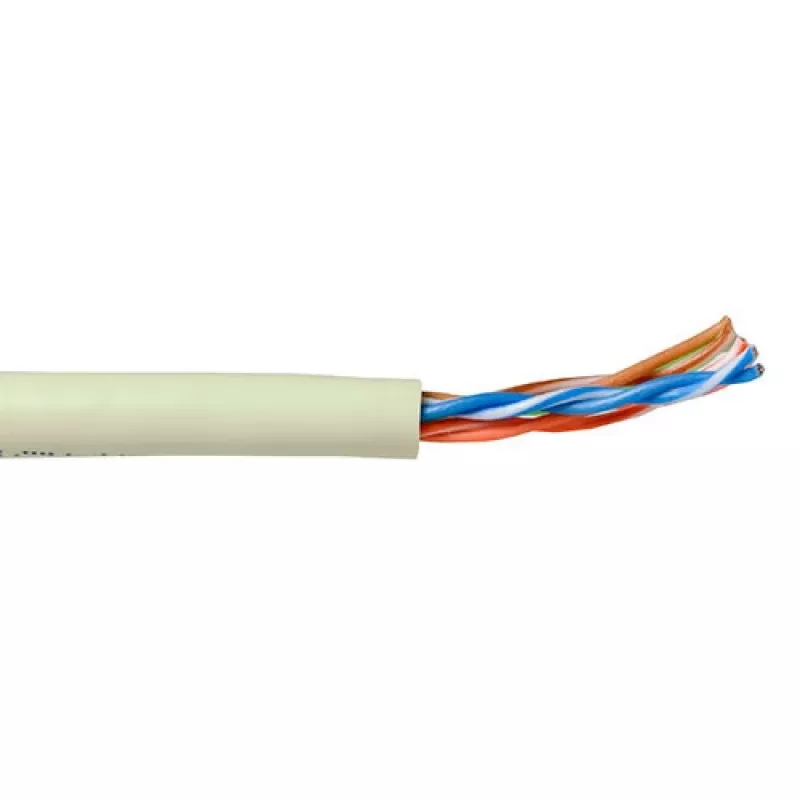

Cavo patch ACT CAT5E U/UTP a trefoli 305 m beige

The ACT CAT5E U/UTP stranded patch cable in beige is a 305 m installation cable designed for reliable data transmission in Ethernet networks. The cable uses four twisted pairs of AWG24 stranded copper conductors with a PVC jacket and a 5.6 mm overall diameter, providing flexibility for routing and ease of installation in patch panels, cable trays or conduits.

Advantages

Stranded AWG24 conductors improve flexibility compared with solid-core cable, making handling and frequent movement easier during installation. The U/UTP construction (unshielded) offers standard Cat5e performance for voice and data applications while the PVC sheath provides mechanical protection and resistance to everyday wear. The 305 m reel length reduces the need for joins and speeds up larger installations.

Suitable for

• Horizontal and vertical LAN cabling in offices and data closets
• Patch panels, switches and network device interconnections
• Temporary or movable network connections where cable flexibility is required

Key specifications

• Cable: 4 x 2 x 0.14 mm²
• Conductor type: Stranded copper AWG24
• Pair colours: Blue/White, Orange/White, Green/White, Brown/White
• Construction: U/UTP (unshielded twisted pairs)
• Jacket material: PVC
• Overall diameter: 5.6 mm
• Length: 305 m
• Colour: Beige

How to use

Recommendations

For optimal performance, keep cable runs within specified Ethernet length limits (100 m for a single run between devices) and avoid placing the cable parallel to high-voltage power lines to minimize interference. Use proper strain relief at terminations and store unused reel length on a spool to prevent kinks.
