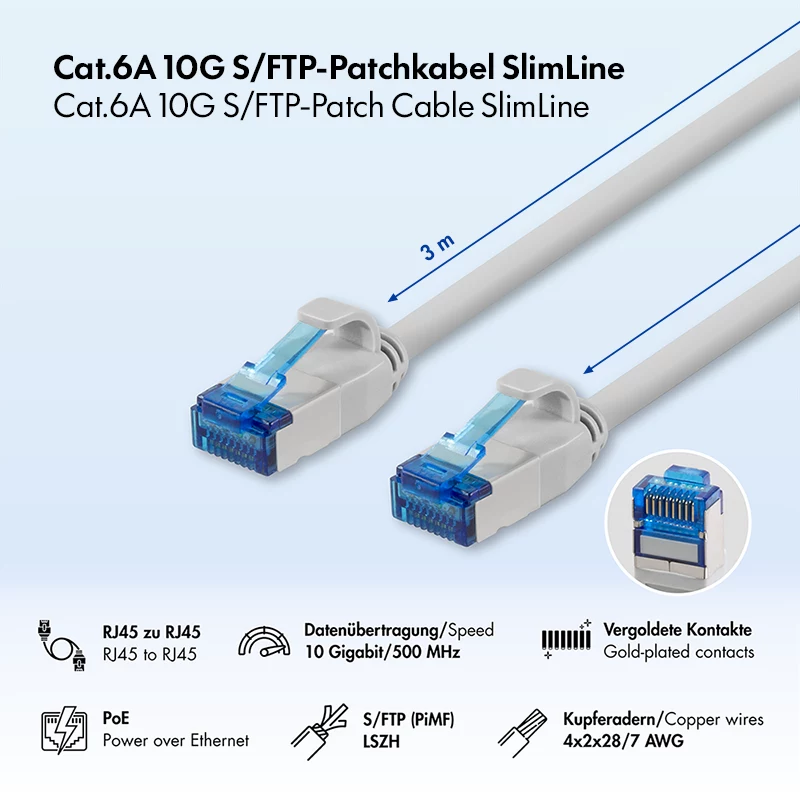

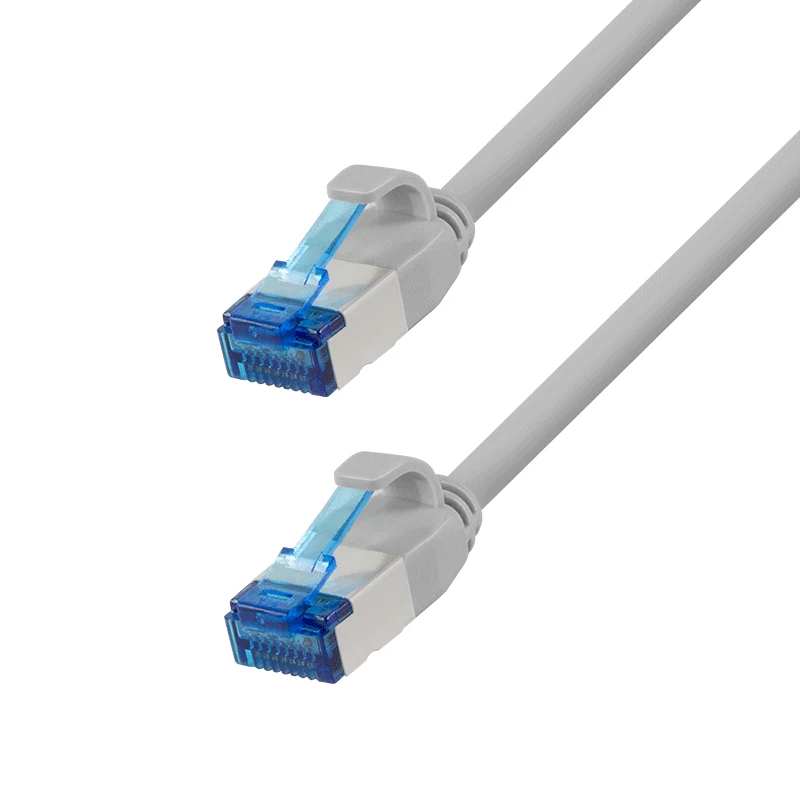

Cavo patch Cat.6A Slim S/FTP LSZH LogiLink, grigio, 3 m, SlimLine

High-density network installations often suffer from cable bulk, poor airflow, and difficult management. The LogiLink Cat.6A Slim S/FTP LSZH Patch Cable solves these challenges with a slim 3.8 mm outer diameter while delivering full 10 Gigabit Ethernet performance. Its S/FTP shielding (pairs in metal foil plus overall braid) provides superior protection against alien crosstalk and electromagnetic interference, ensuring reliable data transmission up to 500 MHz. The LSZH jacket emits low smoke and zero halogen in case of fire, making it safe for enclosed spaces. With a length of 3 metres and a grey colour, this cable is ideal for connecting servers, switches, patch panels, and workstations in data centres, offices, and industrial environments.

Who is it for

This cable is perfect for network administrators, system integrators, and IT professionals who need high-performance connectivity in space-constrained racks or cable trays. It is also suitable for businesses upgrading to 10GBASE-T networks, as well as for home users with high-bandwidth requirements such as 4K video streaming, online gaming, or large file transfers.

Main features

• Cat.6A performance: supports 10 Gigabit Ethernet up to 500 MHz bandwidth

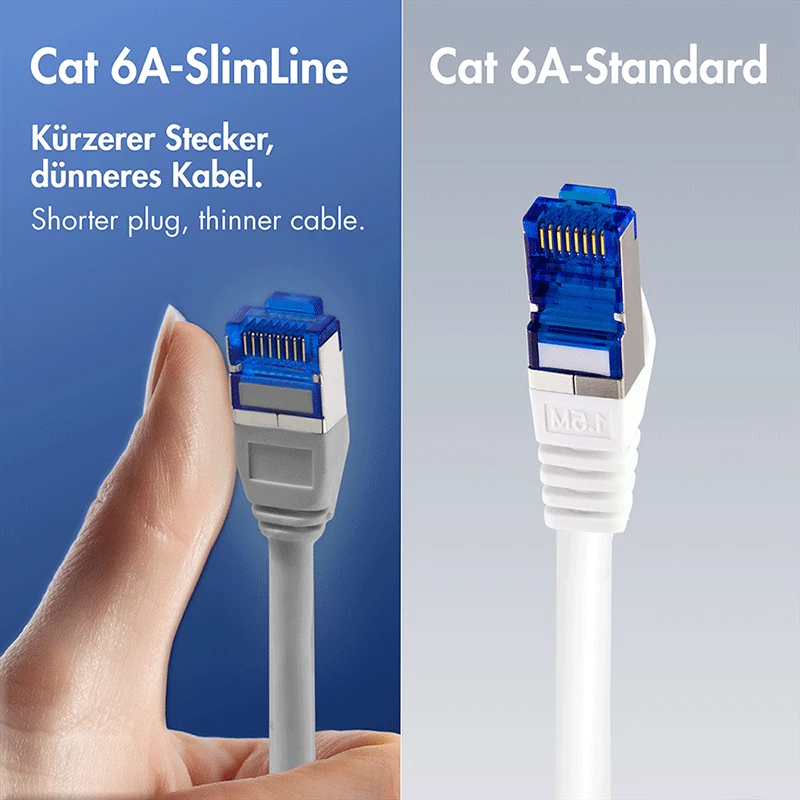

• SlimLine design: only 3.8 mm outer diameter for improved airflow and easier cable management
• S/FTP shielding: each pair individually foil-shielded plus overall braid for maximum noise immunity
• LSZH jacket: low smoke zero halogen for enhanced fire safety
• Snagless boot: protects the locking tab during installation and removal
• Gold-plated contacts: 50µ gold plating for reliable connections and corrosion resistance

Specifications

• Cable type: Cat.6A S/FTP patch cable (Class EA)
• Shielding: S/FTP (PIMF) – pairs in metal foil, overall braid
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Length: 3.00 m
• Colour: Grey
• Connectors: RJ45 male to RJ45 male
• Data transfer rate: 10 Gbps (10GBASE-T)
• Bandwidth: 500 MHz
• Conductor material: Copper
• Conductor gauge: AWG 30/7 (stranded)
• Cable construction: 4x2 AWG 30/7
• Outer diameter: approx. 3.8 mm (SlimLine)
• Wiring standard: TIA/EIA 568B
• Connector features: Snagless boot, gold-plated contacts (50µ)
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-B.2-10

Tips

For best performance, avoid bending the cable beyond its minimum bend radius and keep it away from sources of high electromagnetic interference. When routing multiple cables, use cable managers to maintain the slim profile and improve airflow.
