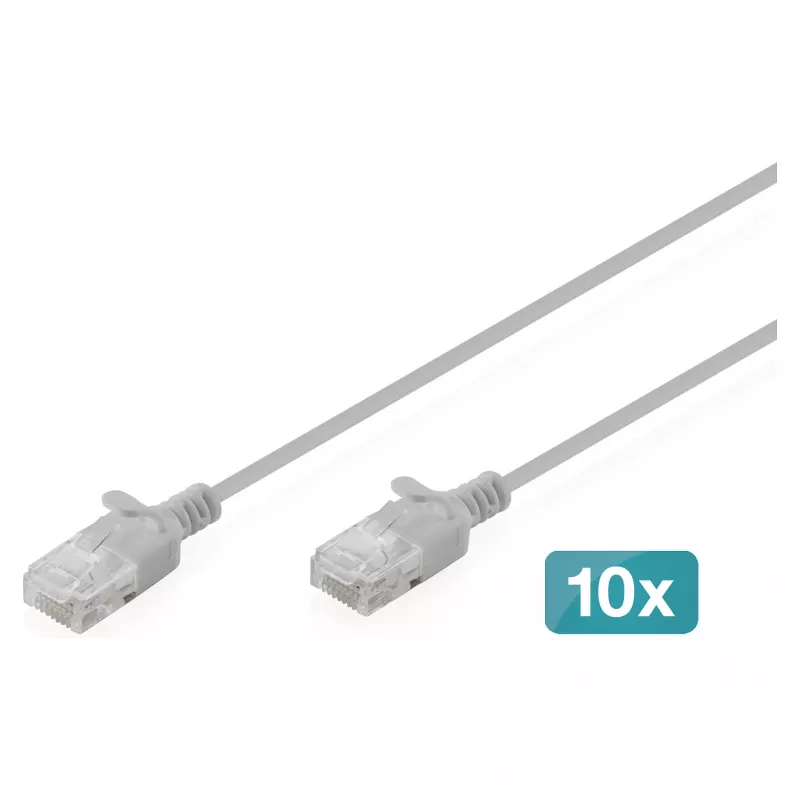

Cavo patch di rete DIGITUS CAT 6 U-UTP sottile 0,5 m grigio, confezione da 10

DIGITUS CAT 6 U-UTP Slim 0.5 m gray, pack of 10 are a set of ten slim unshielded twisted-pair patch cables designed for short patching runs and high-density cabling. Each 0.5 m cable supports CAT6 performance with transmission frequency up to 250 MHz and Gigabit Ethernet data rates. The reduced outer diameter and flexible LSZH jacket make these cables suitable for tight spaces in patch panels, switch cabinets and office installations while maintaining compatibility with standard RJ45 ports and EIA/TIA 568B wiring.

Advantages

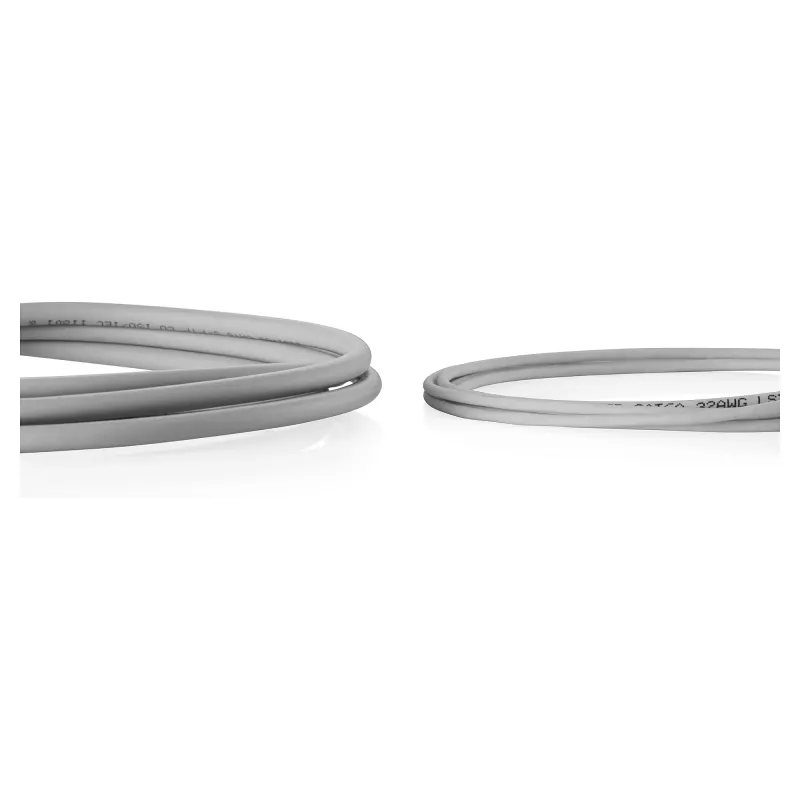

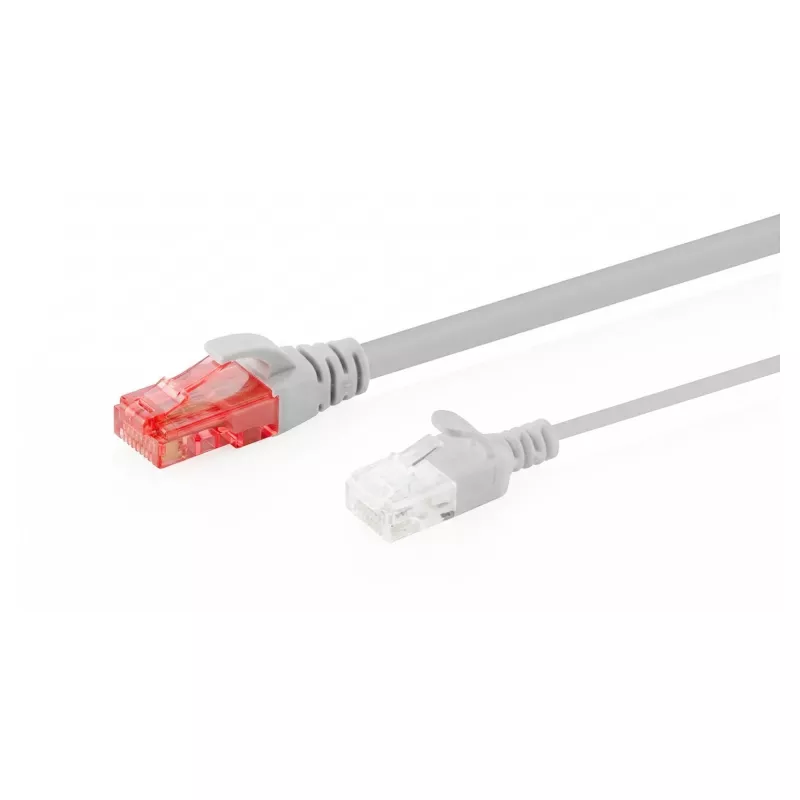

The slim construction (approximately 2.7 mm total diameter) and flexible jacket allow space-saving routing and improved cable management without compromising electrical performance. Stranded AWG 32/7 bare copper conductors provide flexibility for repeated mating and movement, while molded anti-kink sleeves with strain relief and locking lever protection reduce the risk of connector damage. The LSZH outer casing limits smoke and toxic gas emissions in case of fire and the cables comply with relevant CAT6 standards for predictable, reliable operation.

Suitable for

• Short horizontal connections between switches, patch panels and workstations
• Patching in server rooms and data cabinets with limited space
• Office and home Gigabit LAN installations
• Environments requiring PoE and PoE+ powered devices

Key specifications

• Category: CAT6 U-UTP (unshielded twisted pair)
• Length: 0.5 m per cable (pack of 10)
• Conductor: stranded bare copper AWG 32/7
• Insulation material: HD-PE
• Outer jacket: LSZH (Low Smoke Zero Halogen)
• Total diameter: approx. 2.7 mm ± 0.15 mm
• Frequency: up to 250 MHz
• Data rate: up to 1 Gbit/s (1000BASE-T)
• Connector: RJ45 plug with molded anti-kink sleeve and strain relief
• Wiring: EIA/TIA 568B, 1:1 pin assignment
• Bending radius: 15 × outer diameter
• Operating temperature: -20 °C to +60 °C
• Flame retardancy and smoke emission: IEC 60332-1, IEC 61034
• Typical mating cycles: up to 750 mating cycles
• Typical applications: 10BASE-T, 100BASE-T, 1000BASE-T

How to use

Connect one RJ45 plug to the network device (switch, router or patch panel) and the other RJ45 plug to the target port on the connected equipment. Ensure the locking lever is fully engaged and the molded strain relief is seated to reduce mechanical stress on the connector. Use the 0.5 m length for short patching runs to keep cable bundles neat and to minimise excess slack in high-density environments. Do not exceed the recommended bending radius near the connector to preserve signal integrity.

Recommendations

For optimal performance, route the slim patch cables away from strong electromagnetic sources and avoid sharp bends or kinks. When deploying Power over Ethernet (PoE) devices, verify that connected equipment complies with PoE/PoE+ specifications and that power dissipation within bundled cables remains within safe limits. Replace cables showing visible damage to the jacket or connectors to maintain network reliability.
