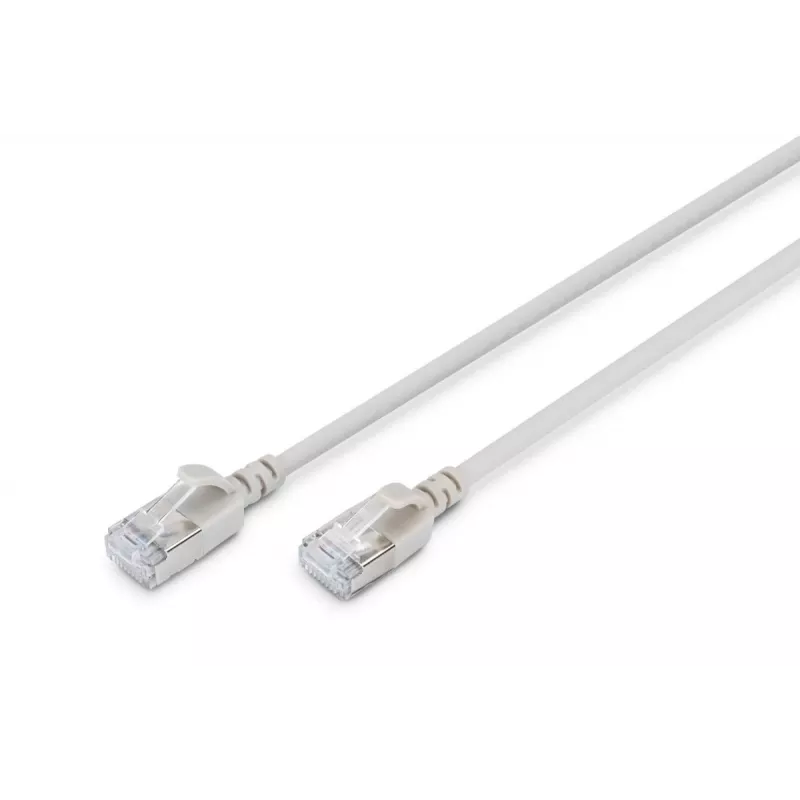

Cavo patch Digitus CAT 6A classe Ea F/FTP DK-1632-A-015S

Patch Cable Digitus CAT 6A class Ea F/FTP DK-1632-A-015S is a slim, high-performance network cable with a length of 1.5 m designed for data transmission up to 10 000 Mbit/s (10 Gbit/s). The F/FTP shielding and twisted pair construction provide reliable signal integrity and reduced interference. The cable has RJ-45 connectors with bronze/gold plating, a copper conductor and an LSZH (low smoke zero halogen) jacket. Its slim and flexible design allows easy routing in confined spaces and makes it suitable for data centers, high-density installations and home offices.

Advantages

The DIGITUS CAT 6A patch cable combines a small outer diameter and flexible jacket for effortless installation in tight cable channels. It meets ISO/IEC 11801 and DIN EN 50173 CAT 6A standards and is tested to 500 MHz, including near-end crosstalk (NEXT) performance. The molded anti-kink sleeve with strain relief and locking lever protection prevents plug damage and cable kinking. PoE+ compatibility supports powered devices.

Suitable for

• Data centers and server racks
• High-density network cabinets and patch panels
• Home offices and small business workstations
• Applications requiring PoE+ power delivery

Key specifications

• Standard: CAT 6A class Ea (ISO/IEC 11801, DIN EN 50173)
• Shielding: F/FTP (foil overall with foil on each pair)
• Transmission speed: up to 10 000 Mbit/s (10 Gbit/s)
• Frequency: tested up to 500 MHz
• Length: 1.5 m
• Connectors: RJ-45 — bronze/gold plated
• Conductor: Copper (Cu)
• Jacket: LSZH (Low Smoke Zero Halogen)
• Colour: Grey

How to use

Connect one RJ-45 plug to the network device (switch, router or NIC) and the other RJ-45 plug to the corresponding port on the patch panel, server or workstation. Route the slim cable through cable management channels or tight spaces as needed. Ensure connectors are fully inserted until the locking tab engages and avoid sharp bends at the connector stress relief to preserve signal performance.

Recommendations

For optimal performance, use this CAT 6A F/FTP patch cable in shielded or grounded environments and maintain bend radii recommended by the manufacturer. Avoid running the cable in parallel with high-voltage power lines to reduce electromagnetic interference.
