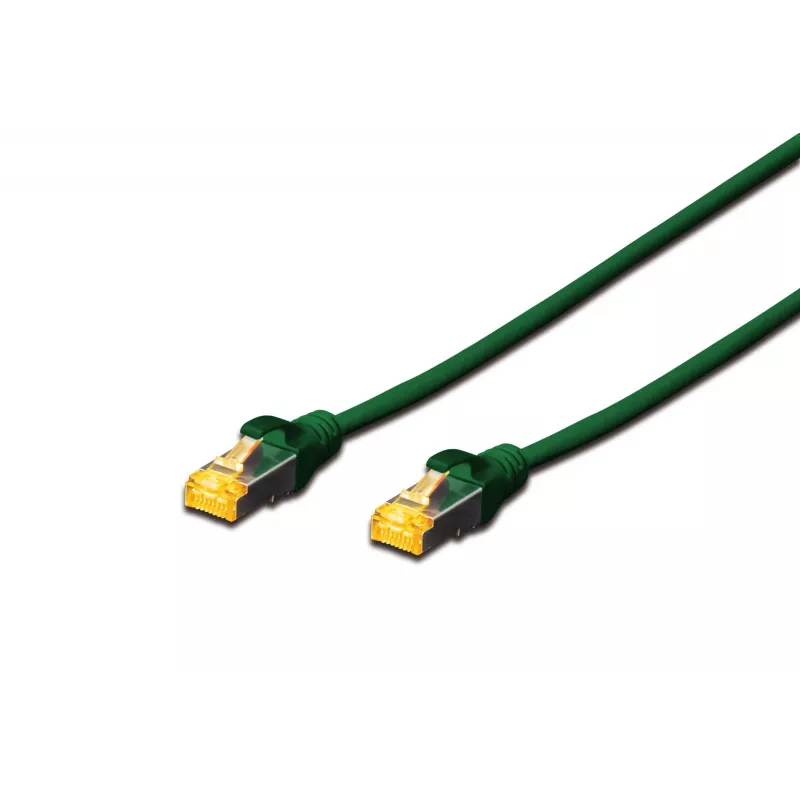

Cavo patch Digitus CAT 6A S/FTP DK-1644-A-010/G 1 m verde

The DIGITUS Patch cord CAT 6A S/FTP DK-1644-A-010/G is a 1 m network cable with copper conductors and S/FTP shielding, designed to meet ISO/IEC 11801 and DIN EN 50173 Category 6A (Class EA) standards. The cable features a transparent yellow RJ-45 plug with metal shielding for easy identification of Category 6A and a green LSZH-sheathed jacket that provides low smoke and zero halogen behavior in case of fire. The cord is PoE+ ready and tested for performance up to 500 MHz.

Advantages

The cable offers high transmission performance up to 500 MHz with tested characteristics such as NEXT (near end crosstalk). Its LSZH outer sheath ensures reduced smoke and absence of halogen emissions in the event of fire. Molded boots with kink protection, strain relief and a latch-protection feature on the connector increase durability and reduce the risk of latch breakage. The transparent yellow connector with metal shielding allows quick visual identification as Category 6A.

Suitable for

• High-speed Ethernet connections in office and data center environments
• PoE/PoE+ powered devices such as IP phones, access points and cameras
• Structured cabling installations requiring Category 6A/Class EA compliance

Key specifications

• Standard: ISO/IEC 11801, DIN EN 50173 Category 6A (Class EA)
• Shielding: S/FTP (overall foil + individually shielded pairs)
• Conductor material: Copper (Cu)
• Frequency range: up to 500 MHz
• Length: 1 m
• Connectors: RJ-45 to RJ-45, metal-shielded plugs
• Jacket: LSZH (Low Smoke Zero Halogen)
• Colour: Green cable, transparent yellow connector
• PoE: PoE+ ready

How to use

Plug one RJ-45 connector into the network device (switch, patch panel or wall socket) and the other into the target device (computer, access point, IP camera, etc.). Ensure connectors are fully inserted until the latch clicks. Route the cable to avoid sharp bends and mechanical strain; the molded boots provide additional kink protection and strain relief. Use within structured cabling channels that conform to Category 6A requirements to ensure tested performance.

Recommendations

For reliable Category 6A performance, keep cable runs within the recommended length limits for patch cords, avoid running parallel to high-voltage power lines, and install in environments that match the LSZH specification if low smoke emission is required.
