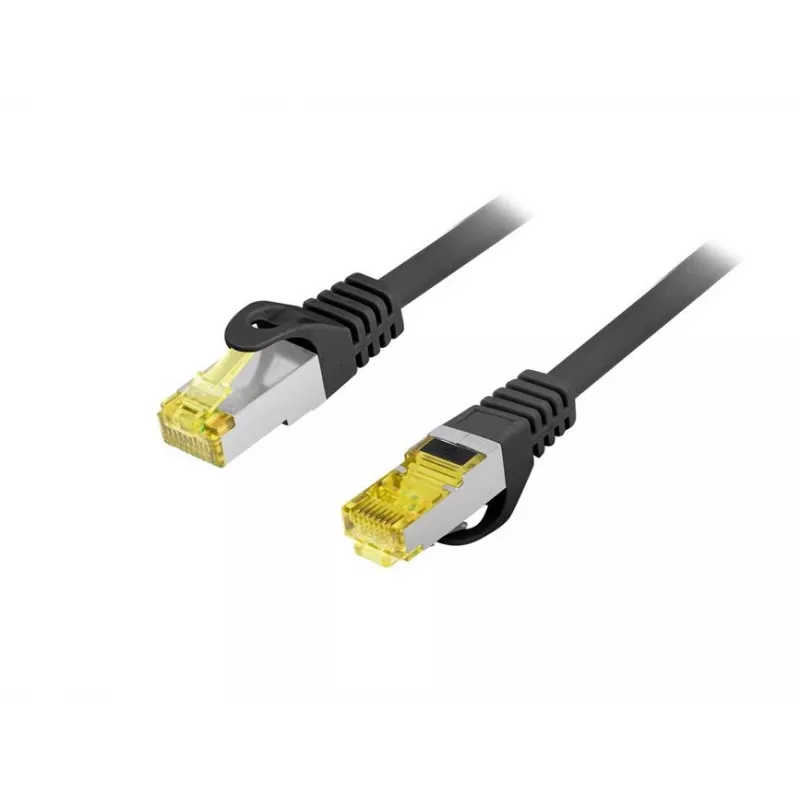

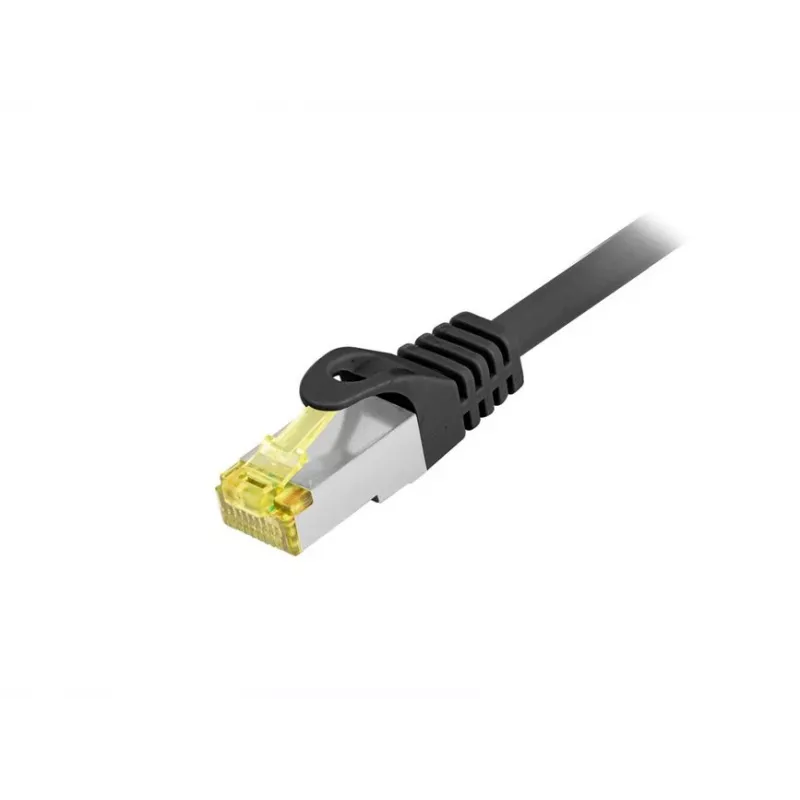

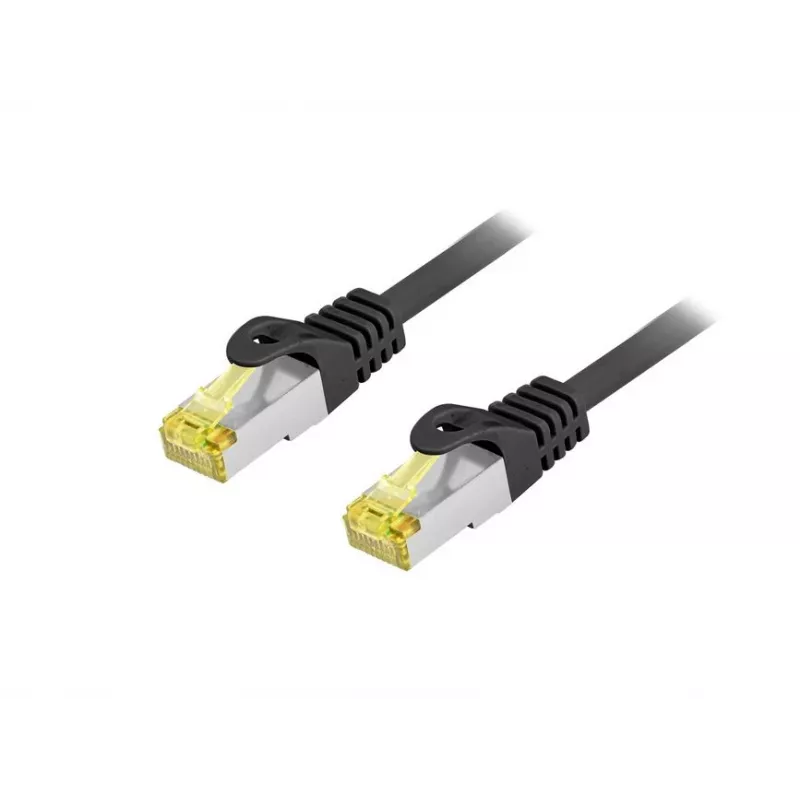

Cavo patch EQUIP Cat.6A S/FTP per esterni, 5,0 m, RJ-45–RJ-45, nero

The EQUIP Cat.6A S/FTP outdoor patch cable, 5.0 m, RJ-45–RJ-45 in black is built for high-speed outdoor data links where enhanced shielding and durable construction are required. Constructed with S/FTP (foil‑and‑braid) shielding and a stranded bare copper conductor, this Cat6a cable supports up to 10 Gbit/s and a 500 MHz bandwidth while resisting moisture, abrasion, UV and temperature extremes for reliable outdoor performance.

Advantages

S/FTP shielding with foil and braid reduces electromagnetic and radio‑frequency interference and limits crosstalk for stable connections in noisy environments. The LDPE outdoor jacket is oil and UV resistant and splash‑water protected, while the molded snagless boots with strain relief simplify installation and reduce connector stress. The cable is RoHS compliant and meets ISO/IEC 11801 and EN 50173 standards.

Suitable for

• Outdoor network links between routers, switches and wall ports
• Outdoor surveillance and CCTV systems
• IoT and industrial network connections exposed to weather
• High‑bandwidth applications such as video streaming, gaming and cloud services

Key specifications

• Length: 5 m
• Standard: Cat6a, Cat.6A S/FTP (S‑STP)
• Connectors: RJ‑45 straight male – RJ‑45 straight male
• Data rate: 10 000 Mbit/s (10 Gbit/s)
• Bandwidth: 500 MHz
• Conductor: stranded bare copper (4 x 2 AWG 27/7)
• Shielding: foil (PIMF) + braid
• Jacket: LDPE for outdoor, anti‑UV and oil resistant (IEC 60811‑2‑1)
• Ingress/chemical protection: splash water protected (IEC 60811‑1‑3)
• Operating temperature: -40 °C to 65 °C
• PoE / PoE+ compatible
• Colour: Black

How to use

Connect one RJ‑45 plug to your network device (router, switch or wall socket) and the other RJ‑45 plug to the remote device. Ensure connectors are fully inserted until the latch clicks to establish a secure connection. Route the cable avoiding sharp bends, excessive tension or prolonged contact with oily or hot surfaces. For outdoor runs, use appropriate cable clips or conduits and seal any entry points to prevent water ingress into building penetrations.

Recommendations

For longest service life outdoors, avoid prolonged exposure to direct sunlight where possible, secure the cable to prevent mechanical strain, and maintain operating temperature within the specified -40 °C to 65 °C range. Use with compatible Cat6a equipment and PoE/PoE+ devices as required.
