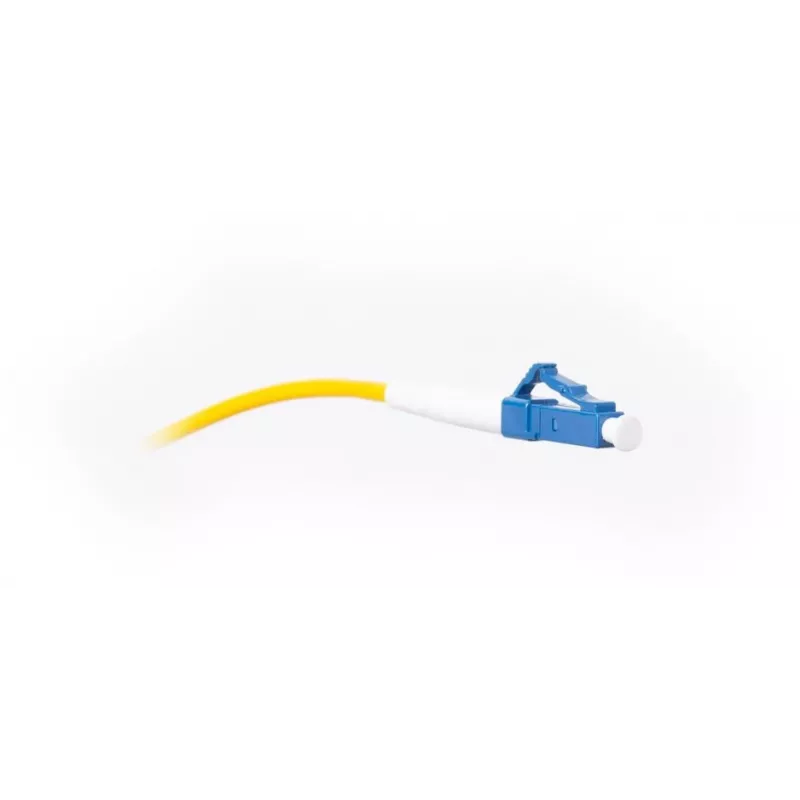

Cavo patch in fibra ottica GETFORT SM LC/UPC-LC/UPC simplex 2m

Single-mode fiber optic patch cord with LC/UPC connectors on both ends, delivering reliable low-loss connections over a 2-meter simplex cable. The UPC polishing ensures minimal back reflection, making it ideal for high-speed data transmission in demanding network environments.

Advantages

This patch cord features low insertion loss (≤0.3 dB) and high return loss (≥50 dB), guaranteeing stable signal integrity. The LSZH jacket provides excellent fire safety with low smoke and zero halogen emissions, while the yellow color allows easy identification of single-mode fiber. The 2.0 mm diameter cable is flexible and easy to route in tight spaces.

Suitable for

• Data centers
• Telecommunications networks
• LAN and FTTH deployments
• High-speed backbone connections

Key specifications

• Connector type: LC/UPC to LC/UPC
• Fiber mode: Single-mode (9/125 µm)
• Cable length: 2 meters
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB
• Jacket material: LSZH
• Operating temperature: -20°C to +70°C
• Compliance: RoHS, CE, IEC 61754-20, TIA/EIA-604-10

Recommendations

For optimal performance, ensure connectors are clean before mating and avoid excessive bending of the cable. This patch cord is an excellent choice for professionals seeking a dependable, standards-compliant single-mode connection.
