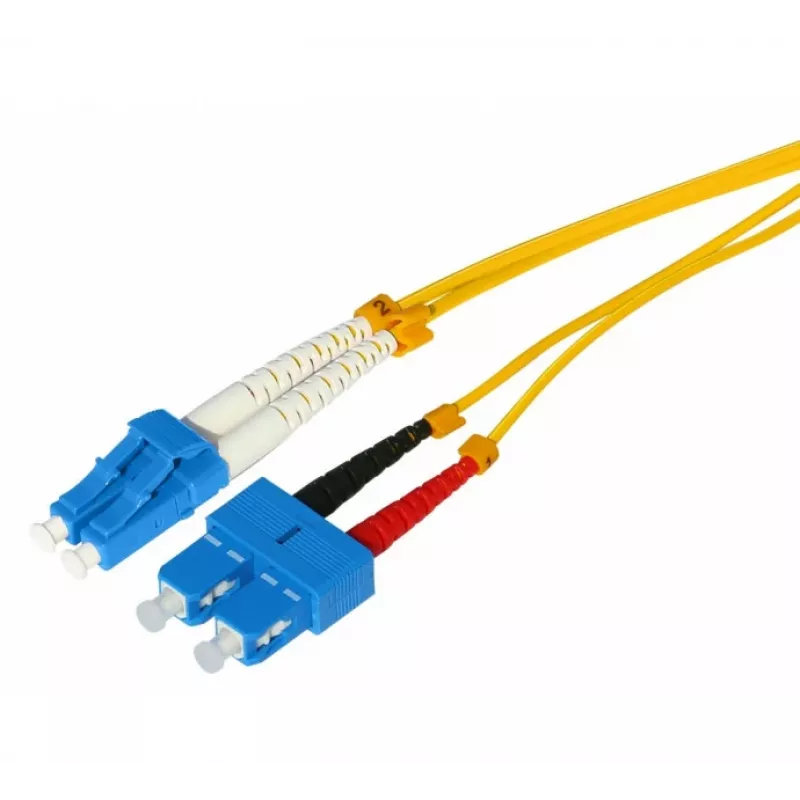

Cavo patch in fibra ottica Tecline HD, singlemode OS2, LC duplex su SC duplex, 9/125 µm, giallo, 0,5 m (799LS00)

In data centers and telecommunication rooms, unreliable fiber connections can cause downtime and signal loss. This Tecline HD patch cable provides a stable, low-loss link between network equipment with LC and SC duplex interfaces.

Who is it for

Network administrators and technicians who need a short, dependable singlemode patch cable for patching between panels, switches, or media converters in high-density environments.

Main features

• Singlemode OS2 fiber with 9/125 µm core/cladding for long-distance transmission.
• LC Duplex to SC Duplex connectors with UPC polish for low insertion loss.
• Yellow LSZH jacket for easy identification and low smoke emission.
• 0.5 m length ideal for neat, short interconnections.

Specifications

• Fiber type: Singlemode OS2, 9/125 µm
• Connectors: LC Duplex to SC Duplex, UPC polish
• Insertion loss: < 0.3 dB
• Return loss: > 50 dB
• Jacket material: LSZH
• Operating temperature: -20°C to 70°C

Tips

Keep bend radius above the recommended minimum to avoid signal attenuation. Use dust caps when the cable is disconnected to protect connector end faces.
