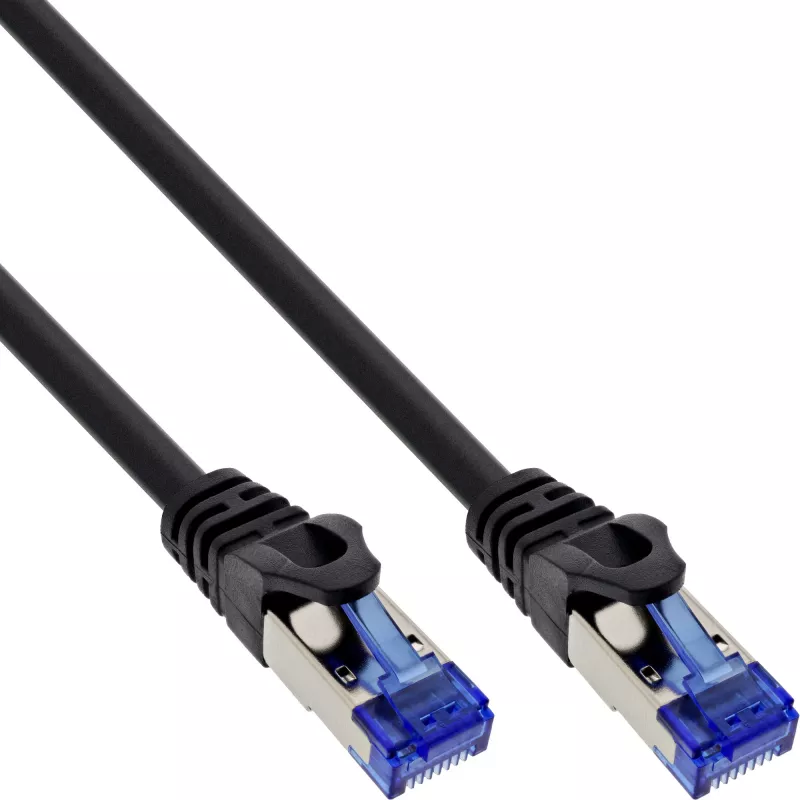

Cavo patch InLine corazzato U/FTP Cat.6A RJ-45 30 m nero

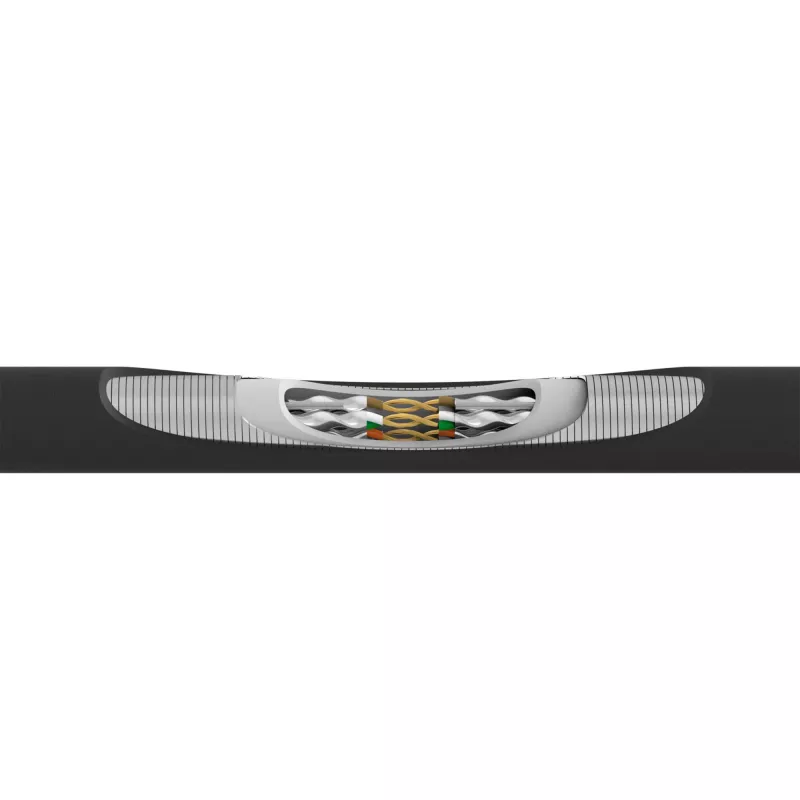

The InLine® Cat.6A armoured patch cable is a robust and powerful Ethernet cable designed for demanding network applications and environments. With armouring for increased mechanical strength, it offers reliable performance in various environments. Thanks to its full shielding and the use of high-quality materials, such as an inner jacket made of SUS204 stainless steel and an outer jacket made of highly elastic PVC, it guarantees high resistance. The InLine® patch cable is equipped with a core insulation layer HDPE - a robust and high-density polyethylene material - that offers excellent insulation properties. This patch cable is ideal for network applications where high quality insulation and signal integrity are required. Overall, armoured patch cords provide a robust solution for environments where traditional cables are not sufficient and ensure a reliable network connection even under demanding conditions. The InLine® patch cable is protected from heavy foot traffic, weather, pests and rodents due to its high quality construction. Ideal for shows, concerts, billboards and advertising signs.

Cable type: Cat.6A U/FTP
Conductor: 28AWG
Insulation material: HDPEJacket: PVC
Outer diameter: 7.3mm (OD)
Connector type: 8P8C (RJ45) with 50µ" gold-plated contacts
Plug type: Fully shielded crimped plug
Inner jacket: SUS204 (stainless steel)
Outer sheath: Highly elastic PVC
Temperature range: Installation 0 to 50 °C, operation -20 to 60 °C
Bandwidth: 500MHz
Rated voltage: 30V
PoE/PoE+/PoE++: (up to 90W)
Force resistance with short pressure: 2000 N
Force resistance with sustained pressure: 500 N
Electrical properties:

Conductor DC resistance: 28.4 O/100m (maximum)
Impedance: 100 O
Capacitance: 5600pF/100m
Propagation delay: 545ns/100m (maximum)
Delay: 45 ns/100m (maximum)

Certification: Passes Fluke DSX 8000 channel test

InLine Patch cable armoured, U/FTP, Cat.6A, black, 30m. Cable length: 30 m, Cable standard: Cat6a, Cable shielding: U/FTP (STP), Connector 1: RJ-45, Connector 2: RJ-45, Connector contacts plating: Gold, Product colour: Black

How to use

Connect the fully shielded RJ‑45 plugs to corresponding shielded ports on network devices or patch panels, ensuring correct grounding of the shield for optimal EMI protection. Route the cable along a protected path to avoid unnecessary bending; maintain the specified minimum bend radius from device manufacturers. Use strain relief or clamps where the cable is exposed to mechanical stress and avoid sharp kinks. For outdoor or temporary event use, secure the cable to prevent tripping hazards and to reduce wear from foot traffic.

Recommendations

For best performance, terminate both ends with shielded connectors and ensure system grounding. Avoid exceeding the recommended temperature range and protect connectors from prolonged moisture exposure. For PoE applications up to 90 W, verify device compatibility and thermal conditions to prevent overheating.
