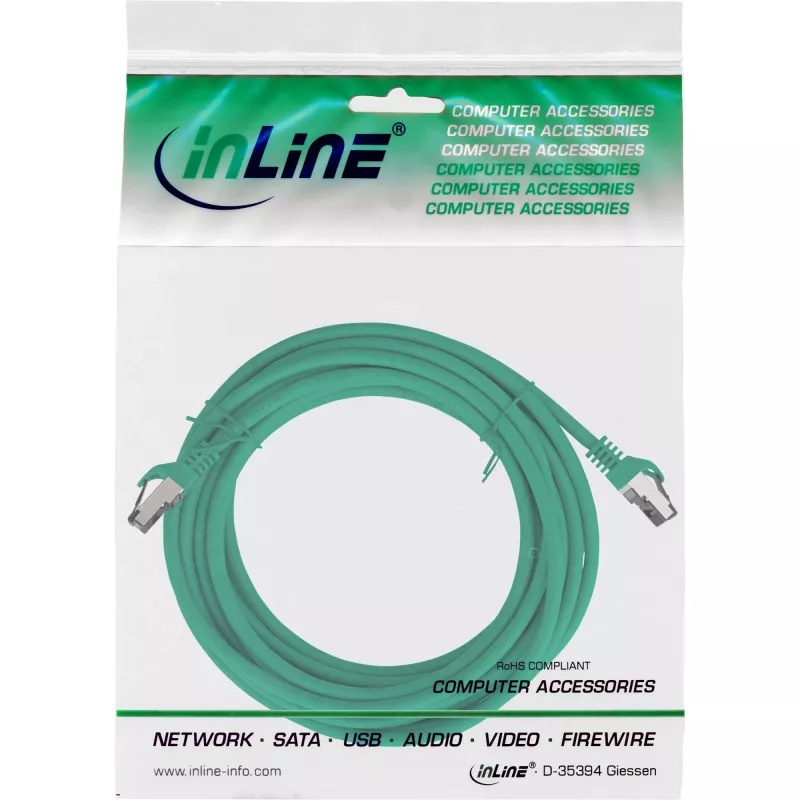

Cavo patch InLine, S/FTP (PiMf), Cat.8.1, 2000MHz, senza alogeni, verde, 10m

The InLine Patch cable S/FTP PiMf Cat.8.1 2000MHz halogen-free green 10m is a high-performance Ethernet patch lead designed for demanding network environments. This 10 m S/FTP (PiMf) Cat.8.1 cable supports transmission frequencies up to 2000 MHz and uses individually shielded pairs with an overall foil to minimise crosstalk and external interference. The halogen-free sheath reduces smoke and corrosive gas emission in case of fire, while gold-plated RJ-45 connectors ensure consistent contact quality and corrosion resistance. The green jacket provides clear visual identification in structured cabling installations.

Advantages

The cable’s S/FTP PiMf construction delivers improved noise immunity and stable high-frequency performance up to 2000 MHz, suitable for high-speed data links. Gold-plated RJ-45 connectors improve contact reliability and reduce signal loss at connection points. The halogen-free outer jacket enhances safety and reduces toxic emissions in the event of a fire. The 10 m length offers flexibility for rack-to-workstation and patch panel connections without additional joins.

Suitable for

• Data centre interconnects and top-of-rack patching
• High-speed LAN backbones and server connections
• Structured cabling where low emission materials are required
• Environments requiring clearly color-coded patching and fault tracing

Key specifications

• Category: Cat.8.1
• Shielding: S/FTP (overall foil with individually foil-screened pairs, PiMf)
• Frequency range: up to 2000 MHz
• Length: 10 m
• Connectors: RJ-45 to RJ-45, gold-plated contacts
• Jacket material: halogen-free
• Color: green

How to use

Install the patch cable by plugging the RJ-45 connectors firmly into the corresponding sockets on network switches, patch panels or network interface cards. Route the cable to avoid sharp bends and excessive mechanical stress; maintain bend radius recommendations typical for Cat.8 cabling. For best performance, avoid running the cable in parallel with high-voltage power lines and keep connectors free of dust before mating.

Recommendations

Use this Cat.8.1 S/FTP cable for short to medium-length high-bandwidth connections where maximum frequency and minimal interference are required. Verify connector seating and perform basic link tests after installation to confirm performance. Store unused cables coiled without tight loops and protect connectors with dust caps when not in use.
