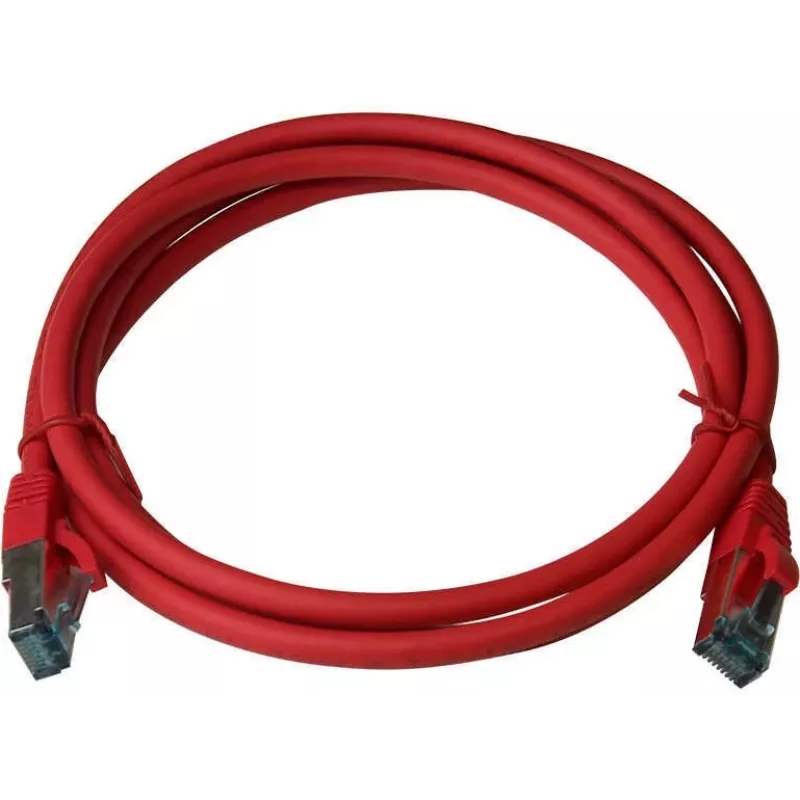

Cavo patch IT-BUDGET Full Copper Premium Cat.6A 500 MHz LSZH PoE+ AWG 26/7 rosso 0,25 m

Experience reliable high-speed network connectivity with the IT-BUDGET Premium Patch Cable. Designed for demanding Ethernet applications, this Cat.6A cable delivers exceptional performance up to 500 MHz, supporting 10 Gigabit Ethernet (10GBASE-T) for future-proof networking. The full copper stranded conductors ensure optimal signal integrity, while the LSZH (Low Smoke Zero Halogen) jacket provides enhanced safety in enclosed spaces. With PoE+ support (IEEE 802.3at), it powers devices like IP cameras and wireless access points directly through the cable. The snagless RJ45 connectors with gold-plated contacts guarantee secure connections and corrosion resistance. Ideal for data centers, server rooms, and professional installations where reliability and performance are critical.

Advantages

Full copper conductors for superior conductivity and signal quality. LSZH jacket reduces toxic smoke in case of fire, making it safe for use in public buildings and offices. Snagless boot design protects the locking tab during installation and removal. Gold-plated contacts ensure long-lasting, corrosion-free connections. Supports PoE+ for flexible device placement without additional power outlets.

Suitable for

• Data centers and server rooms requiring high-speed, reliable connections
• Enterprise networks with 10 Gigabit Ethernet infrastructure
• Power over Ethernet applications such as IP cameras, VoIP phones, and wireless access points
• Installations in environments with strict fire safety regulations (halogen-free)

Key specifications

• Category: Cat.6A (Class EA)
• Bandwidth: 500 MHz
• Conductor: Full copper, stranded (AWG 26/7)
• Jacket: LSZH (Low Smoke Zero Halogen), halogen-free
• PoE Support: PoE+ (IEEE 802.3at)
• Length: 0.25 m
• Color: Red
• Connectors: RJ45 male to RJ45 male, gold-plated contacts
• Shielding: F/UTP (Foiled Twisted Pair)
• Wiring Standard: TIA/EIA-568-B.2
• Impedance: 100 Ohm

Recommendations

For optimal performance, use with Cat.6A compatible switches and network cards. Ensure proper cable management to avoid kinking or sharp bends. This cable is ideal for short patch connections in patch panels or between devices in close proximity.
