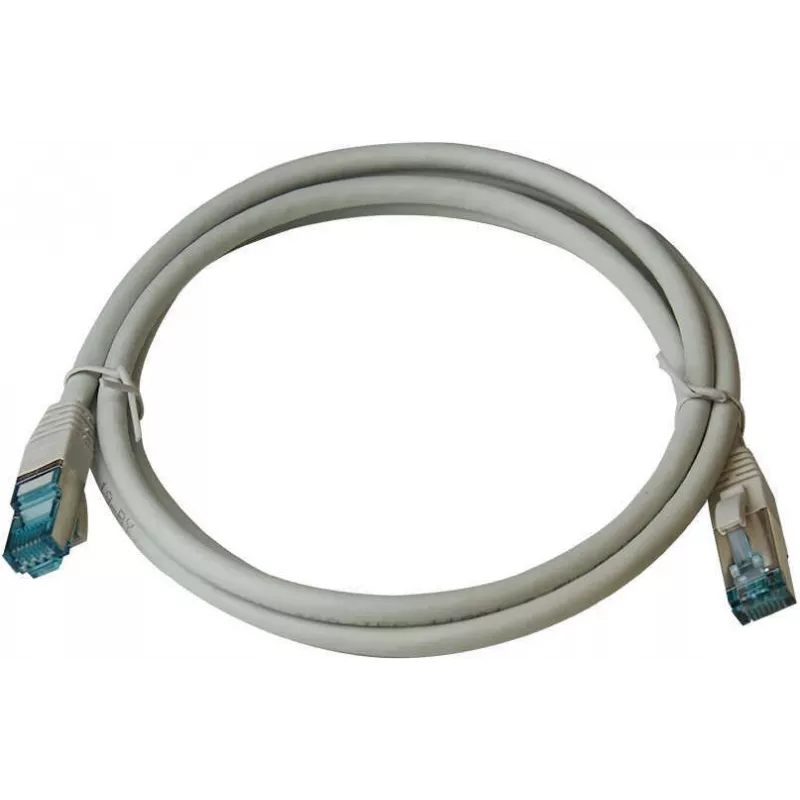

Cavo patch IT-BUDGET Full Copper Premium - Cat.6A - 500 MHz - senza alogeni - PoE+ - AWG 26/7 - grigio - 15 m

The IT-BUDGET Full Copper Premium Patch Cable is a high-performance Cat.6A (Class EA) patch cable designed for demanding network environments. With a bandwidth of 500 MHz and support for 10 Gigabit Ethernet (10GBASE-T), this cable ensures reliable, high-speed data transmission. The full copper conductors (AWG 26/7 stranded) provide excellent conductivity and flexibility, while the LSZH (Low Smoke Zero Halogen) jacket enhances safety in enclosed spaces. Compliant with PoE+ (IEEE 802.3at), it can power devices such as IP cameras and wireless access points. The cable is wired to TIA/EIA-568B standard and features RJ45 male connectors on both ends.

Advantages

Full copper construction ensures superior signal integrity and durability compared to copper-clad aluminum alternatives. The LSZH jacket reduces toxic smoke emissions in case of fire, making it ideal for use in offices, schools, and public buildings. PoE+ support allows simultaneous data and power transmission, simplifying installations.

Suitable for

• Data network cabling in LAN environments
• Connecting network devices such as switches, routers, and servers
• Power over Ethernet applications (PoE+)
• High-bandwidth applications requiring 10 Gbps speeds

Key specifications

• Cable Type: Patch Cable
• Cable Category: Cat.6A (Class EA)
• Bandwidth: 500 MHz
• Data Transfer Rate: Up to 10 Gbps
• Length: 15 m
• Colour: Grey
• Conductor Material: Full Copper
• Conductor Gauge: AWG 26/7
• Conductor Type: Stranded
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• PoE Support: PoE+ (IEEE 802.3at)
• Connector Type: RJ45 Male to RJ45 Male
• Wiring Standard: TIA/EIA-568B
• Number of Conductors: 8 (4 Twisted Pairs)
• Shielding Type: U/UTP (Unshielded Twisted Pair)

Recommendations

For optimal performance, use this cable with Cat.6A compatible network equipment. Ensure proper cable management to avoid kinking or sharp bends. This cable is suitable for permanent installations in structured cabling systems.
