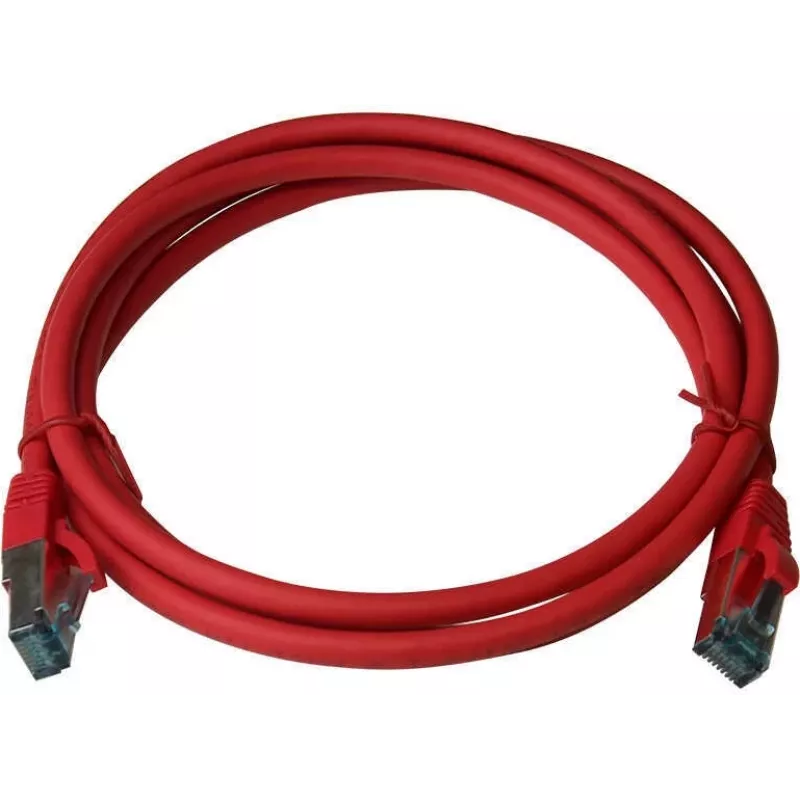

Cavo patch IT-BUDGET Full Copper Premium - Cat.6A - 500 MHz - senza alogeni - PoE+ - AWG 26/7 - rosso - 7,50 m

The IT-BUDGET Full Copper Premium Patch Cable is a high-performance Cat.6A Ethernet cable designed for demanding network environments. With a bandwidth of 500 MHz and support for 10 Gigabit Ethernet (10GBASE-T), this cable ensures reliable, high-speed data transmission. The full copper conductors (AWG 26/7 stranded) provide excellent signal integrity, while the LSZH (Low Smoke Zero Halogen) jacket enhances safety in enclosed spaces. PoE+ compatible, it can power devices such as IP cameras and wireless access points. Ideal for data centers, server rooms, and professional network installations.

Advantages

Full copper conductors ensure superior conductivity and signal quality compared to CCA (Copper Clad Aluminum) cables. The Cat.6A standard supports 10 Gbps speeds over the full 100-meter distance, future-proofing your network. Halogen-free jacket reduces toxic smoke emission in case of fire, making it suitable for public buildings and offices. Stranded conductors provide flexibility for frequent movement and cable management.

Suitable for

• Data centers and server rooms requiring high-speed, reliable connections
• Enterprise networks with 10 Gigabit Ethernet infrastructure
• PoE+ applications such as IP cameras, VoIP phones, and wireless access points
• Installations where safety regulations demand halogen-free materials

Key specifications

• Cable Type: Patch Cable
• Network Category: Cat.6A (Category 6A)
• Bandwidth: 500 MHz
• Data Transfer Rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Conductor Material: Full Copper
• Conductor Gauge: 26 AWG
• Conductor Type: Stranded (7 strands per conductor)
• Cable Construction: Twisted Pair (4 pairs)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• PoE Support: PoE+ (IEEE 802.3at)
• Connector Type: RJ45 Male to RJ45 Male
• Cable Length: 7.5 meters
• Cable Color: Red
• Wiring Standard: T568B
• Impedance: 100 Ohm

Recommendations

For optimal performance, use with Cat.6A compatible switches and network cards. Ensure proper cable management to avoid kinking or sharp bends. This cable is ideal for structured cabling systems requiring high bandwidth and PoE+ support.
