Cavo patch KABELMEISTER Cat.7 S/FTP, 0,15m, bianco, guaina TPE senza alogeni, 10 Gbps

Experience 10 Gigabit Ethernet over a short 0.15 m link with this Cat.7 S/FTP patch cable from KABELMEISTER. The fully shielded PiMF construction (pairs in metal foil plus overall braid) virtually eliminates crosstalk and EMI, while the stranded 26 AWG copper conductors and gold-plated RJ45 plugs ensure a stable, high-bandwidth connection for demanding network segments.

Overview

This white patch cable is built for high-density patching and short device interconnects where signal integrity and flexibility are critical. The Cat.7 (Class F) rating supports up to 600 MHz bandwidth and 10GBASE-T, making it suitable for data centers, server rooms, and high-speed workstation links. Its halogen-free TPE jacket is highly flexible, easy to route, and safe for use in enclosed spaces.

What stands out

• Cat.7 S/FTP shielding: individual foil on each pair plus overall braid for maximum noise immunity.
• 10 Gbps data transfer rate with 600 MHz bandwidth – ideal for 10GBASE-T networks.
• Halogen-free TPE jacket: flexible, durable, and low smoke/toxicity in case of fire.
• Gold-plated RJ45 connectors (50µ") resist corrosion and ensure reliable contacts.
• Short 0.15 m length reduces clutter and improves airflow in high-density racks.

Technical details

• Cable category: Cat.7 (Class F), backward compatible with Cat.6a/6/5e.
• Shielding: S/FTP (PiMF) – pairs in metal foil, overall braided shield.
• Conductor: 100% oxygen-free copper (OFC), AWG 26/7 stranded.

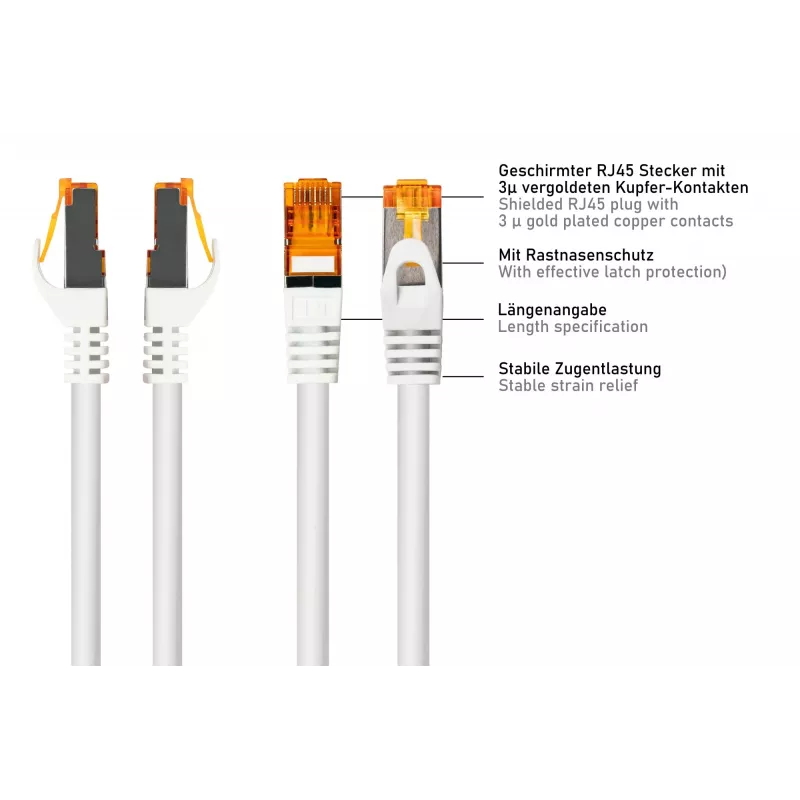

• Connectors: RJ45 male to RJ45 male, 50µ" gold-plated contacts.
• Jacket: TPE, halogen-free, highly flexible.
• Length: 0.15 m.
• Bandwidth: up to 600 MHz.
• Data rate: 10 Gbps (10GBASE-T).
• Wiring: TIA/EIA 568B.
• Standards: ISO/IEC 11801, EN 50173, IEC 60332-1 (LSZH).
• Outer diameter: approx. 6.2 mm.
• Operating temperature: -20°C to +60°C.

Our verdict

A top-tier short patch cable for 10G networks, combining robust shielding, flexible halogen-free jacket, and gold-plated connectors in a compact 0.15 m length. Perfect for high-density patching and critical short links.
