Cavo patch KABELMEISTER Cat.7 S/FTP, guaina TPE, senza alogeni, verde, 0,5m

Where standard PVC patch cables stiffen and emit toxic fumes under fire, this KABELMEISTER Cat.7 cable stays supple and safe. The halogen-free TPE jacket remains flexible even in cold server rooms, making high-density patching less of a wrestling match. At 0.5 m, it bridges adjacent ports on patch panels, switches, and wall outlets without leaving slack that tangles or stresses connectors.

Highlights

• Genuine Cat.7 raw cable (Class F) with S/FTP shielding: each pair is individually foil-wrapped (PiMF) and the entire bundle is protected by a braided shield, virtually eliminating alien crosstalk.
• High-flex TPE jacket: halogen-free, LSZH, and remains flexible across a wide temperature range for easy routing in tight spaces.

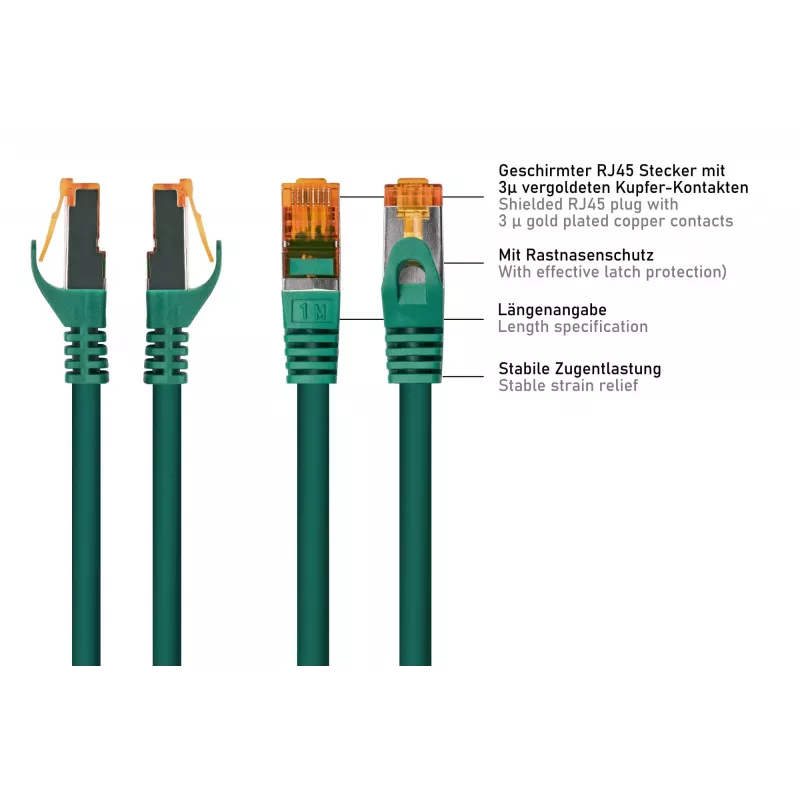

• Gold-plated RJ45 connectors (50µ") with snagless molded boots for reliable contact and long-term durability.
• Supports 10GBASE-T up to 600 MHz and is backward compatible with Cat.6A, Cat.6, Cat.5e, and Cat.5 networks.
• Stranded 26/7 AWG oxygen-free copper conductors deliver excellent signal integrity and support PoE, PoE+, and PoE++ (IEEE 802.3af/at/bt).

In daily use

The 0.5 m length is perfect for patching between adjacent ports or connecting devices that sit close together, such as a switch to a patch panel or a media player to a wall outlet. The green color aids in quick identification of specific network segments, reducing troubleshooting time. The snagless boot protects the locking tab when unplugging in dense racks, while the flexible jacket allows the cable to lie flat without kinking.

Full specifications

• Cable type: Patch cable
• Raw cable category: Cat.7 (Class F)
• Channel performance: Cat.6A (Class EA)
• Shielding: S/FTP (PiMF - pairs in metal foil, overall braided shield)
• Connector type: RJ45 (8P8C) both ends
• Connector plating: Gold-plated contacts (50µ")
• Cable length: 0.5 m (50 cm)
• Jacket material: TPE (thermoplastic elastomer)
• Jacket features: Highly flexible, halogen-free (LSZH)
• Colour: Green
• Conductor material: Oxygen-free copper (OFC)
• Conductor gauge: AWG 26/7 (stranded)
• Bandwidth: Up to 10 Gigabit Ethernet (10GBASE-T)
• Frequency: Up to 600 MHz
• Wiring standard: TIA/EIA-568B.2
• PoE support: PoE, PoE+, PoE++ (IEEE 802.3af/at/bt)
• Outer diameter: Approx. 6.2 mm
• Operating temperature: -20°C to 60°C
• Certifications: RoHS, CE

Final note

For short, safe, and tidy connections in high-density environments, this green Cat.7 patch cable delivers both performance and peace of mind.
