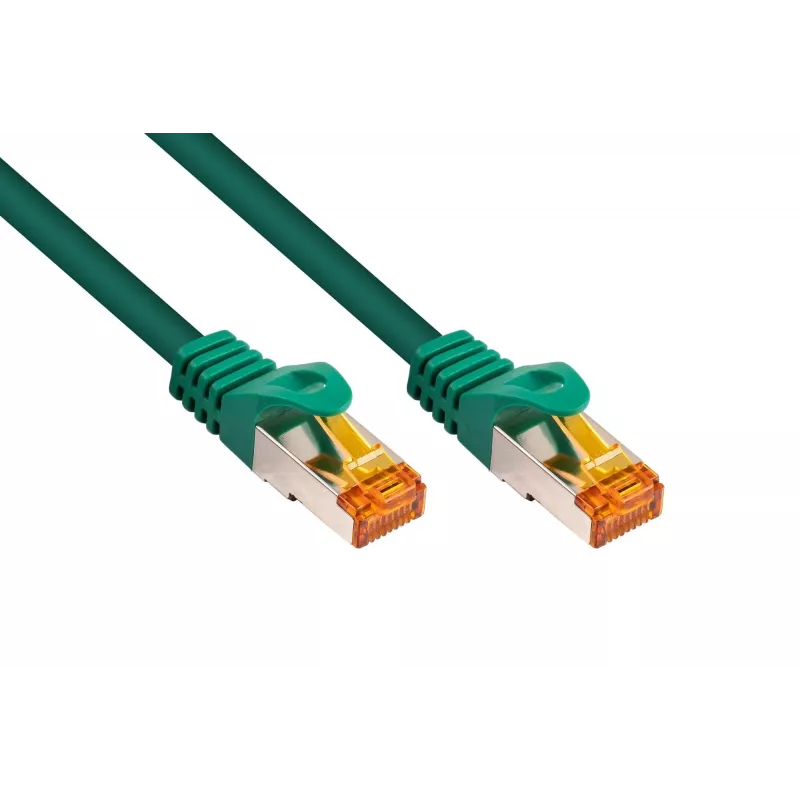

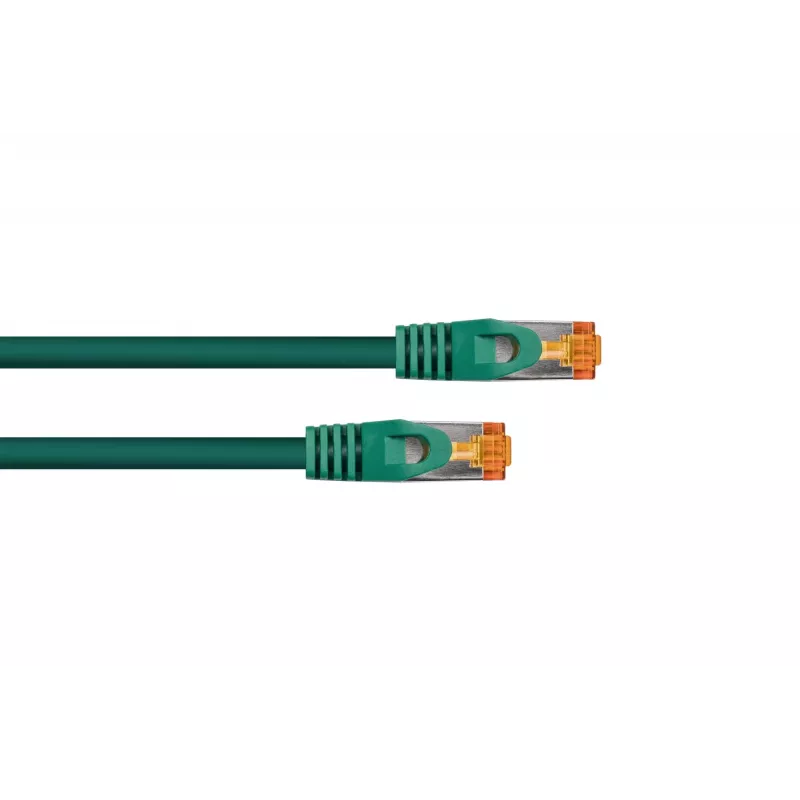

Cavo patch KABELMEISTER Cat.7 S/FTP, RJ45, guaina TPE, verde, 5m

With a 600 MHz bandwidth and 10 Gigabit Ethernet support, this KABELMEISTER Cat.7 patch cable delivers high-speed, reliable network connections. The S/FTP shielding (PiMF) with gold-plated RJ45 connectors ensures excellent protection against interference, making it ideal for demanding applications like data centers, server rooms, and high-performance home networks.

Overview

This 5-meter green patch cable features a flexible TPE jacket that is halogen-free and LSZH, providing safety and durability. The stranded oxygen-free copper conductors (AWG 26/7) offer excellent conductivity and flexibility, while the robust construction ensures a long service life. It is backward compatible with Cat.6a, Cat.6, Cat.5e, and Cat.5 standards, and supports Power over Ethernet up to PoE++ (4PPoE).

What stands out

• Cat.7 standard with 600 MHz bandwidth for 10GBASE-T networks
• S/FTP shielding (PiMF) with overall braid for superior EMI protection

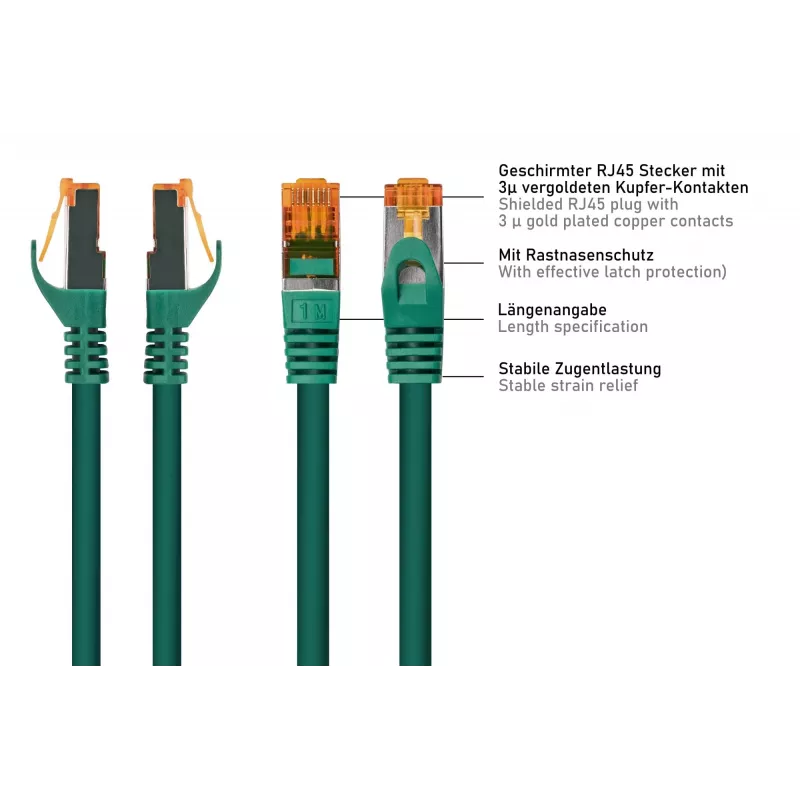

• Gold-plated RJ45 connectors (50µm) for reliable connections
• Flexible TPE jacket, halogen-free and LSZH for safety
• Stranded OFC conductors for high flexibility and performance
• Supports Power over Ethernet up to PoE++ (4PPoE)
• Backward compatible with previous cable categories

Technical details

• Connector type: RJ45 (8P8C) male to RJ45 (8P8C) male
• Cable category: Cat.7 (Class F)
• Shielding: S/FTP (PiMF)
• Jacket material: TPE (Thermoplastic Elastomer)
• Jacket properties: LSZH (Low Smoke Zero Halogen)
• Colour: Green
• Length: 5 m
• Data rate: Up to 10 Gbps
• Bandwidth: 600 MHz
• Conductor material: Oxygen-free copper (OFC)
• Conductor gauge: AWG 26/7 (stranded)
• Connector plating: Gold (50µm)
• Wiring standard: TIA/EIA 568B
• Operating temperature: -20°C to +60°C

Our verdict

The KABELMEISTER Cat.7 patch cable combines high-speed performance with robust shielding and a safe, flexible jacket. It is an excellent choice for professional and demanding home network environments.
