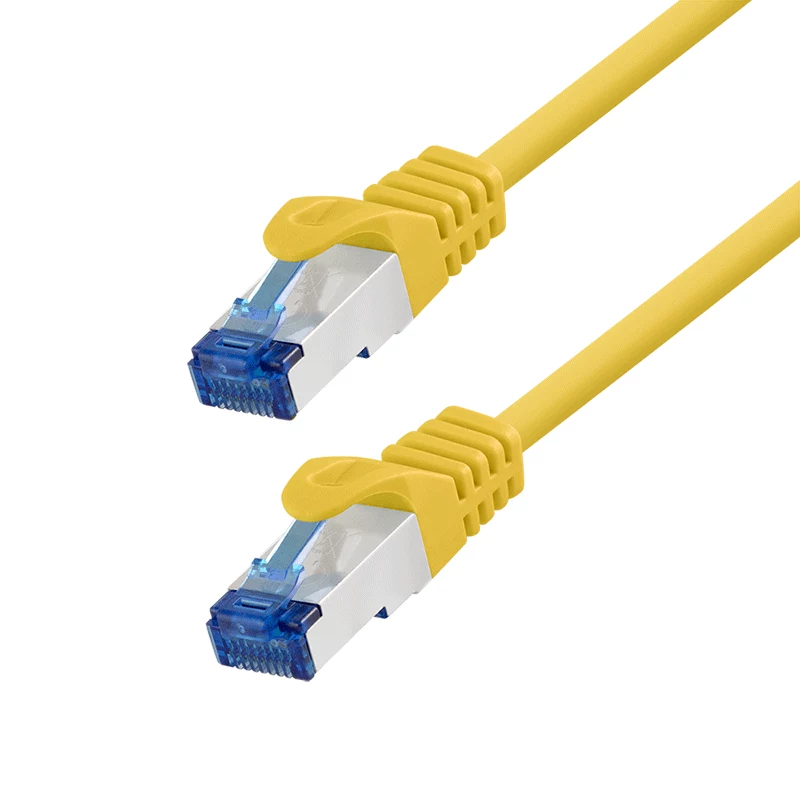

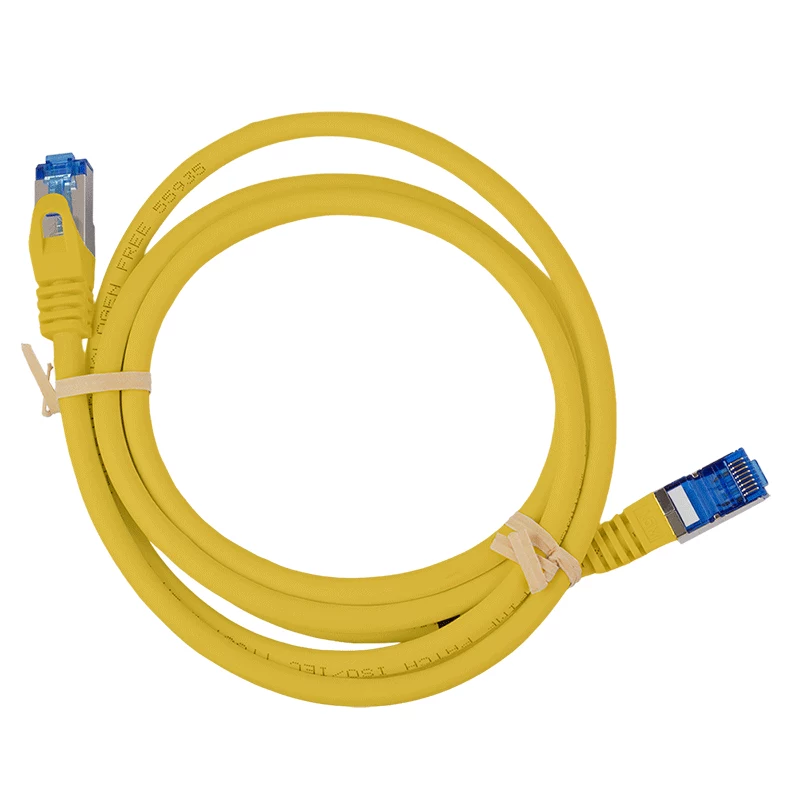

Cavo patch LogiLink Cat.6A S/FTP LSZH, CCA, 5 m, giallo, EconLine

High-performance Cat.6A patch cable engineered for 10 Gigabit Ethernet, delivering up to 500 MHz bandwidth over a 5-meter run. The S/FTP shielding—individual foil around each twisted pair plus an overall braid—virtually eliminates alien crosstalk and EMI, ensuring error-free transmission in dense network environments. The low-smoke zero-halogen (LSZH) jacket enhances safety by reducing toxic fumes and smoke in case of fire, while the gold-plated RJ45 connectors provide reliable, corrosion-resistant contacts. Ideal for data centers, server rooms, and high-density office cabling where performance and safety are paramount.

Advantages

This EconLine cable offers a cost-effective solution without compromising on Cat.6A performance. The CCA conductor keeps the price competitive while maintaining excellent signal integrity for shorter runs. The snagless design protects the locking tab during installation, and the yellow color aids in quick identification and organization. With a stranded conductor, the cable remains flexible and easy to route, even in tight spaces.

Suitable for

• 10GBASE-T networks and high-speed data transfer
• Data centers and server rooms requiring reliable, high-density cabling
• Office environments where low-smoke, halogen-free materials are mandated
• Connecting switches, routers, patch panels, and network storage devices
• Backward-compatible with Cat.6, Cat.5e, and Cat.5 equipment

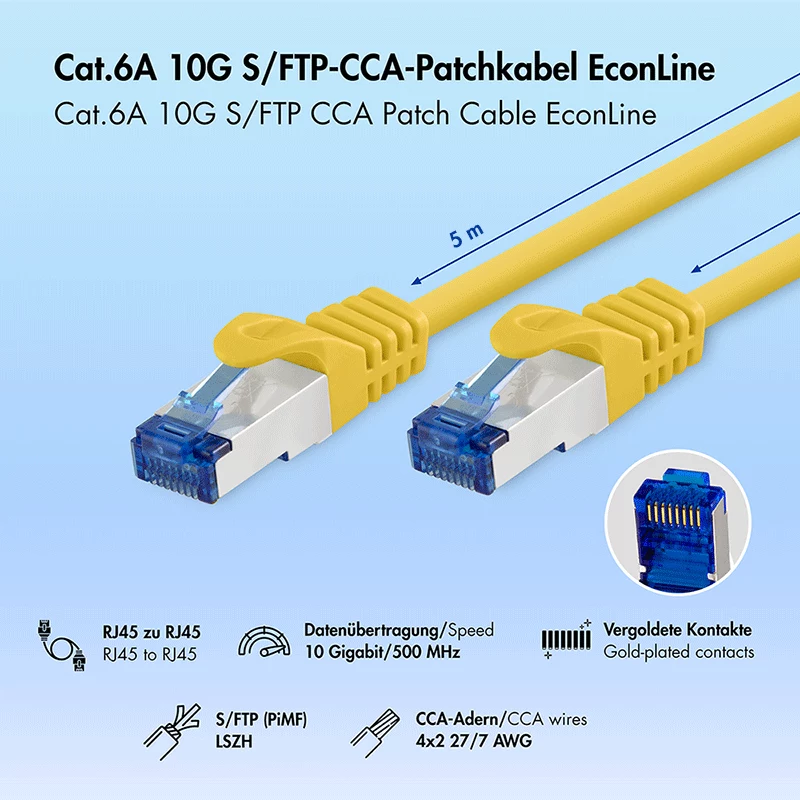

Key specifications

• Category: Cat.6A (Class EA)
• Shielding: S/FTP (PiMF, overall braid)
• Conductor: Copper Clad Aluminum (CCA), 26 AWG, stranded
• Jacket: LSZH (Low Smoke Zero Halogen)
• Length: 5.0 m
• Color: Yellow
• Connectors: RJ45 male to RJ45 male, gold-plated (50µ")
• Bandwidth: 500 MHz
• Data rate: 10 Gbps
• Standards: TIA/EIA-568B, ISO/IEC 11801, EN 50173

Recommendations

For optimal performance, avoid sharp bends and excessive tension. Use cable management accessories to maintain bend radius. This cable is ideal for fixed installations where flexibility and cost are key considerations.
