Cavo patch METZ CONNECT Cat.6 Ultraflex500 VoIP AWG 26 5,0 m nero

The METZ CONNECT Patch Cable Cat.6 Ultraflex500 VoIP is a high-performance network cable designed for demanding Voice over IP and data applications. With its exceptional flexibility and robust construction, this patch cable ensures reliable connectivity in both office and industrial environments.

Advantages

Ultraflex500 technology provides outstanding flexibility, making it ideal for frequent movement and tight installation spaces. The cable supports Power over Ethernet (PoE, PoE+, 4PPoE/PoE++) for powering devices like IP phones and cameras. Its LSZH (Low Smoke Zero Halogen) jacket enhances safety by reducing toxic emissions in case of fire.

Suitable for

• Voice over IP (VoIP) telephony
• 10 Gigabit Ethernet (10GBASE-T) over short distances
• 1 Gigabit Ethernet (1GBASE-T) networks
• Data centers and server rooms
• Industrial automation and control systems

Key specifications

• Cable Type: Patch Cable
• Category: Cat.6

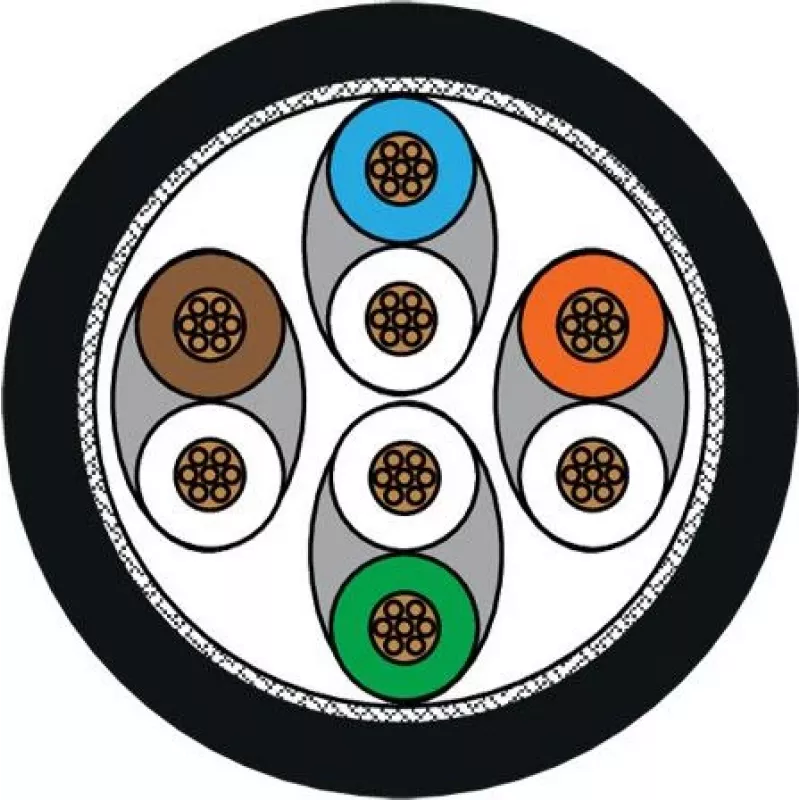

• Shielding: U/UTP (Unshielded)
• Conductor Gauge: AWG 26/7 (Stranded)
• Conductor Material: Bare Copper
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Color: Black
• Connector Type: RJ45 (8P8C) on both ends
• Wiring Standard: TIA/EIA-568B
• Data Transfer Rate: Up to 10 Gbps
• Bandwidth: 250 MHz
• PoE Support: Yes (PoE, PoE+, 4PPoE/PoE++)
• Halogen Free: Yes
• Flame Retardancy: IEC 60332-1-2
• Operating Temperature: -20°C to +60°C
• Compliance: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Connector Plating: Gold-plated contacts

Recommendations

For optimal performance in high-speed networks, pair this cable with compatible Cat.6 switches and patch panels. Ensure proper cable management to maintain signal integrity.
