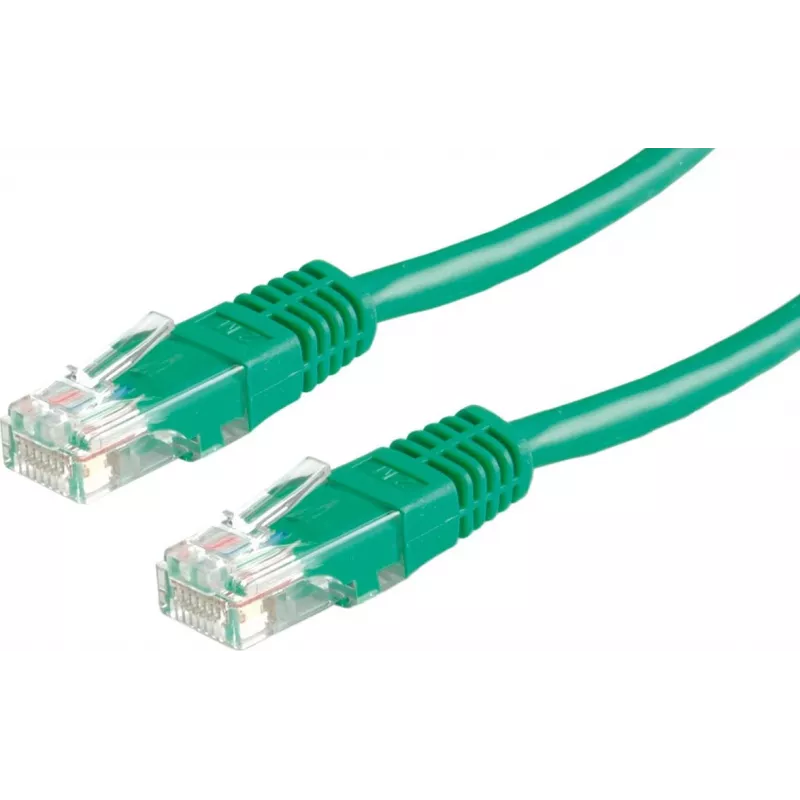

Cavo patch SECOMP STANDARD UTP Cat.6 (Class E), verde, 2 m (S1742)

This Cat.6 UTP patch cable delivers reliable Gigabit Ethernet performance with a bandwidth of up to 250 MHz. Its green LSZH jacket and gold-plated contacts ensure safe, high-speed connectivity for demanding network environments.

Advantages

Experience stable data transfer rates up to 1000 Mbps with minimal crosstalk. The snagless molded boot protects the locking tab during installation, while the LSZH jacket reduces toxic smoke in case of fire, making it ideal for public buildings.

Suitable for

• Connecting computers to switches, routers, and patch panels
• Gigabit Ethernet networks in offices and data centers
• Installations requiring low-smoke, halogen-free cabling
• Structured cabling systems compliant with ISO/IEC 11801

Key specifications

• Category: Cat.6 (Class E)
• Length: 2 m
• Colour: Green
• Connectors: RJ45 (8P8C) male to RJ45 (8P8C) male, gold-plated contacts
• Wiring: TIA/EIA 568B, 4 twisted pairs (8 conductors)
• Conductor: Stranded copper, AWG 24/7
• Jacket: LSZH (Low Smoke Zero Halogen)
• Boot: Molded, snagless
• Bandwidth: Up to 250 MHz
• Data transfer rate: Up to 1000 Mbps (Gigabit Ethernet)
• Standards: ISO/IEC 11801, EN 50173, TIA/EIA-568-C.2
• Outer diameter: Approx. 5.9 mm
• Operating temperature: -20°C to +60°C

Recommendations

For optimal performance, pair this cable with Cat.6 compliant hardware and avoid sharp bends. Ideal for high-density patching where snagless design and LSZH safety are priorities.
